Releasing the Inner Rail

Each inner rail has a locking latch. This latch prevents the server from coming completely
out of the rack when when the chassis is pulled out for servicing.
To mount the rail onto the chassis, first release the inner rail from the outer rails.
1. Pull the inner rail out of the outer rail until it is fully extended as illustrated below.
2. Press the locking tab down to release the inner rail.
3. Pull the inner rail all the way out.

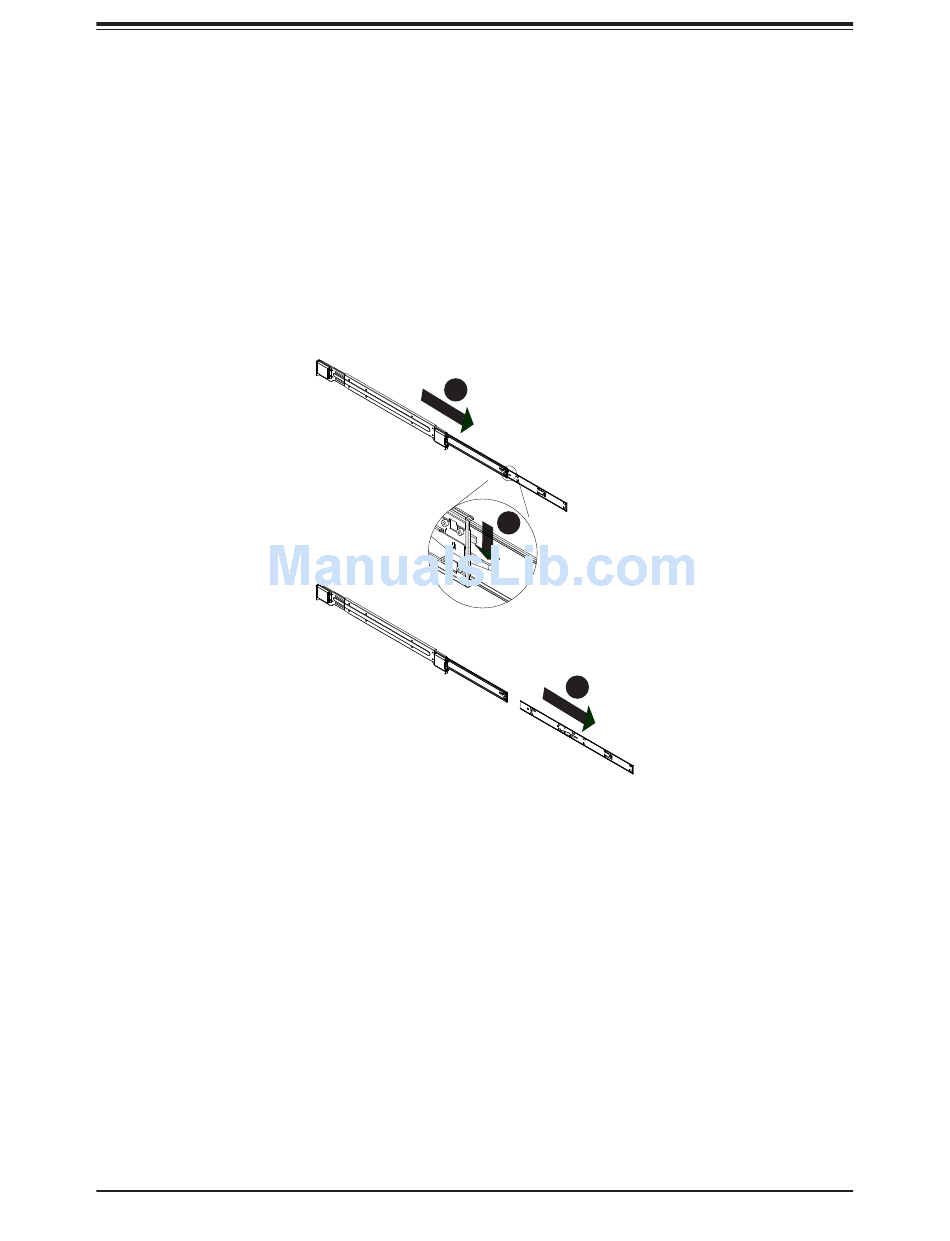

Figure 2-2. Extending and Releasing the Inner Rail
Chapter 2 Installation in a Rack
1
2
3
23
