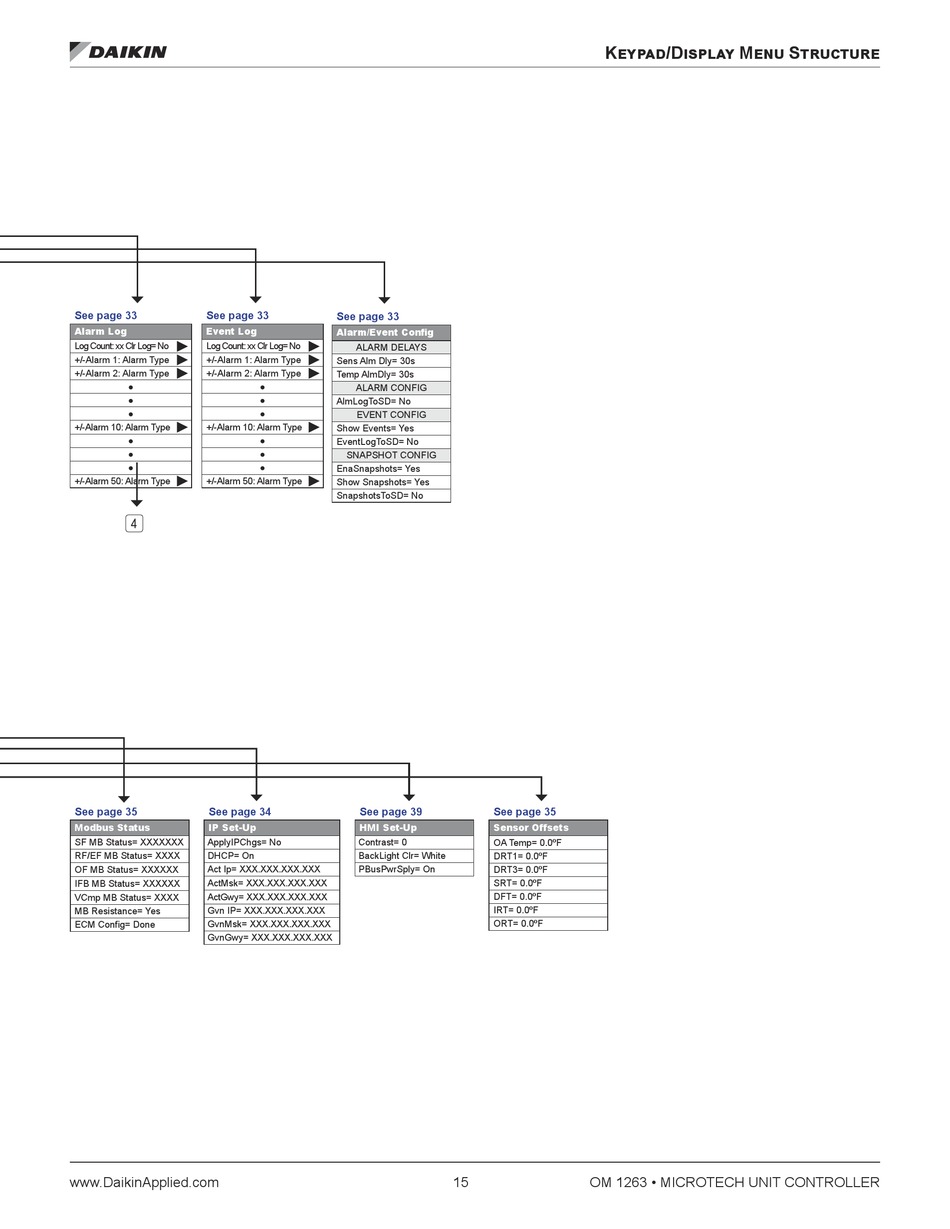

Daikin MicroTech III DPS Installation And Maintenance Manual page 15

See page 33 See page 33
Alarm Log Event Log
►
Log Count: xx Clr Log= No Log Count: xx Clr Log= No
►
+/-Alarm 1: Alarm Type +/-Alarm 1: Alarm Type
►
+/-Alarm 2: Alarm Type +/-Alarm 2: Alarm Type
●
●
●
►
+/-Alarm 10: Alarm Type +/-Alarm 10: Alarm Type
●
●
●
►
+/-Alarm 50: Alarm Type +/-Alarm 50: Alarm Type
4
See page 35 See page 34
Modbus Status IP Set-Up
SF MB Status= XXXXXXX ApplyIPChgs= No
RF/EF MB Status= XXXX DHCP= On
OF MB Status= XXXXXX Act Ip= XXX .XXX .XXX .XXX
IFB MB Status= XXXXXX ActMsk= XXX .XXX .XXX .XXX
VCmp MB Status= XXXX ActGwy= XXX .XXX .XXX .XXX
Gvn IP= XXX .XXX .XXX .XXX
MB Resistance= Yes
ECM Config= Done GvnMsk= XXX .XXX .XXX .XXX
GvnGwy= XXX .XXX .XXX .XXX
www .DaikinApplied .com
See page 33
Alarm/Event Config
►
ALARM DELAYS
►
Sens Alm Dly= 30s
►
Temp AlmDly= 30s
●
ALARM CONFIG
●
AlmLogToSD= No
●
EVENT CONFIG
►
Show Events= Yes
●
EventLogToSD= No
●
SNAPSHOT CONFIG
●
EnaSnapshots= Yes
►
Show Snapshots= Yes
SnapshotsToSD= No
See page 39
HMI Set-Up
Contrast= 0
BackLight Clr= White
PBusPwrSply= On
Keypad/Display Menu Structure
See page 35
Sensor Offsets
OA Temp= 0 .0ºF
DRT1= 0 .0ºF
DRT3= 0 .0ºF
SRT= 0 .0ºF
DFT= 0 .0ºF
IRT= 0 .0ºF
ORT= 0 .0ºF
15 OM 1263 • MICROTECH UNIT CONTROLLER
