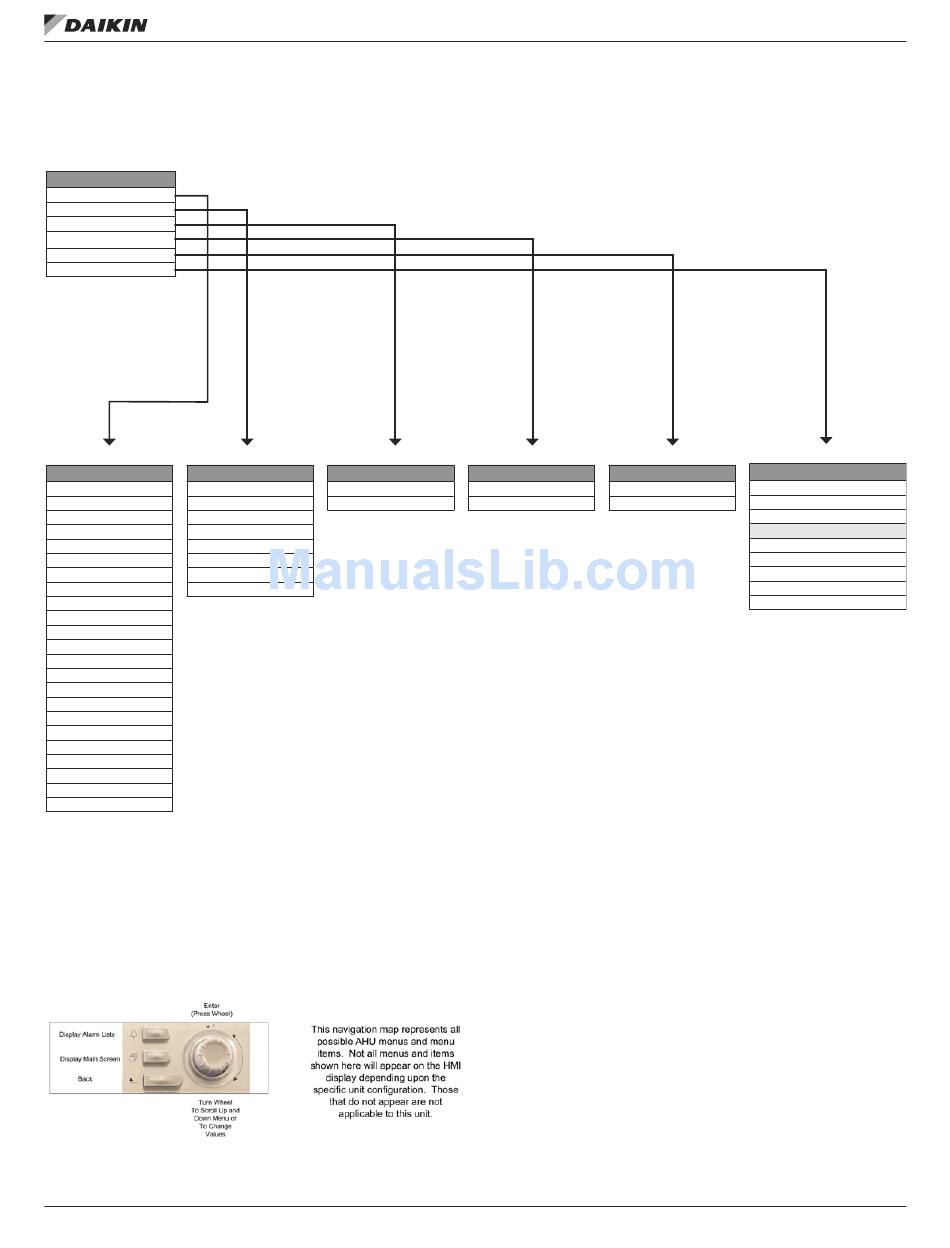

Figure 8: View/Set Unit – Keypad/Display Menu Structure
See page 18 — 21
View/Set Unit
►
Unit Status/Settings
►
Temperatures
►
Flow Status
►
SAF Spd Control
►
RF/EF Control
►
Date/Time/Schedules
See page 18 — 19 See page 20
Unit Status/Settings Temperatures
System Mode= Local OA Temp= XXX°F
Heat/Cool In= Heat/Cool DRT1= XXX°F
CmpIntrLock= _________ DRT3= XXX°F
CmpCapIn= ___________ SRT= XXX°F
SAFSSIn= ____________ DFT= XXX°F
SAFCapIn= ___________ IRT= XXX°F
EAFSSIn= ____________ ORT= XXX°F
EAFCapIn= ___________ INVCompTemp= XXX°F
RhtVlvIn= ____________
OADCapIn= ___________
AlmResetIn=__________
Dehum Status= ________
Clg Status= ___________
Htg Status= ___________
SuplHtgStatus= ________
Econo Status= _________
Clg Capacity= XXX%
Htg Capacity= XXX%
Supl Htg Cap= XXX%
Reheat Cap= XXX%
SAF Speed= XXX%
RF/EF Cap= XXX%
OAD/Econo Cap=XXX%
OM 1263 • MICROTECH UNIT CONTROLLER
See page 20 See page 20
Flow Status SAF Speed Control
Supply Fan= __________ SAF Speed= XXX%
Ret/Exh Fan= _________ Speed Cmd= XXX%
12
Keypad/Display Menu Structure
See page 21
See page 20
Date/Time/Schedules
RF/EF Control
Time= hh:mm:ss
RF/EF Cap= XXX%
Date= MM/DD/YY
RF/EF Spd Cmd= XXX%
UTC Diff= -60min
DAYLIGHT SAVINGS
DLS Strt Mon= Mar
DLS Strt Wk= 2nd Week
DLS End Mon= Nov
DLS End Wk= 1st Week
DLS Enable= Auto
