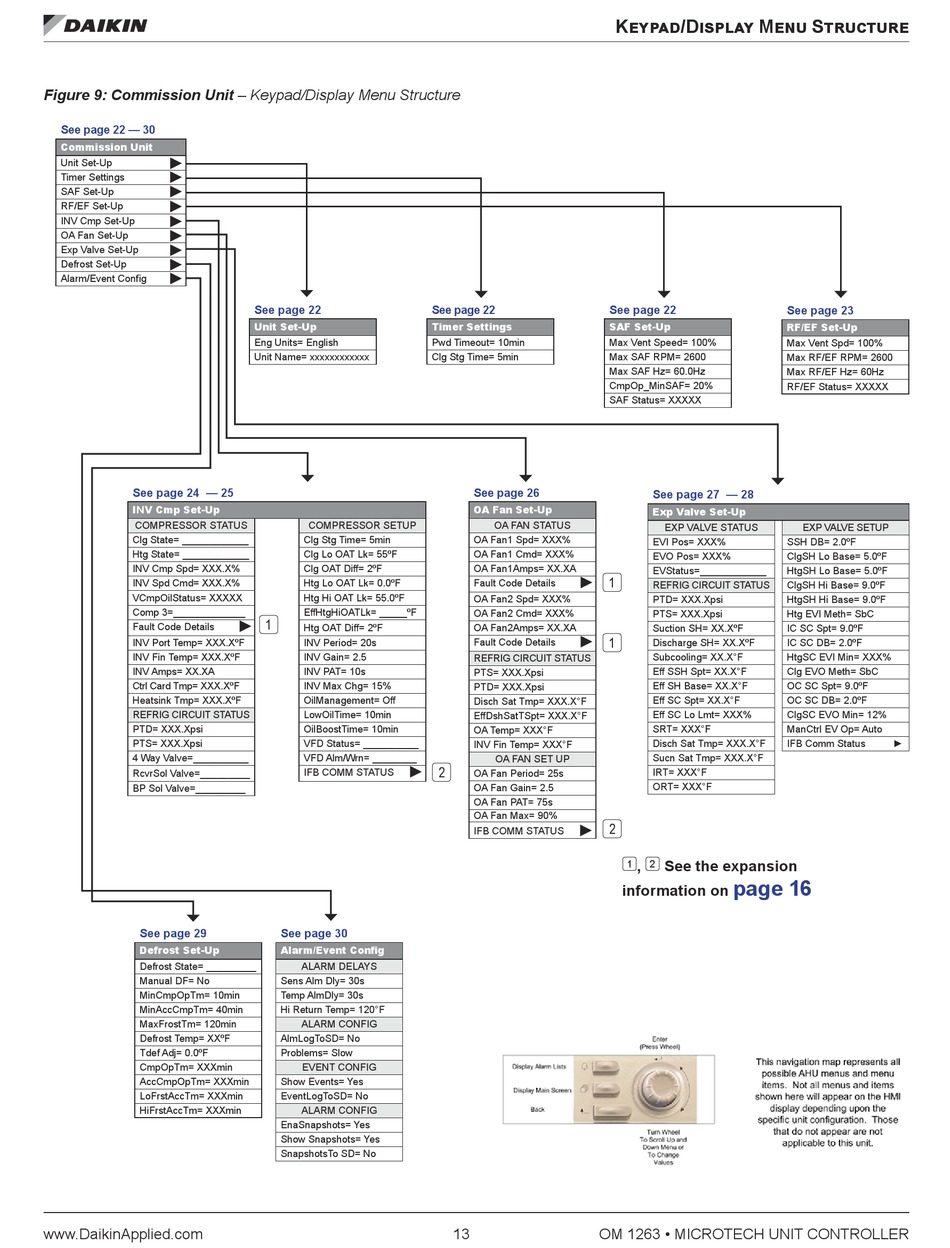

Figure 9: Commission Unit – Keypad/Display Menu Structure
See page 22 — 30
Commission Unit
►
Unit Set-Up
►
Timer Settings
►
SAF Set-Up
►
RF/EF Set-Up
►
INV Cmp Set-Up
►
OA Fan Set-Up
►
Exp Valve Set-Up
►
Defrost Set-Up
►
Alarm/Event Config
See page 24 — 25
INV Cmp Set-Up
COMPRESSOR STATUS
Clg State= ____________
Htg State= ____________
INV Cmp Spd= XXX .X%
INV Spd Cmd= XXX .X%
VCmpOilStatus= XXXXX
Comp 3=_____________
Fault Code Details
INV Port Temp= XXX .XºF
INV Fin Temp= XXX .XºF
INV Amps= XX .XA
Ctrl Card Tmp= XXX .XºF
Heatsink Tmp= XXX .XºF
REFRIG CIRCUIT STATUS
PTD= XXX .Xpsi
PTS= XXX .Xpsi
4 Way Valve=__________
RcvrSol Valve=_________
BP Sol Valve=_________
See page 29
Defrost Set-Up
Defrost State= _________
Manual DF= No
MinCmpOpTm= 10min
MinAccCmpTm= 40min
MaxFrostTm= 120min
Defrost Temp= XXºF
Tdef Adj= 0 .0ºF
CmpOpTm= XXXmin
AccCmpOpTm= XXXmin
LoFrstAccTm= XXXmin
HiFrstAccTm= XXXmin
www .DaikinApplied .com
See page 22
Unit Set-Up
Eng Units= English
Unit Name= xxxxxxxxxxxx
COMPRESSOR SETUP
Clg Stg Time= 5min
Clg Lo OAT Lk= 55ºF
Clg OAT Diff= 2ºF
Htg Lo OAT Lk= 0 .0ºF
Htg Hi OAT Lk= 55 .0ºF
EffHtgHiOATLk= _____ºF
► 1
Htg OAT Diff= 2ºF
INV Period= 20s
INV Gain= 2 .5
INV PAT= 10s
INV Max Chg= 15%
OilManagement= Off
LowOilTime= 10min
OilBoostTime= 10min
VFD Status= __________
VFD Alm/Wrn= ________
►
IFB COMM STATUS
See page 30
Alarm/Event Config
ALARM DELAYS
Sens Alm Dly= 30s
Temp AlmDly= 30s
Hi Return Temp= 120°F
ALARM CONFIG
AlmLogToSD= No
Problems= Slow
EVENT CONFIG
Show Events= Yes
EventLogToSD= No
ALARM CONFIG
EnaSnapshots= Yes
Show Snapshots= Yes
SnapshotsTo SD= No
See page 22 See page 22
Timer Settings SAF Set-Up
Pwd Timeout= 10min Max Vent Speed= 100%
Clg Stg Time= 5min Max SAF RPM= 2600
Max SAF Hz= 60.0Hz
CmpOp_MinSAF= 20%
SAF Status= XXXXX
See page 26
OA Fan Set-Up
OA FAN STATUS
OA Fan1 Spd= XXX%
OA Fan1 Cmd= XXX%
OA Fan1Amps= XX .XA
►
1
Fault Code Details
OA Fan2 Spd= XXX%
OA Fan2 Cmd= XXX%
OA Fan2Amps= XX .XA
►
1
Fault Code Details
REFRIG CIRCUIT STATUS
PTS= XXX .Xpsi
PTD= XXX .Xpsi
Disch Sat Tmp= XXX .X°F
EffDshSatTSpt= XXX.X°F
OA Temp= XXX°F
INV Fin Temp= XXX°F
OA FAN SET UP
2
OA Fan Period= 25s
OA Fan Gain= 2 .5
OA Fan PAT= 75s
OA Fan Max= 90%
►
2
IFB COMM STATUS
13 OM 1263 • MICROTECH UNIT CONTROLLER
Keypad/Display Menu Structure
See page 23
RF/EF Set-Up
Max Vent Spd= 100%
Max RF/EF RPM= 2600
Max RF/EF Hz= 60Hz
RF/EF Status= XXXXX
See page 27 — 28
Exp Valve Set-Up
EXP VALVE STATUS
EVI Pos= XXX% SSH DB= 2 .0ºF
EVO Pos= XXX% ClgSH Lo Base= 5 .0ºF
EVStatus=____________ HtgSH Lo Base= 5 .0ºF
REFRIG CIRCUIT STATUS ClgSH Hi Base= 9 .0ºF
PTD= XXX .Xpsi HtgSH Hi Base= 9 .0ºF
PTS= XXX .Xpsi Htg EVI Meth= SbC
Suction SH= XX .XºF IC SC Spt= 9 .0ºF
Discharge SH= XX .XºF IC SC DB= 2 .0ºF
Subcooling= XX .X°F HtgSC EVI Min= XXX%
Eff SSH Spt= XX.X°F Clg EVO Meth= SbC
Eff SH Base= XX.X°F OC SC Spt= 9 .0ºF
Eff SC Spt= XX.X°F OC SC DB= 2 .0ºF
Eff SC Lo Lmt= XXX% ClgSC EVO Min= 12%
SRT= XXX°F ManCtrl EV Op= Auto
Disch Sat Tmp= XXX .X°F IFB Comm Status
Sucn Sat Tmp= XXX .X°F
IRT= XXX°F
ORT= XXX°F
1, 2 See the expansion
page 16
information on
EXP VALVE SETUP
►
