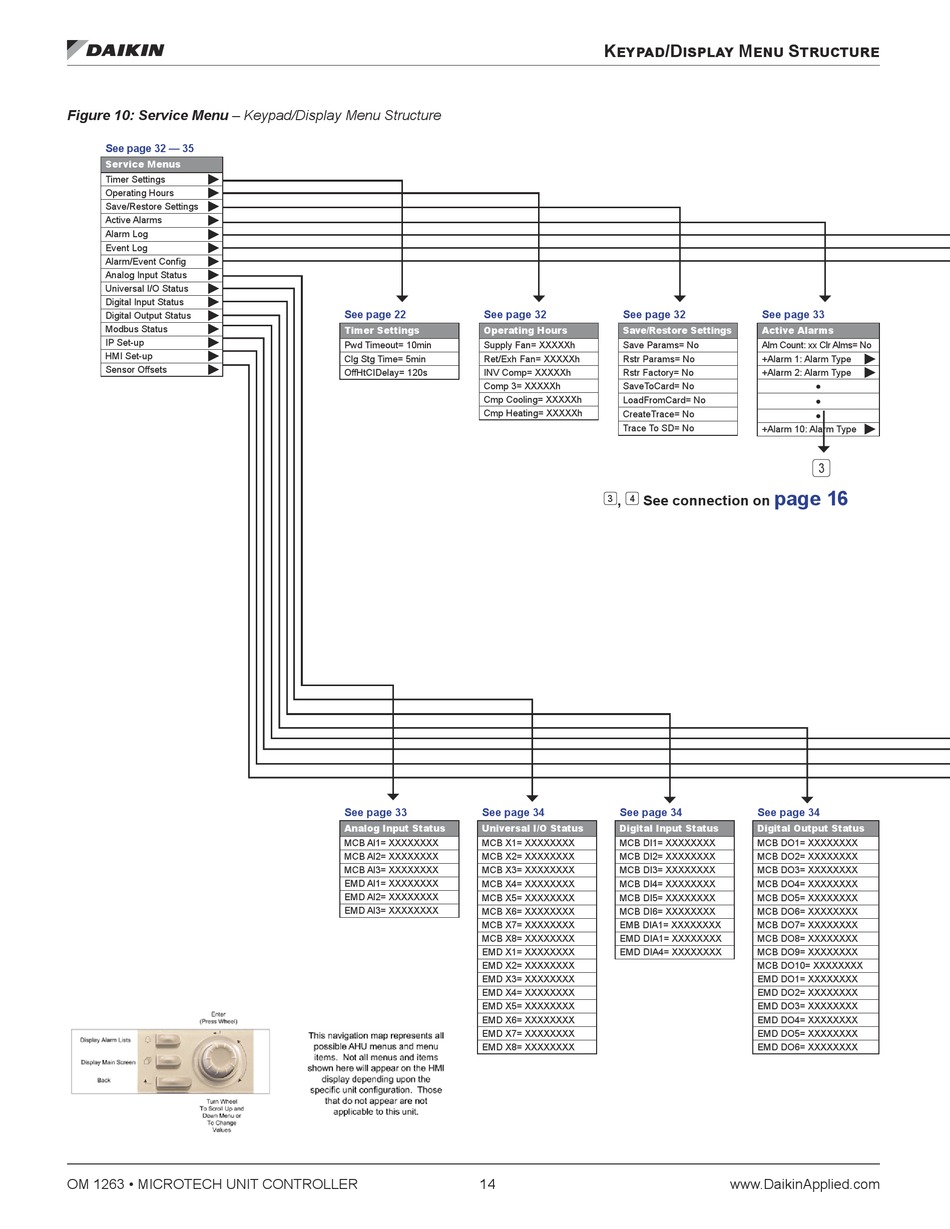

Figure 10: Service Menu – Keypad/Display Menu Structure
See page 32 — 35
Service Menus
►
Timer Settings
►
Operating Hours
►
Save/Restore Settings
►
Active Alarms
►
Alarm Log
►
Event Log
►
Alarm/Event Config
►
Analog Input Status
►
Universal I/O Status
►
Digital Input Status
►
Digital Output Status
►
Modbus Status
►
IP Set-up
►
HMI Set-up
►
Sensor Offsets
OM 1263 • MICROTECH UNIT CONTROLLER
See page 22 See page 32
Timer Settings Operating Hours
Pwd Timeout= 10min Supply Fan= XXXXXh
Clg Stg Time= 5min Ret/Exh Fan= XXXXXh
OffHtCIDelay= 120s INV Comp= XXXXXh
Comp 3= XXXXXh
Cmp Cooling= XXXXXh
Cmp Heating= XXXXXh
See page 33 See page 34
Analog Input Status Universal I/O Status
MCB Al1= XXXXXXXX MCB X1= XXXXXXXX
MCB Al2= XXXXXXXX MCB X2= XXXXXXXX
MCB Al3= XXXXXXXX MCB X3= XXXXXXXX
EMD Al1= XXXXXXXX
MCB X4= XXXXXXXX
EMD Al2= XXXXXXXX
MCB X5= XXXXXXXX
EMD Al3= XXXXXXXX
MCB X6= XXXXXXXX
MCB X7= XXXXXXXX
MCB X8= XXXXXXXX
EMD X1= XXXXXXXX
EMD X2= XXXXXXXX
EMD X3= XXXXXXXX
EMD X4= XXXXXXXX
EMD X5= XXXXXXXX
EMD X6= XXXXXXXX
EMD X7= XXXXXXXX
EMD X8= XXXXXXXX
14
Keypad/Display Menu Structure
See page 32 See page 33
Save/Restore Settings Active Alarms
Save Params= No Alm Count: xx Clr Alms= No
Rstr Params= No +Alarm 1: Alarm Type
Rstr Factory= No +Alarm 2: Alarm Type
SaveToCard= No
LoadFromCard= No
CreateTrace= No
Trace To SD= No
+Alarm 10: Alarm Type
page 16
3, 4 See connection on
See page 34 See page 34
Digital Input Status Digital Output Status
MCB DI1= XXXXXXXX MCB DO1= XXXXXXXX
MCB DI2= XXXXXXXX MCB DO2= XXXXXXXX
MCB DI3= XXXXXXXX MCB DO3= XXXXXXXX
MCB DI4= XXXXXXXX MCB DO4= XXXXXXXX
MCB DI5= XXXXXXXX MCB DO5= XXXXXXXX
MCB DI6= XXXXXXXX MCB DO6= XXXXXXXX
EMB DIA1= XXXXXXXX MCB DO7= XXXXXXXX
EMD DIA1= XXXXXXXX MCB DO8= XXXXXXXX
EMD DIA4= XXXXXXXX MCB DO9= XXXXXXXX
MCB DO10= XXXXXXXX
EMD DO1= XXXXXXXX
EMD DO2= XXXXXXXX
EMD DO3= XXXXXXXX
EMD DO4= XXXXXXXX
EMD DO5= XXXXXXXX
EMD DO6= XXXXXXXX
