Perform the Height Calibration on a flat, level surface with sufficient overhead clearance
to allow full elevation.

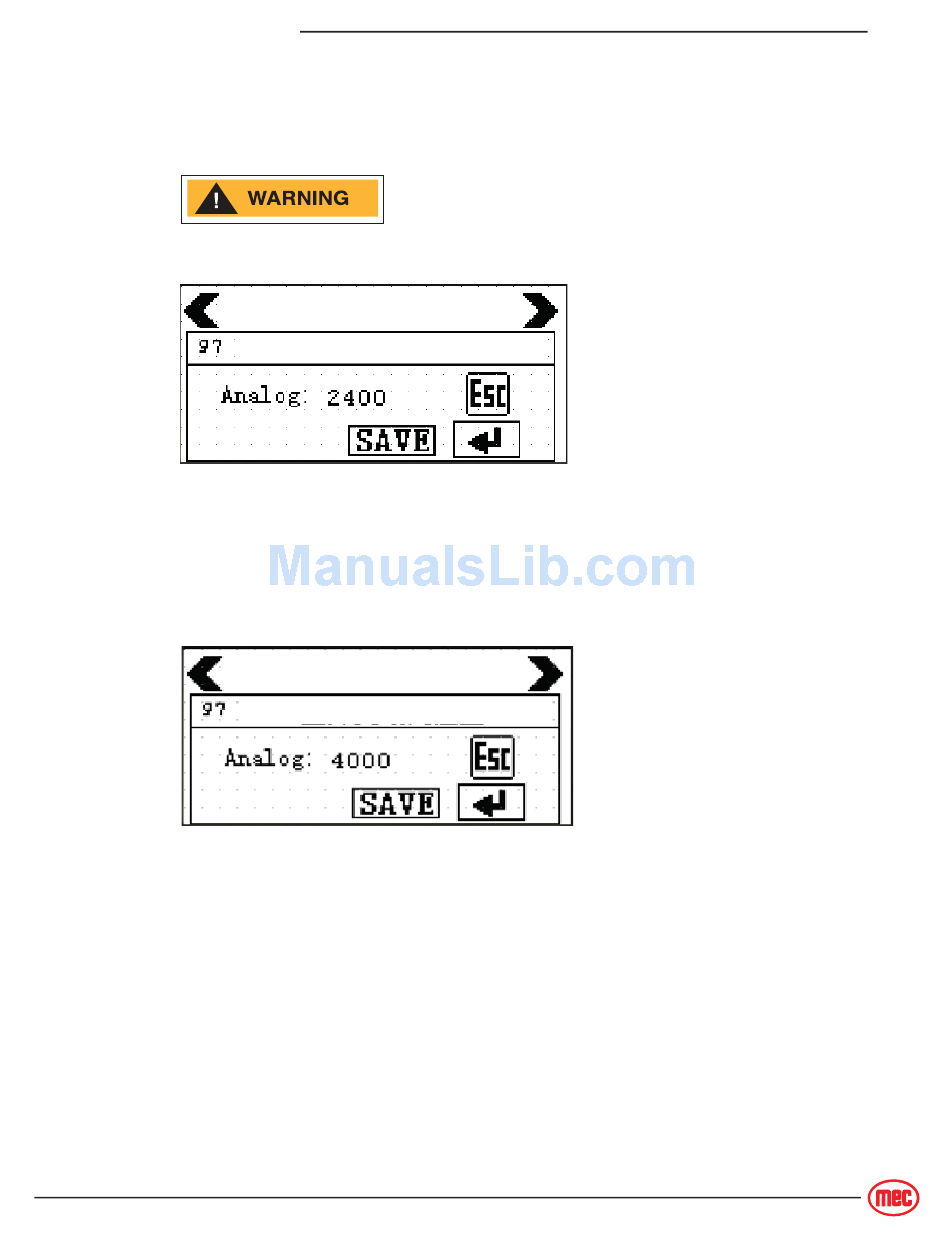

Press the left and right arrows at the top of this screen to find the lowest, then highest
platform positions. Follow the prompts below to calibrate.
ALL SYSTEM SAFETIES ARE DISABLED WHEN IN CALIBRATION MODE.
NORMAL FUNCTION RETURNS UPON EXIT.
Lower the platform to the lowest stowed position.
Press Enter (arrow at lower right), press SAVE, then press the right arrow at the top to
reach the Upper Point Calibration screen.
Raise the platform to the completely elevated position.
Press Enter (arrow at lower right), then press SAVE.
This procedure is finished. Turn the Key Switch to the OFF position, then to either
Platform or Base positions to return to normal operation.
