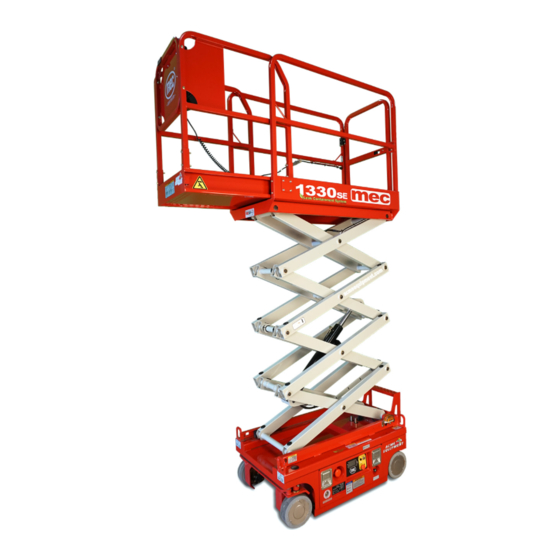

- Page 1 Operator’s Manual 1330SE ART_4907 Serial Number Range 16307700 - Up Part # 95799 This manual applies to machines ANSI A92.20-2020 and CSA B354.6-2019. June 2023...
- Page 2 June 2023 Revision History Date Reason for Update August 2021 Initial Release MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com Page i 1330SE - Operator’s Manual...
-
Page 3: Table Of Contents
� � � 36 Section 12 - Transport and Lifting Instructions . 37 Transport and Lifting Instructions � � � � � � � � � � � � � � � � 37 Page ii 1330SE - Operator’s Manual... -
Page 4: Section 1 - Introduction
Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable service. Only authorized, trained and qualified personnel shall be allowed to operate or service the machine. -
Page 5: Section 2 - Safety
For your safety and the safety of those around you, you must operate your machine as instructed in this manual. MEC designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained. -
Page 6: Safety Alert Symbols & Fall Protection
Section 2 - Safety June 2023 Safety Alert Symbols & Fall Protection MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. RED and the word DANGER – Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 7: Section 3 - Specifications
Two 12-Volt deep cycle; 85Ah Chassis Inclination 1.5 Side 3.0 Inline Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019. *Working Height adds 6 feet (2 m) to platform height. **Weight may increase with certain options. Page 4 1330SE - Operator’s Manual... -
Page 8: Section 4 - Hazards
Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the platform must not touch or operate the machine until energized power lines are shut off. Do not use the machine as a ground for welding. Page 5 1330SE - Operator’s Manual... -
Page 9: Energized Conductor Contact Hazard
(b) Transmission lines greater than 133 kV LEGEND = No shading, in the front views, indicates no proximity requirements = Light shading indicates spotter is required = Heavy shading indicates the NO GO ZONE ART_3265 Page 6 1330SE - Operator’s Manual... - Page 10 Such persons shall be capable of working safely on energized circuits and shall be familiar with the proper use of special precautionary techniques, personal protective equipment, insulating and shielding materials and insulated tools. Page 7 1330SE - Operator’s Manual...
-
Page 11: Tip-Over Hazards
NEVER replace any part of the machine with items of different weight or specification. NEVER modify or alter the work platform without written permission from MEC. NEVER place ladders or scaffolds in the platform or against any part of the machine. -
Page 12: Fall & Collision Hazards
Keep hands and limbs out of scissors. Use common sense and planning when operating the machine with the Art_2827 controller from the ground. Maintain safe distances between the operator, the machine and fixed objects. Page 9 1330SE - Operator’s Manual... -
Page 13: Additional Safety Hazards
Explosion Hazard Keep sparks, flame and lighted tobacco away from batteries. Batteries emit explosive gas. The • battery tray should remain open during the entire charging cycle. Electrocution Hazard • Avoid contact with electrical terminals. Page 10 1330SE - Operator’s Manual... -
Page 14: Section 5 - Controls & Components
Lift Cylinder Tie-Down/ Hydraulic Unit Lift Points Component Motor Controller Tray Batteries Chassis Main Power/ Lower Emergency Stop Switch Battery Forklift Pocket Charger Entry Ladder Lower Controls / ECU Forklift Pocket Emergency ART_5229 Lowering Knob Page 11 1330SE - Operator’s Manual... -
Page 15: Upper Controls
Indicates the state of battery charge and displays diagnostic codes when necessary. Press the EMERGENCY STOP switch at any time to stop all machine functions. 9 Emergency Stop Switch Turn the button clockwise to the on position to operate the machine. Page 12 1330SE - Operator’s Manual... -
Page 16: Lower Controls
Select to operate from the base control panel. 8 Brake Release Switch See page 37 for instructions. Pull to turn the power on or push to turn the power off. 9 Main Power Switch Page 13 1330SE - Operator’s Manual... -
Page 17: Section 6 - Workplace Inspection
Hazardous locations and atmospheres • Inadequate surface and support to withstand all load forces imposed by the machine • Wind and weather conditions • The presence of unauthorized personnel • Other possible unsafe conditions Page 14 1330SE - Operator’s Manual... -
Page 18: Section 7 - Operating Instructions & Functions Test
Perform Prestart Inspection (see page 30). Check Emergency Stop Switches at the platform controls – turn clockwise to reset. ART_3353 Check Main Power/Lower Emergency Stop Switch. Must be in ON position. Main Power/ Lower Emergency Stop Switch ART_5231 Page 15 1330SE - Operator’s Manual... - Page 19 1. Activate the up function and raise the platform approximately 2 ft / 60 cm. 2. Pull the emergency lowering knob. • Result: The platform should lower. The descent alarm will not sound. Emergency Lowering Knob ART_4986 Page 16 1330SE - Operator’s Manual...
- Page 20 4. Depress the thumb rocker switch in the direction identified by the white right arrow on the control panel. • Result: The steer wheels should turn in the direction that the white right arrow points on the control panel. Page 17 1330SE - Operator’s Manual...
- Page 21 Result: The maximum achievable drive speed with the platform raised should not exceed 1.1 ft per second / 30.5 cm/s. • If the drive speed with the platform raised exceeds 1.1 ft per second / 30.5 cm/s, immediately tag and remove the machine from service. Page 18 1330SE - Operator’s Manual...
-
Page 22: Operating Instructions
Select working environment before using machine. • Turn the switch to OUTDOORS to restrict platform height when working outdoors. • Turn the switch to INDOORS to allow unrestricted platform height when Art_5587 working indoors. Page 19 1330SE - Operator’s Manual... - Page 23 1. Press the lift function select button. 2. Press and hold the Function Enable Switch on the control handle. 3. Move the control handle according to the markings on the control panel. Control Handle Function Enable ART_5020 Page 20 1330SE - Operator’s Manual...
- Page 24 Maximum forward/rearward slope rating, stowed position 25%. • Maximum side slope rating, stowed position 5°. Note: Slope rating is subject to ground conditions and adequate traction. Press the drive speed button to the slow drive speed mode. Page 21 1330SE - Operator’s Manual...
- Page 25 Maintain safe distances between operator, machine and fixed objects. Be aware of the direction the machine will travel when using the controller. Battery Level Indicator FULL ART_4984A Use the LED diagnostic readout to determine the battery level. Page 22 1330SE - Operator’s Manual...
- Page 26 Do not stand on the platform extension while extending or retracting it. ART_4996 IF THE ROLL-OUT DECK IS EXTENDED CHECK FOR CLEARANCE UNDER DECK AREA BEFORE LOWERING PLATFORM. Error Indicator Readout Consult the Service & Parts Manual for Alarm Code descriptions. ART_4985 Page 23 1330SE - Operator’s Manual...
- Page 27 Carefully exit the platform using a constant three (3) point dismount/grip. • Push in the red Main Power/Lower Emergency Stop Switch button to the OFF position when leaving the machine at the end of the work day. • Charge the batteries. Page 24 1330SE - Operator’s Manual...
-
Page 28: Section 8 - Battery Charging
Charge the battery in a well-ventilated area. Use proper AC input voltage for charging as indicated on the machine. Use only MEC authorized batteries and chargers. IMPORTANT: Be sure to disconnect the charger from the outlet before attempting to operate the unit. -
Page 29: Section 9 - Maintenance
Never leave hydraulic components or hoses open. Plug all hoses and fitting immediately after disassembly to protect the system from outside contamination (including rain). Never open a hydraulic system when there are contaminants in the air. Page 26 1330SE - Operator’s Manual... - Page 30 Watch for makeshift “fixes” which can jeopardize safety as well as lead to more costly repair. Inspection and maintenance should be performed by qualified personnel familiar with the equipment. Page 27 1330SE - Operator’s Manual...
-
Page 31: Routine Maintenance
Machines that have been out of service for more than three months must have the Frequent Inspection Checklists completed before returning to service. Page 28 1330SE - Operator’s Manual... -
Page 32: Lubrication
Change every six months or 300 hours, whichever occurs first Hydraulic Cap Breather Filter Breather Filter (Located inside Filler Cap) Severe Conditions--very dusty, exceptionally hot or exceptionally cold conditions Change every three months or 150 hours, whichever occurs first Page 29 1330SE - Operator’s Manual... -
Page 33: Pre-Start Inspection Checklist
Be sure that the Component Tray is closed and latched and the batteries are properly connected. NEVER perform work or inspection on the machine with the platform elevated without first blocking the scissor assembly with the Maintenance Lock. See page 18 for instructions. Page 30 1330SE - Operator’s Manual... -
Page 34: Frequent Inspection Checklist
If the machine is used in very dusty, exceptionally hot or exceptionally cold conditions, replace the Hydraulic Cap Breather Filter (under normal conditions replace every 6 months or 300 hours, whichever comes first). Date Inspected By Page 31 1330SE - Operator’s Manual... -
Page 35: Maintenance Inspection Report
Pothole switch test BASE: Steering pressure relief, set correctly Fasteners tight Lift pressure relief, set correctly Cover panels secure **Check Platform Overload Sensing operation Welds **For machine equipped with Platform Overload Protection system only Page 32 1330SE - Operator’s Manual... - Page 36 Section 10 - Warning and Instructional Decals June 2023 Decals Decals Page 33 1330SE - Operator’s Manual...
-
Page 37: Section 10 - Warning And Instructional Decals
Qty. - 2 94115 Qty. - 1 94116 Qty. - 2 41645 Qty. - 1 42534 Qty. - 1 91850 Qty. - 2 94779 Qty. - 2 95252 Qty. - 2 44442 Qty. - 1 Page 34 1330SE - Operator’s Manual... -
Page 38: Serial Plate
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options installed. Fw = 30% (Wm + Wc + Wopt) CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions. Page 35 1330SE - Operator’s Manual... -
Page 39: Section 11 - Troubleshooting
Obvious fluid leak or damaged component? • • Wires disconnected, broken, or loose? • Diagnostic panel on? • Platform Control Box Fault Code present? • Refer to service manual or contact MEC Technical Support. Page 36 1330SE - Operator’s Manual... -
Page 40: Section 12 - Transport And Lifting Instructions
MEC machinery. Truck drivers are responsible for loading and securing machines, and should be properly trained and authorized to operate MEC machinery. Drivers are also responsible for selecting the correct and appropriate trailer according to government regulations and company policy. Drivers must ensure that the vehicle and chains are strong enough to hold the weight of the machine (see the serial number plate for machine weight). - Page 41 Use the tie-down points on the chassis for anchoring down to the transport surface. • Use chains or straps of ample load capacity. • Use a minimum of four (4) chains or straps. • Adjust the rigging to prevent damage to the chains and the machine. Page 38 1330SE - Operator’s Manual...
- Page 42 Fully lower the platform. Be sure the deck extension is retracted and the controls and component trays are closed and secure. Remove all loose items from the machine. • Determine the center of gravity of the machine. • Attach rigging to the designated lift points only. Page 39 1330SE - Operator’s Manual...
- Page 43 June 2023 Notes Page 40 1330SE - Operator’s Manual...
- Page 44 June 2023 Notes Page 41 1330SE - Operator’s Manual...
- Page 45 June 2023 Notes Page 42 1330SE - Operator’s Manual...
- Page 46 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp.com Please Fill Out Completely: Date: Ordered By: Account: Your Fax No.: Bill to: Ship to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number **Fed Ex shipments require Fed Ex account number...
- Page 47 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
- Page 48 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com...
