Batteries - Mec 1330SE Service And Parts Manual

B
A T T E R I E S
Proper battery condition is essential to good machine performance and operational
safety. Improper or damaged cables and connections can result in component damage
and hazardous conditions.
ELECTROCUTION / BURN HAZARD. CONTACT WITH ELECTRICALLY
CHARGED CIRCUITS COULD RESULT IN DEATH OR SERIOUS INJURY.
REMOVE ALL RINGS, WATCHES AND OTHER JEWELRY.
BODILY INJURY HAZARD. BATTERIES CONTAIN ACID. AVOID SPILLING
OR CONTACTING BATTERY ACID. NEUTRALIZE BATTERY ACID SPILLS
WITH BAKING SODA AND WATER.
1. Put on protective clothing and eye wear.
2. Slide out the component tray from the chassis.
3. Be sure that the battery cable connections are free of corrosion.
NOTE: Adding terminal protectors and a corrosion preventative sealant will help eliminate corrosion on the battery
terminals and cables.
4. Be sure that the battery retainers and cable connections are tight.
5. Fully charge the batteries. Allow the batteries to rest 24 hours before performing this
procedure to allow the battery cells to equalize.
6. Check each battery pack and verify that the
batteries are wired correctly.
7. Inspect the battery charger plug and pigtail
for damage or excessive insulation wear.
Replace as required.
8. Connect the battery charger to a properly
grounded 110 - 230V / 50 - 60 Hz single
phase AC power supply.
• Result: The charger should operate and begin
charging the batteries.
• Result: If, simultaneously, the charger alarm sounds and the LEDs blink, correct the charger
connections at the fuse and battery. The charger will then operate correctly and begin charg-
ing the batteries.
NOTE: For best results, use an extension cord of adequate size with a length no longer than 50 ft / 15m.
If you have any further questions regarding the battery charger operation, please contact the MEC Customer
Service.
July 2017
Page 1-4

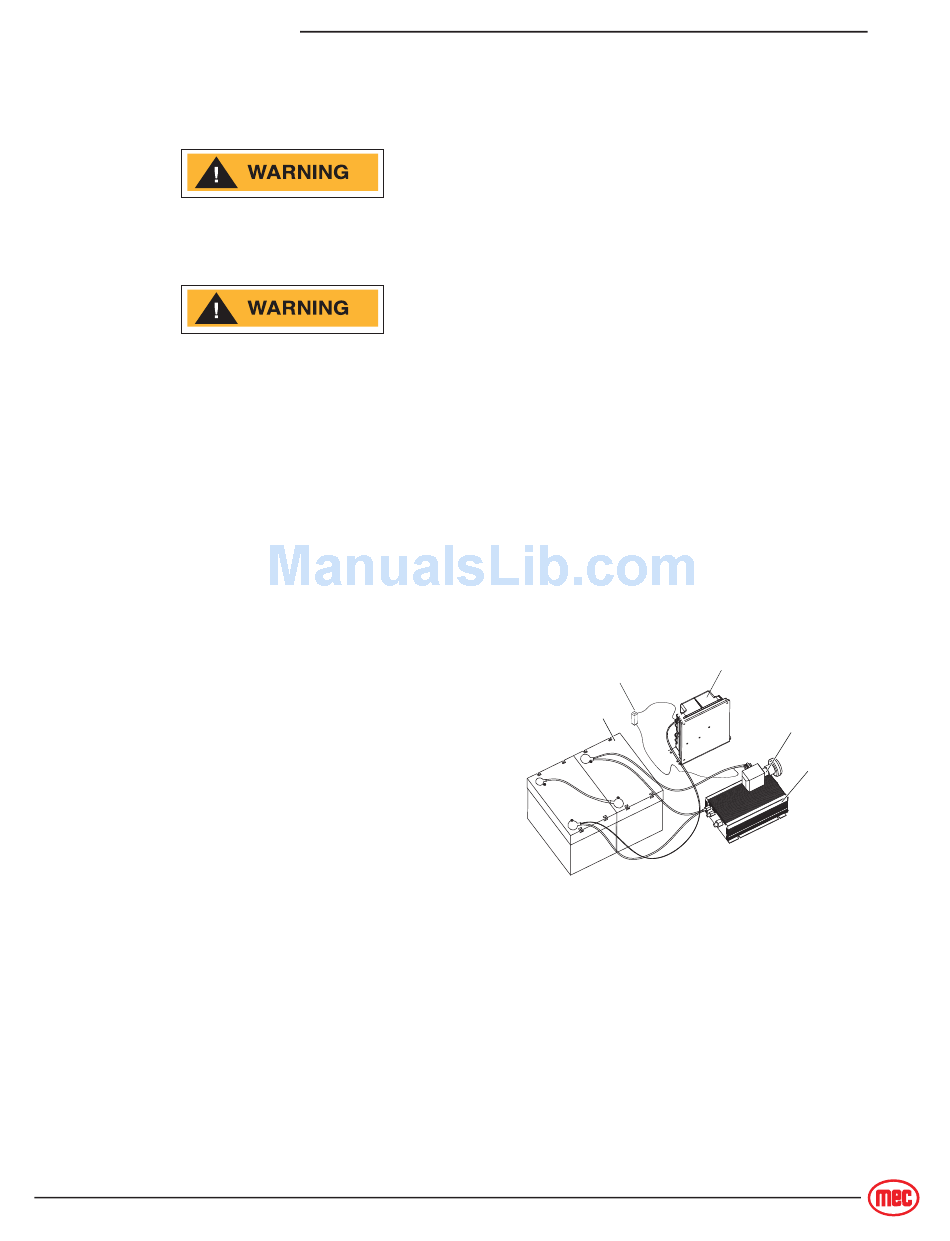

150A Fuse

Batteries

"1330SE" Service and Parts Manual
F I
R E Q U E N T N S P E C T I O N
Motor Controller (ECU2 (TMI)
C
H E C K L I S T
Power
Switch
Battery
Charger
ART_5050
