A I
NNUAL NSPECTION
THIS CHECKLIST MUST BE USED AT 12-MONTH INTERVALS OR EVERY
600 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST. FAILURE TO
DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
Annual Maintenance Inspections should be conducted by qualified service technicians
only. Photocopy the Annual Inspection Checklist page from the Operator's Manual to
keep record of this inspection. Keep inspections records up to date. Record and report
all discrepancies to your supervisor.
Perform all checks listed on Pre-Start Inspection and the Frequent Inspection, then
check all items listed on the Annual Inspection Report. See specific instructions below.
S
C I S S O R
Maintaining the condition of the scissor arm slide blocks is essential to safe machine
operation. Continued use of worn out wear pads may result in component damage and
unsafe operating conditions.
Perform this procedure with the platform in the stowed position.

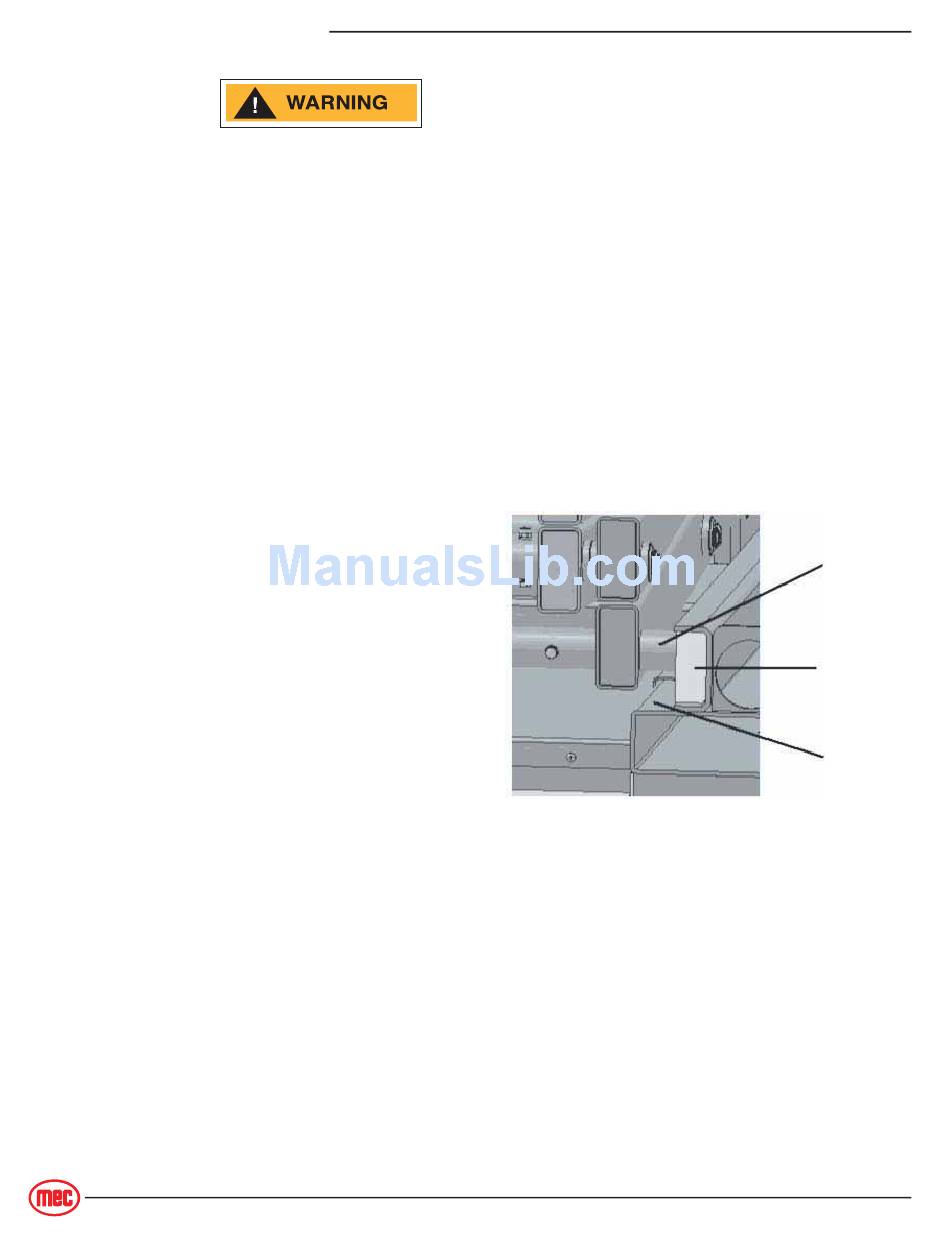

1. Measure the distance between the
number one inner arm cross tube
and the chassis deck at the ground
controls side of the non-steer end of
the machine.
• Result: The measurement is 1.18 in /
30 mm or more. Proceed to step 2.
• Result: The measurement is less than
1.18 in / 30 mm. Replace both wear
pads.
2. Measure the distance between the
number one inner arm cross tube
and the chassis deck at the battery
pack side of the non-steer end of the machine.
• Result: The measurement is 1.18 in / 30 mm or more. Proceed to step 3.
• Result: The measurement is less than 30mm. Replace both wear pads.
3. Apply a thin layer of dry film lubricant to the area of the chassis where the scissor arm
wear pads make contact.
C
HECKLIST
S B
L I D E L O C K S
"1330SE" Service and Parts Manual
A I C
N N U A L N S P E C T I O N
Inner Arm
Cross Tube
Slide Block
Chassis Deck
ART_5051
H E C K L I S T
