Mec 1330SE Service And Parts Manual page 40

Icon

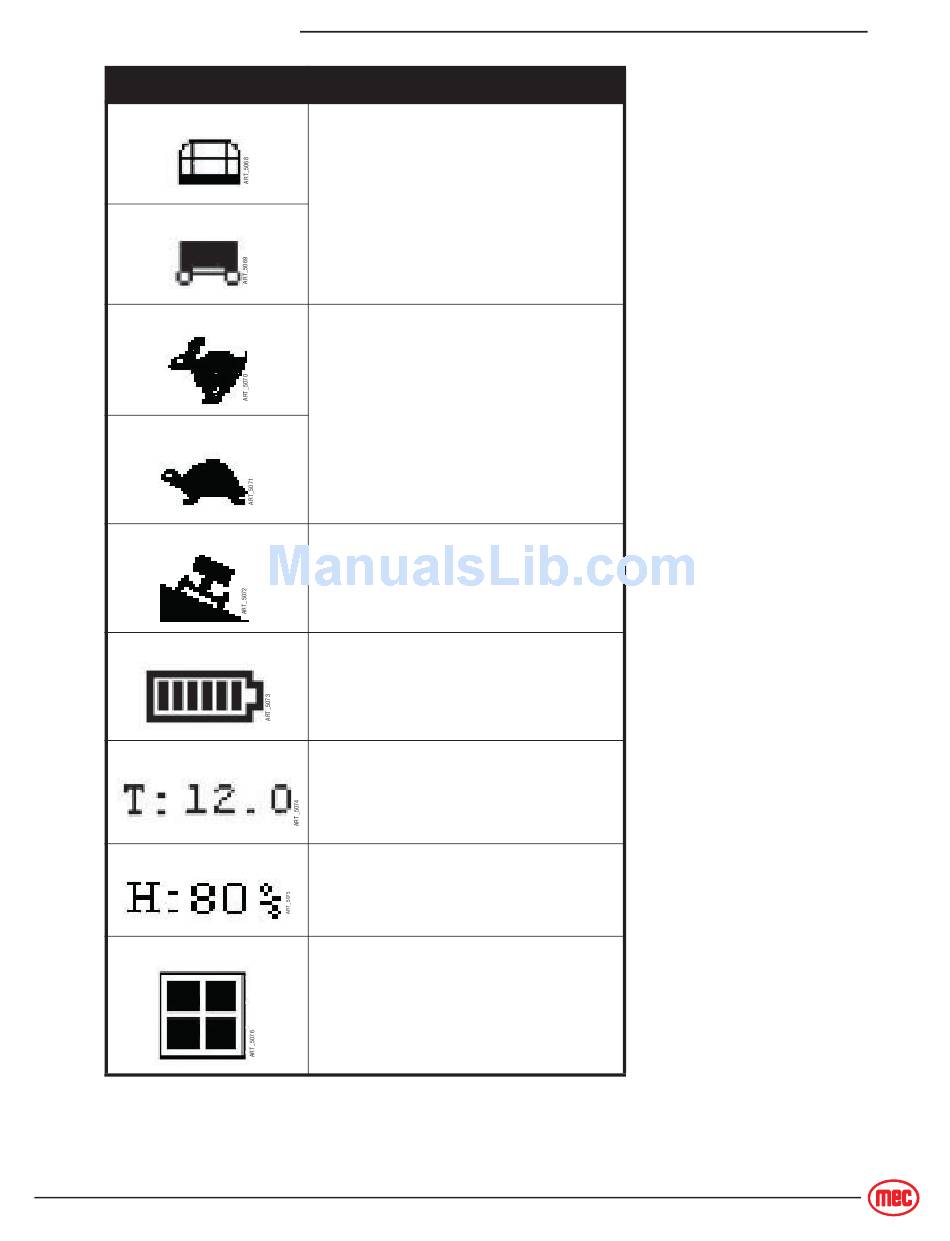

Platform Operation
Base Operation
High Speed
Low Speed
Tilt
Battery
Hour Meter
Height Indicator
Menu
July 2017
Page 2-10
Description
The upper left corner will indicate either
Platform or Base operation, depending on the
position of the Key Switch.
The High or Low Speed drive icon display the
drive speed selected at the Platform Controls.
Low Speed is automatically selected when the
platform is elevated.
This icon is displayed when the angle of the
ground exceeds the allowable tilt angle with
the platform elevated.
This icon displays the current charge state of
the battery pack.
Hour Meter indicates total elapsed time of
machine operation.
Displays the lift height by percentage. 0%
indicates the stowed position, while 100%
indicates that the platform is fully elevated.
Press the Menu button to reach additional
menus.
"1330SE" Service and Parts Manual
P A
A R A M E T E R D J U S T M E N T
