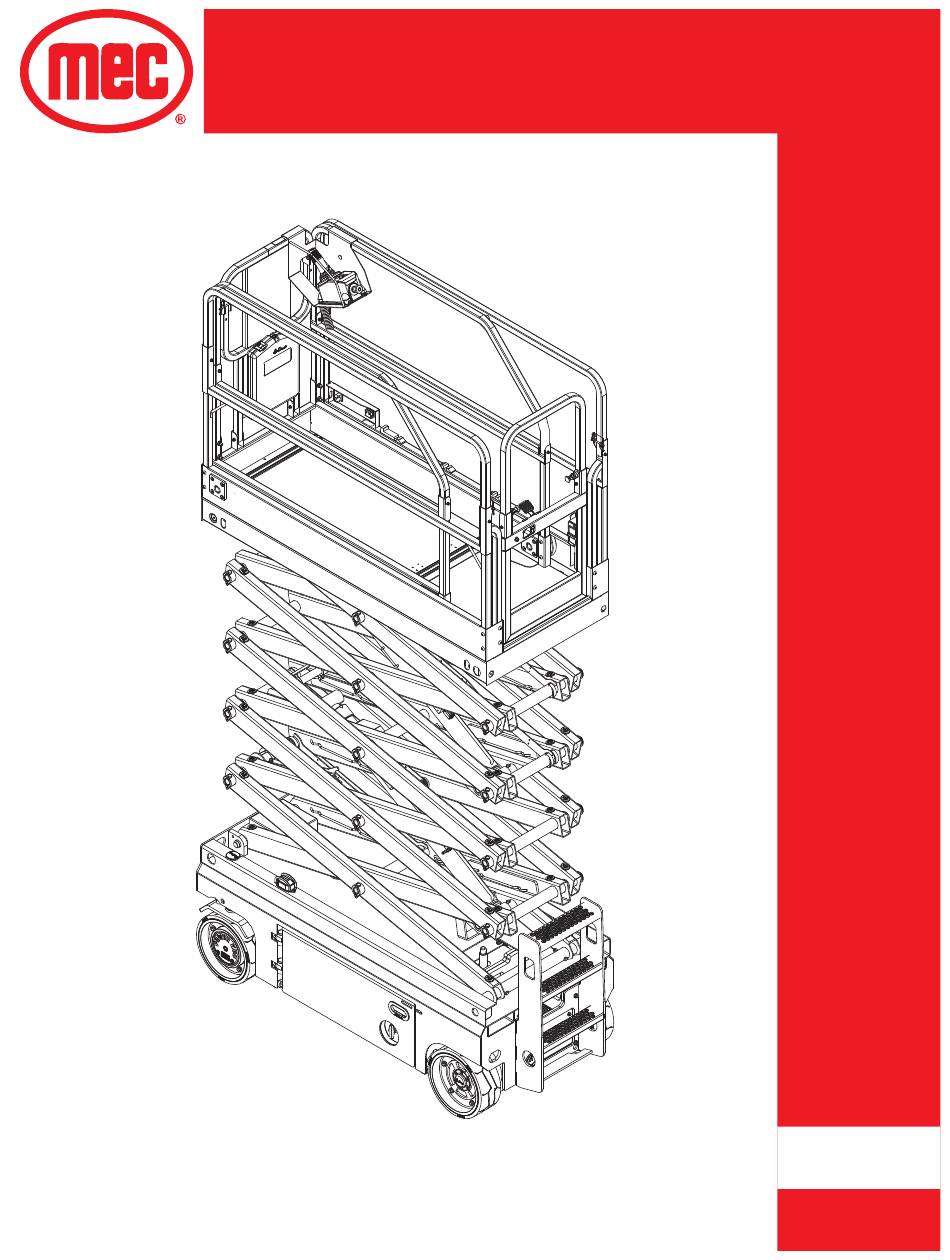

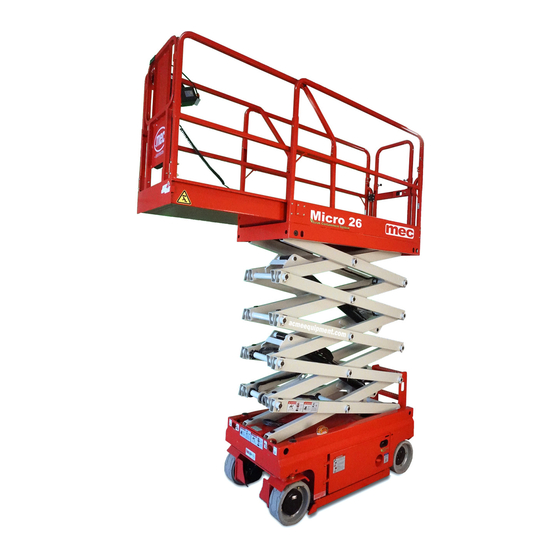

  • Page 1 Operator’s Manual Micro 26 ART_5484 Serial Number Range Part # 43542 17100001 - Up March 2019...
  • Page 2 Date Reason for Update March 2019 New Release MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com...

  • Page 3: Table Of Contents

    March 2019 Table of Contents Section 1 - Introduction ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� ����� Introducton ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������...
  • Page 4 March 2019 Section 11 - Transporting and Lifting Instruction ����� ����� ����� ����� ����� ����� ����� ����� ����� 36 Transport and Lftng Instructons ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ 36 Drvng or Wnchng onto or off of a Transport Vehcle������...

  • Page 5: Section 1 - Introduction

    Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable service. Only authorized, trained and qualified personnel shall be allowed to operate or service the machine.

  • Page 6: Section 2 - Safety

    For your safety and the safety of those around you, you must operate your machine as instructed in this manual. MEC designs mobile elevating work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained.

  • Page 7: Safety Alert Symbols & Fall ProtectOn

    Secton 2 - Safety March 2019 Safety Alert Symbols & Fall Protection MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. RED and the word DANGER – Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury�����...

  • Page 8: Section 3 - Specifications

    Secton 3 - Specfcatons March 2019 Specifications Specifications Working Height* 32 ft 9.45 m Platform Height 26 ft 7.62 m Top Guardrail 90.3 in 2.3 m Stowed Height Rails Folded 78.75 in Platform Floor 47 in 1.2 m Guardrail Height 43.5 in 1.1 m Toeboard Height...

  • Page 9: ElectrocutOn Hazard

    Secton 4 - Hazards March 2019 Electrocution Hazard Electrocution Hazard ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED! DEATH OR SERIOUS INJURY will result from contact with or inadequate clearance from any electrically charged conductor����� You must maintain a CLEARANCE OF AT LEAST 10 FEET (3����� 0 5 m) between any part of the machine, or its load, and any electrical line or apparatus carrying over 300 Volts up to 50,000 Volts�����...

  • Page 10: Section 4 - Hazards

    NEVER replace any part of the machine with items of different weight or specification. NEVER modify or alter the work platform without written permission from MEC. NEVER place ladders or scaffolds in the platform or against any part of the machine.

  • Page 11: Fall And CollSOn Hazards

    Secton 4 - Hazards March 2019 Fall and Collision Hazards DO NOT sit, stand or climb on the platform guard rails. Maintain a firm footing on the platform floor at all times. DO NOT exit the platform when elevated. DO NOT climb down from the platform when elevated.

  • Page 12: AddTOnal Safety Hazards

    Secton 4 - Hazards March 2019 Additional Safety Hazards Explosion and Fire Hazards DO NOT operate the machine in hazardous locations or locations where potentially flammable or explosive gasses or particles may be present. Damaged Machine Hazards Conduct a thorough pre-start inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.

  • Page 13: Section 5 - Components And Controls

    Secton 5 - Components and Controls March 2019 Component Locations Component Locations Manuals Case Platform Controls Lanyard Anchorage Guard Rails Deck Extension Release Entry Gate Deck Extension Main Platform Breather Cap Controls Tray Lift Cylinders Hydraulic Filter Maintenance Hydraulic Lock Reservoir Hydraulic Pump &...

  • Page 14: Platform Controls

    Secton 5 - Components and Controls March 2019 Platform Controls ART_5011 ORANGE and the word WARNING – Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury����� Control Description 1 Function Enable Switch Squeeze to enable DRIVE, STEER, and LIFT functions from the Control Handle. 2 Steer Switch Using your thumb, press and hold the rocker switch to steer Left or Right.

  • Page 15: Lower Controls

    Secton 5 - Components and Controls March 2019 Lower Controls ART_5012 ALWAYS be aware of the machine’s position and of your surroundings before activating any control function����� Control Description PLATFORM Select to operate from the platform control panel. 1 Key Switch BASE Select to operate from the base control panel.

  • Page 16: Section 6 - Workplace Inspection

    Secton 6 - Workplace Inspecton March 2019 Workplace Inspection Workplace Inspection DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section����� Inspect the workplace and determine whether the workplace is suitable for safe machine operation.

  • Page 17: FunctOns Test

    Secton 7 - Operatng Instructons and Functon Tests March 2019 Functions Test Functions Test DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section����� This section provides instructions and tests for each function of machine operation.
  • Page 18 Secton 7 - Operatng Instructons and Functon Tests March 2019 Functions Tests Select a test area that is indoors firm, level and free of obstruction. Be sure the battery pack is connected. Turn the main power switch to ON (pulled out) position. At the Ground Controls Pull or turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls.
  • Page 19 Secton 7 - Operatng Instructons and Functon Tests March 2019 Test Emergency Stop Push in the platform red Emergency Stop button to the off position. • Result: No functions should operate. Pull or turn the red Emergency Stop button clockwise to the on position. •...
  • Page 20 Secton 7 - Operatng Instructons and Functon Tests March 2019 Test Drive and Braking Press and hold the Function Enable Switch on the control handle. Slowly move the control handle forward/downward until the machine begins to move, then return the handle to the center position. •...

  • Page 21: OperatNg InstructOns

    Secton 7 - Operatng Instructons and Functon Tests March 2019 Operating Instructions Check the area above and around the machine for obstructions and electrical power lines before operating the machine����� Emergency Stop Push in the red Emergency Stop button to the off position at the ground controls or the platform controls to stop all machine functions.
  • Page 22 Secton 7 - Operatng Instructons and Functon Tests March 2019 Operation from Platform Turn the Key Switch to platform control. Pull or turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls. Be sure the battery pack is connected before operating the machine.
  • Page 23 Secton 7 - Operatng Instructons and Functon Tests March 2019 To Drive Press the drive function select button. Press and hold the Function Enable Switch on the control handle. Increase speed: Slowly move the control handle off center. • Push the control handle forward to move forward. Pull the control handle rearward to move rearward.
  • Page 24 Secton 7 - Operatng Instructons and Functon Tests March 2019 To determine the slope grade Measure the slope with a digital inclinometer OR use the following procedure. • You will need: • Carpenter’s level • Straight piece of wood, at least 3.3 ft / 1 m long •...

  • Page 25: Section 8 - Maintenance

    DO NOT engage the Maintenance Lock unless the platform in empty of tools and material����� For the Micro 26, the Maintenance Lock is located at the front of the scissor stack. Raise the platform approximately 10 ft (3 m) just high enough to rotate the Maintenance Lock into place.
  • Page 26 Secton 8 - Mantenance March 2019 Keep clear of the scissor linkage when lowering. Stowed If a Maintenance Lock requires adjustment to stow it correctly, stop the lowering function. Adjust the maintenance lock while stationary, then return to the lowering function. Stowed Maintenance Locks ART_5147...
  • Page 27 Secton 8 - Mantenance March 2019 To Extend and Retract the Deck Extension Press the platform lock pin foot pedal on the extension deck. Push the platform extension guardrail to extend the platform to the Deck Extension desired position. Release Pedal Do not stand on the platform extension while extending or retracting it.

  • Page 28: Battery ChargNg

    Use proper AC input voltage for charging as Platform socket ART_5026 indicated on the machine����� Use only MEC authorized batteries and chargers����� IMPORTANT Be sure to disconnect the charger from the outlet before attempting to operate the unit. The charger will indicate the status of the charge cycle.
  • Page 29 Secton 8 - Mantenance March 2019 Maintenance DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section����� The operator must conduct a Pre-Start Inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.
  • Page 30 Secton 8 - Mantenance March 2019 Never leave hydraulic components or hoses open����� Plug all hoses and fitting immediately after disassembly to protect the system from outside contamination (including rain)����� Never open a hydraulic system when there are contaminants in the air����� Always clean the surrounding area before opening hydraulic systems�����...

  • Page 31: LubrCatOn

    Secton 8 - Mantenance March 2019 1930 2632 Lubrication 3346 Operator may perform routine maintenance only. Lubrication listed as Scheduled Maintenance must 4046 be performed by a qualified service technician. 4555 FULL Controls Controls Tray Breather Cap Tray Hydraulic Hydraulic Filter Filter Hydraulic...

  • Page 32: Pre-Start InspectOn ChecklSt

    Secton 8 - Mantenance March 2019 Pre-Start Inspection Checklist The operator must conduct a Pre-Start Inspection of the machine before each work shift. DO NOT use a damaged or malfunctioning machine. Initial Description Be sure that the operator’s manual are complete, legible and in the storage container located in the platform.

  • Page 33: Annual InspectOn Report

    Secton 8 - Mantenance March 2019 Annual Inspection Report Aerial Platform Sales Corp 1401 S. Madera Avenue, Kerman, CA 93630 USA “Y” Yes / Acceptable 1 - 877 - 632 - 5438 1 - 559 - 842 - 1500 “N” No / Unacceptable Key: Fax: 1 - 559 - 842 - 1520...
  • Page 34 Secton 8 - Mantenance March 2019 Frequent Inspection Checklist This checklist must be used at 3-month intervals or every 150 hours of machine use, whichever occurs first����� Failure to do so could result in death or serious injury����� Frequent Maintenance Inspections should be conducted by qualified service technicians only. Photocopy this page for reuse.

  • Page 35: Decal LocatOns

    Secton 9 - Decals March 2019 Decal Locations Decal Locations Opposite side also Page 31 Mcro 26 - Operator’s Manual...
  • Page 36 Secton 9 - Decals March 2019 P/N - 42542 4 x 18 in P/N - 41646 P/N - 41748 Qty. - 2 P/N - 94114 Qty. - 3 Qty. - 3 Qty. - 2 P/N - 94949 P/N - 41641 P/N - 41666 P/N - 41642 Qty.
  • Page 37 Decal, Tip Over Hazard 94659 Decal, Battery Charger & Power To Platform 94115 Decal, MEC Oval, Small 42541 Platform Decal - Micro 26 (Indoor Only Rated) 41635 Decal Instructions - Tie Down Point 41634 Decal Instructions - Lift Point 41631...
  • Page 38 Secton 9 - Decals March 2019 Serial Plate Location and Description Serial Plate Location The serial plate is attached to the machine at the time of manufacture. Important information about the machine is recorded on the serial plate. ART_5028a Serial Plate Description MODEL NUMBER: Identifies the machine.

  • Page 39: Section 10 - Troubleshooting

    Wires disconnected, broken, or loose? • Diagnostic panel on? • Platform Control Box Fault Code present? ◦ Contact MEC Technical Support or refer to service manual. ◦ Manuals are available free online at www.MECawp.com. Page 35 Mcro 26 - Operator’s Manual...
  • Page 40 MEC machinery����� Truck drivers are responsible for loading and securing machines, and should be properly trained and authorized to operate MEC machinery����� Drivers are also responsible for selecting the correct and appropriate trailer according to government regulations and company policy����� Drivers must ensure that the vehicle and chains are strong enough to hold the weight of the machine (see the serial number plate for machine weight)�����...
  • Page 41 Secton 11 - Transportng and Lftng Instructon March 2019 Driving or Winching onto or off of a Transport Vehicle Always attach the machine to a winch when loading or unloading from a truck or trailer by driving����� Read and understand all safety, control, and operating information found on the machine and in this manual before operating the machine�����...
  • Page 42 Secton 11 - Transportng and Lftng Instructon March 2019 Securing to Truck or Trailer for Transport • Turn the Key Switch to OFF and remove the key before transport. • Inspect the entire machine for loose or unsecured items. • Chock the wheels •...
  • Page 43 Attach rigging to the designated lift points only. Adjust the rigging to prevent damage to the machine and to keep the machine level. Model X Axis Y Axis 27.5 in 27.2 in Micro 26 70 cm 69 cm Chassis Chassis Lifting Lifting...
  • Page 44 March 2019 Notes Page 40 Mcro 26 - Operator’s Manual...
  • Page 45 March 2019 Notes Page 41 Mcro 26 - Operator’s Manual...
  • Page 46 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp����� c om Please fill out completely Date: Ordered By: Account: Your Fax No.: Ship to: Bill to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number...
  • Page 47 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
  • Page 48 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com www.MECawp.com...
