Installing A Processor And Voltage Regulator Module (Vrm) - Digital Equipment DIGITAL Server 7100 1200 Service Maintenance Manual

Processor Module Upgrades

Installing a Processor and Voltage Regulator Module (VRM)

1. Remove the processor from its shipping holder by removing the retaining clip.
To remove the clip, press down firmly on the top of the clip. If needed, press
down with a small screwdriver in the hole of the second style clip shown in
Figure 6-4.
DEC01211-2
DEC01211-3

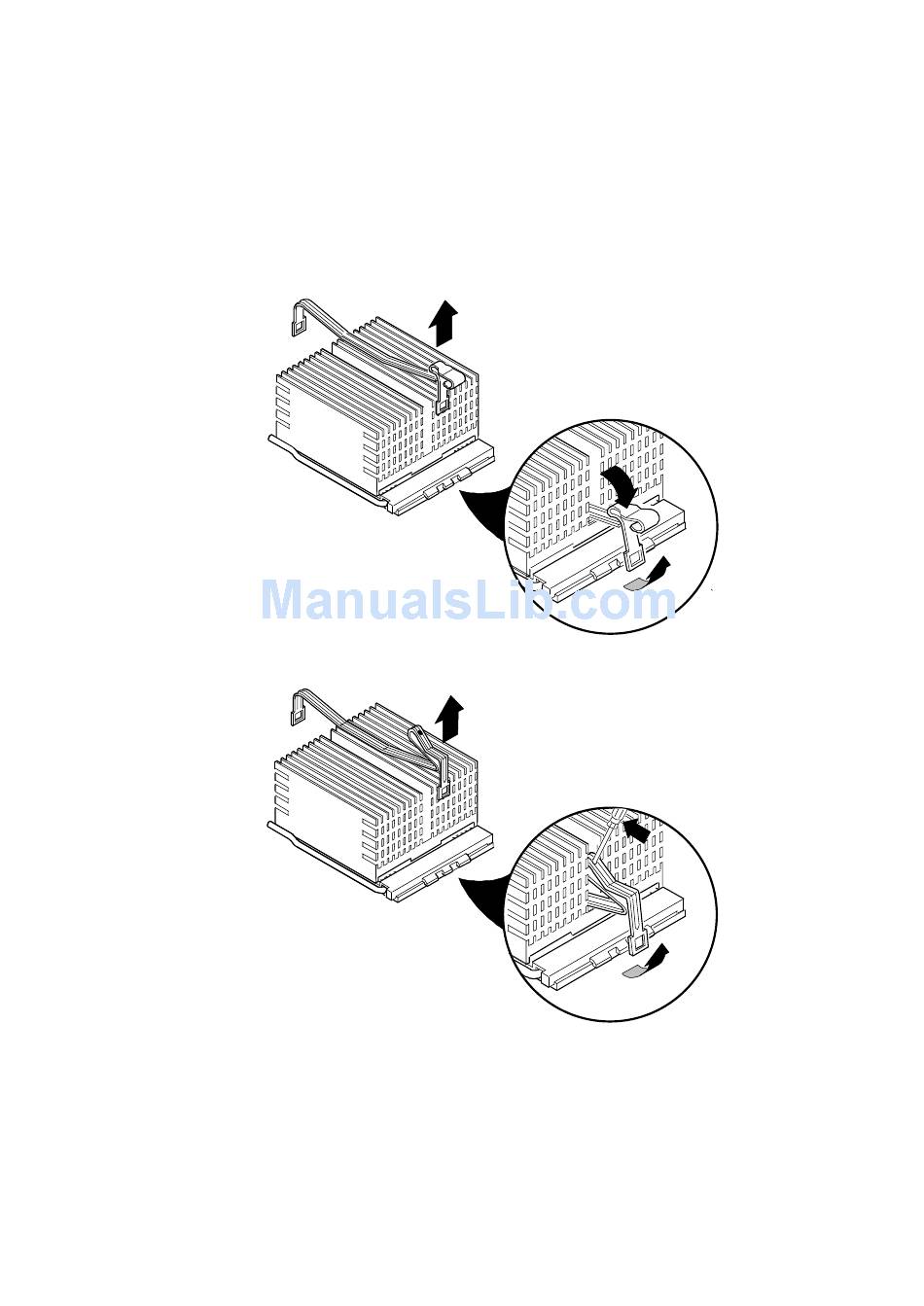

Figure 6-4. Removing the Retaining Clip
6-11
