Removing And Replacing The Main Logic Board - Digital Equipment DIGITAL Server 7100 1200 Service Maintenance Manual

B
A
B

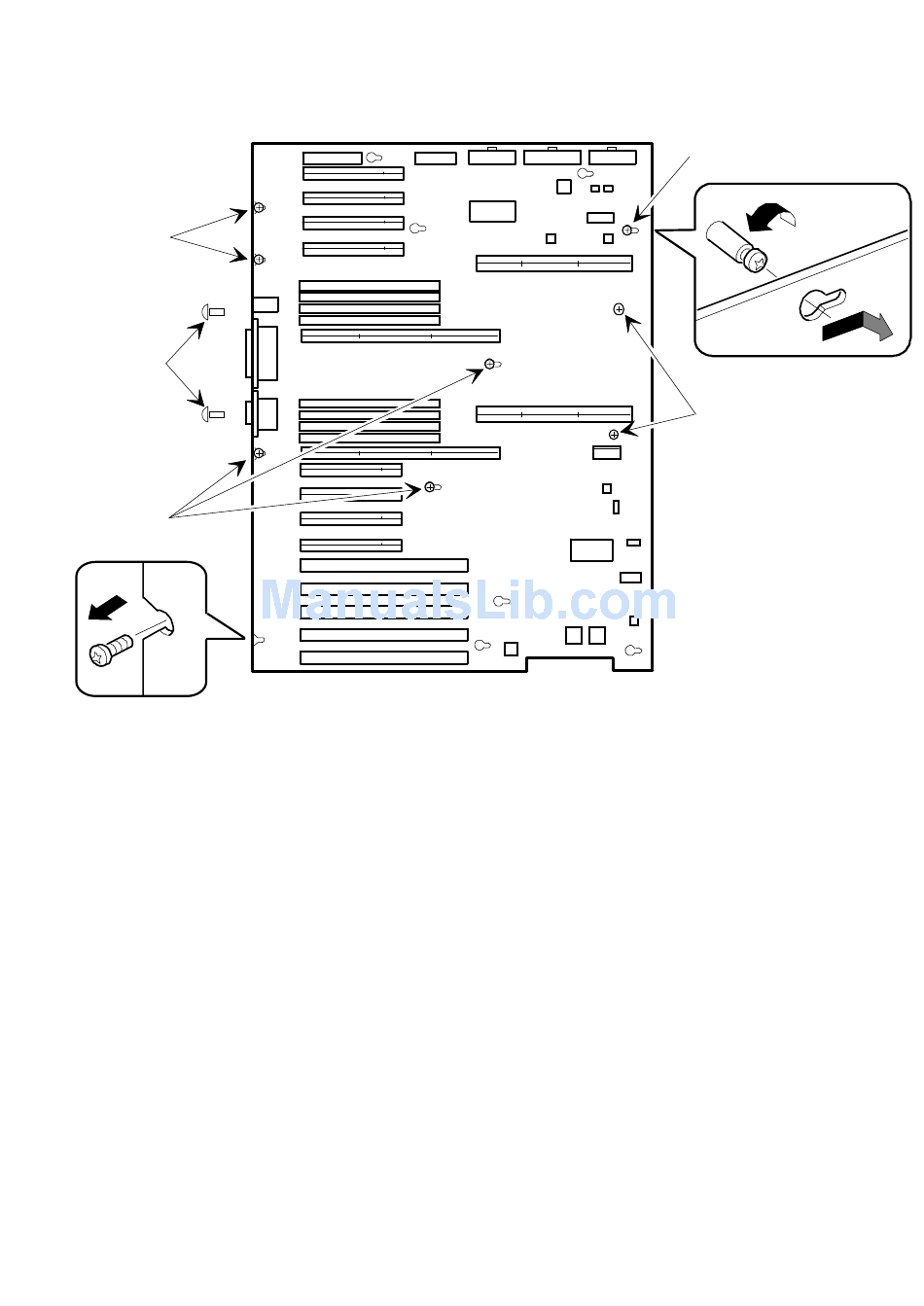

Figure 5-24. Removing and Replacing the Main Logic Board
5
6
7
8
1
2
3
4
1
2
3
4
5
FRU Replacement
B
A
DEC00692-11
5-53
