WAN Ethernet

The device supports the following WAN Ethernet connection types:


Manual IP Address Ethernet Connection


Automatic IP address

Point-to-Point Protocol over Ethernet (PPPoE)

Point-to-Point Tunneling Protocol (PPTP)

Layer 2 Tunneling Protocol (L2TP)
Notes:
•
Automatic IP address is the default connection type.
•
If you do not need an Internet (WAN Ethernet) connection, then in the 'Quick Setup'
screen, from the 'Connection Type' drop-down list, select 'No Internet Connection'.
8.1.1.1 Manual IP Address Ethernet Connection
The procedure below describes how to connect to the Internet using a manually defined IP
address.

To configure a manual IP address connection:
1. From the 'Connection Type' drop-down list, select 'Manual IP Address Ethernet
Connection'.

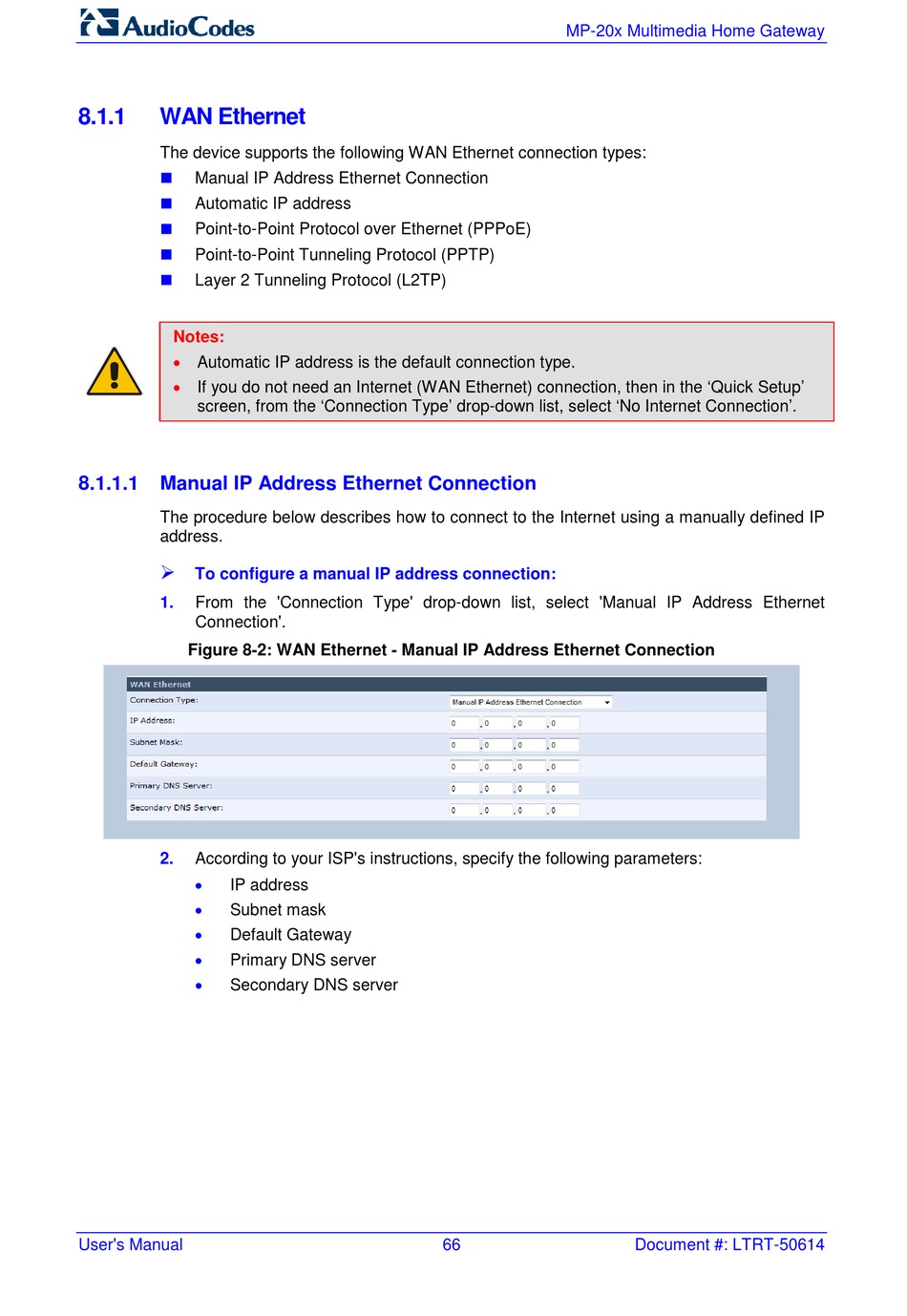

Figure 8-2: WAN Ethernet - Manual IP Address Ethernet Connection

2. According to your ISP's instructions, specify the following parameters:
•
IP address
•
Subnet mask
•
Default Gateway
•
Primary DNS server
•
Secondary DNS server
