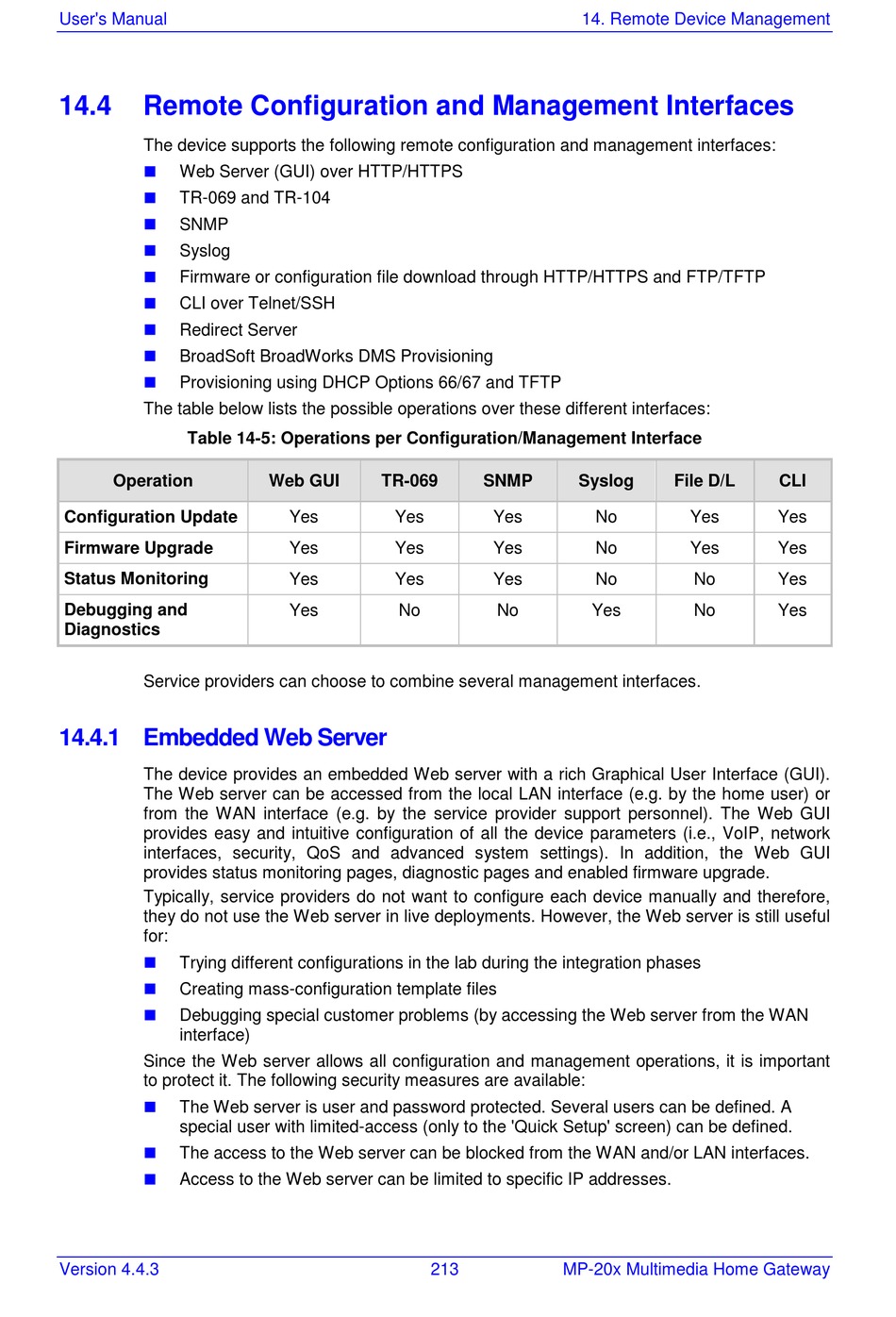

14.4

Remote Configuration and Management Interfaces

The device supports the following remote configuration and management interfaces:

Web Server (GUI) over HTTP/HTTPS

TR-069 and TR-104

SNMP

Syslog

Firmware or configuration file download through HTTP/HTTPS and FTP/TFTP

CLI over Telnet/SSH

Redirect Server

BroadSoft BroadWorks DMS Provisioning

Provisioning using DHCP Options 66/67 and TFTP
The table below lists the possible operations over these different interfaces:

Table 14-5: Operations per Configuration/Management Interface

Operation
Configuration Update
Firmware Upgrade
Status Monitoring
Debugging and
Diagnostics
Service providers can choose to combine several management interfaces.

14.4.1 Embedded Web Server

The device provides an embedded Web server with a rich Graphical User Interface (GUI).
The Web server can be accessed from the local LAN interface (e.g. by the home user) or
from the WAN interface (e.g. by the service provider support personnel). The Web GUI
provides easy and intuitive configuration of all the device parameters (i.e., VoIP, network
interfaces, security, QoS and advanced system settings). In addition, the Web GUI
provides status monitoring pages, diagnostic pages and enabled firmware upgrade.
Typically, service providers do not want to configure each device manually and therefore,
they do not use the Web server in live deployments. However, the Web server is still useful
for:

Trying different configurations in the lab during the integration phases

Creating mass-configuration template files

Debugging special customer problems (by accessing the Web server from the WAN
interface)
Since the Web server allows all configuration and management operations, it is important
to protect it. The following security measures are available:

The Web server is user and password protected. Several users can be defined. A
special user with limited-access (only to the 'Quick Setup' screen) can be defined.

The access to the Web server can be blocked from the WAN and/or LAN interfaces.

Access to the Web server can be limited to specific IP addresses.
Version 4.4.3
Web GUI TR-069
Yes Yes
Yes Yes
Yes Yes
Yes No
213
14. Remote Device Management
SNMP Syslog
Yes No
Yes No
Yes No
No Yes
MP-20x Multimedia Home Gateway
File D/L CLI
Yes Yes
Yes Yes
No Yes
No Yes
