Figure 4-4: Line Settings - AudioCodes MP-20 Series User Manual

User's Manual
6. Select the One Line Configuration; the table lists the lines according to the selected
line configuration mode.
7. Click the corresponding Edit
appears:
8. In the 'User ID' field, enter the phone's VoIP user ID used for identification to initiate
and accept calls.
9. In the 'Authentication User Name' field, enter the user name received from your VoIP
service provider.
10. In the 'Authentication Password' field, enter the password received from your VoIP
service provider.
11. Click OK.
Version 4.4.3
icon to configure the line; the following screen

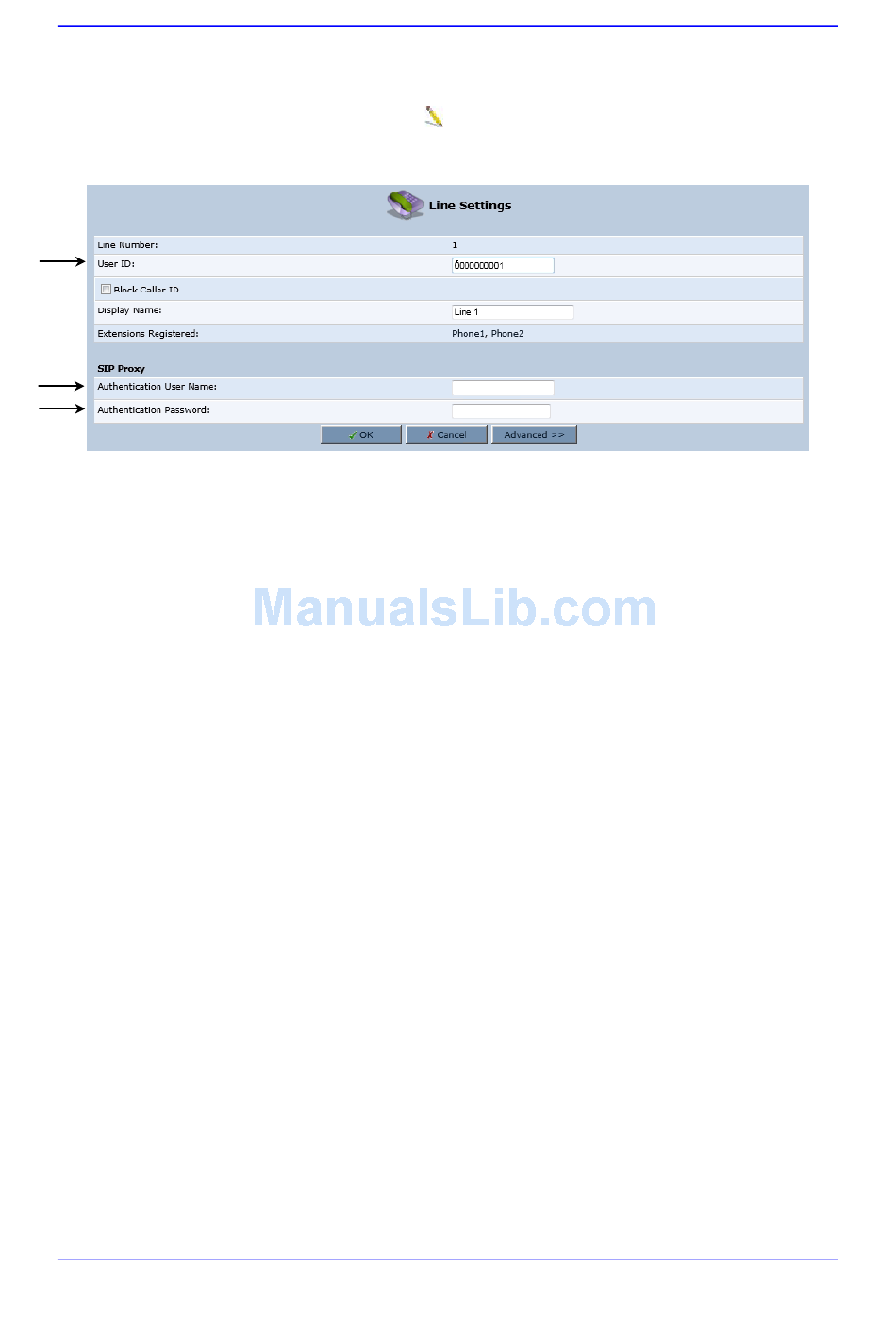

Figure 4-4: Line Settings

35
4. Device Quick Setup
MP-20x Multimedia Home Gateway
