All configuration interfaces access the same internal configuration repository. The
configuration file represents the complete set of the device configuration parameters.
Specific configuration interfaces (e.g. TR-069) might support access only to a sub-set of
these configuration parameters.
At any time, the factory settings can be restored using the Web interface or by pressing the
Reset pin-hole button while the device is being powered up.
The table below lists the main device configuration parameter groups:
Group
VoIP
WAN Interface
Network Connections
Security
QoS
System / Advanced
A typical set of parameters that a service provider may want to configure include the
following:

Remote access and/or automatic firmware and configuration update parameters

VoIP configuration: SIP proxy, line settings (User IP, Password)

QoS parameters (e.g. traffic shaping)
User's Manual

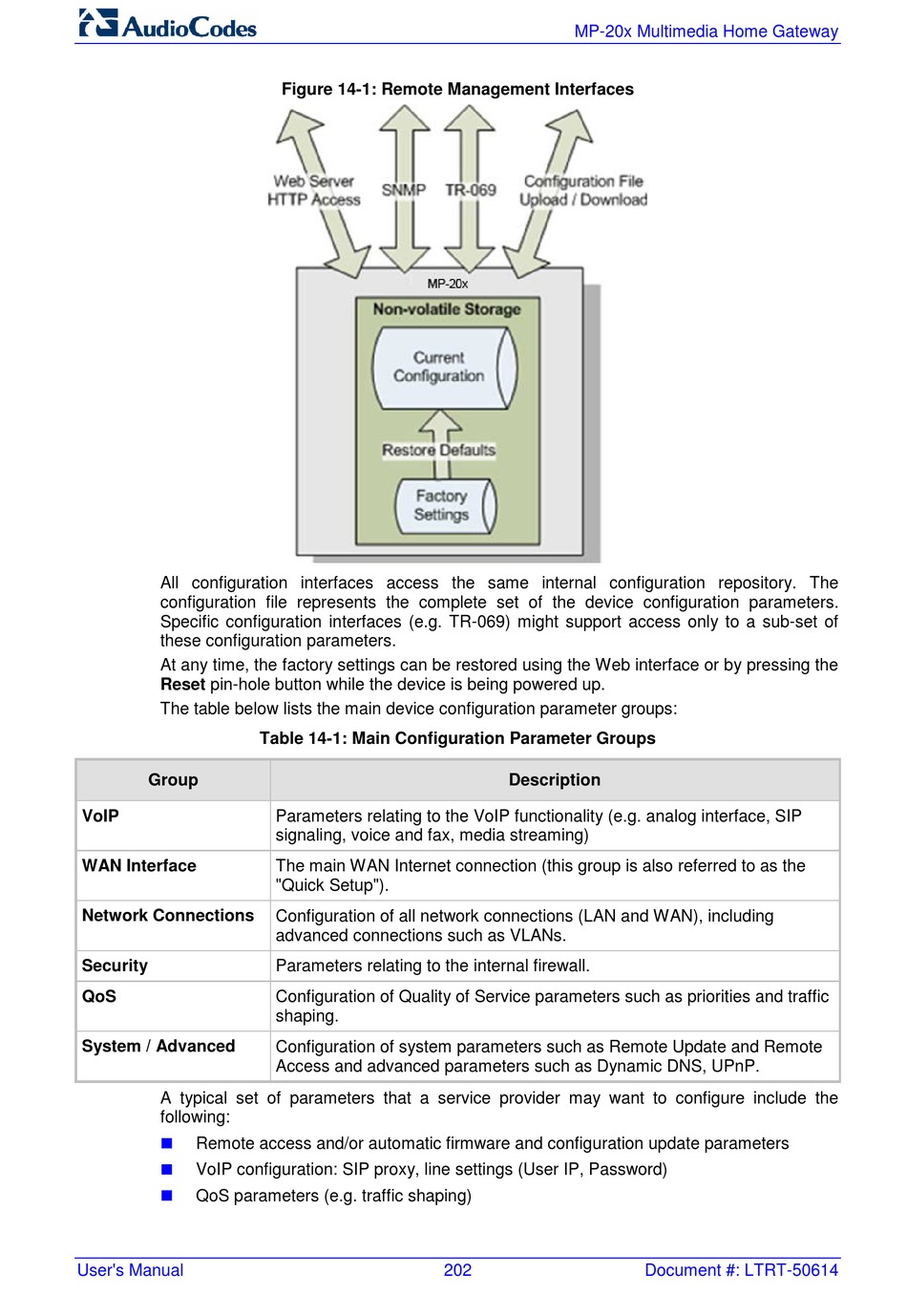

Figure 14-1: Remote Management Interfaces

Table 14-1: Main Configuration Parameter Groups

Parameters relating to the VoIP functionality (e.g. analog interface, SIP
signaling, voice and fax, media streaming)
The main WAN Internet connection (this group is also referred to as the
"Quick Setup").
Configuration of all network connections (LAN and WAN), including
advanced connections such as VLANs.
Parameters relating to the internal firewall.
Configuration of Quality of Service parameters such as priorities and traffic
shaping.
Configuration of system parameters such as Remote Update and Remote
Access and advanced parameters such as Dynamic DNS, UPnP.
MP-20x Multimedia Home Gateway
Description
202 Document #: LTRT-50614
