Diagnostics And Performance Monitoring; Running Diagnostics - AudioCodes MP-20 Series User Manual

User's Manual
21

Diagnostics and Performance Monitoring

This chapter provides diagnostics and performance monitoring procedures.
21.1

Running Diagnostics

The Diagnostics
to view statistics such as the number of packets transmitted and received, round-trip time,
and success status. The test tools are platform-dependent and are not available
simultaneously.
The Diagnostics

To access the 'Diagnostics' screen:
1. On the 'Advanced' screen, click the
2. Click the Diagnostics tab.
Version 4.4.3
icon allows you to test network connectivity. In addition, it allows you
icon displays the 'Diagnostics' screen, as described below.

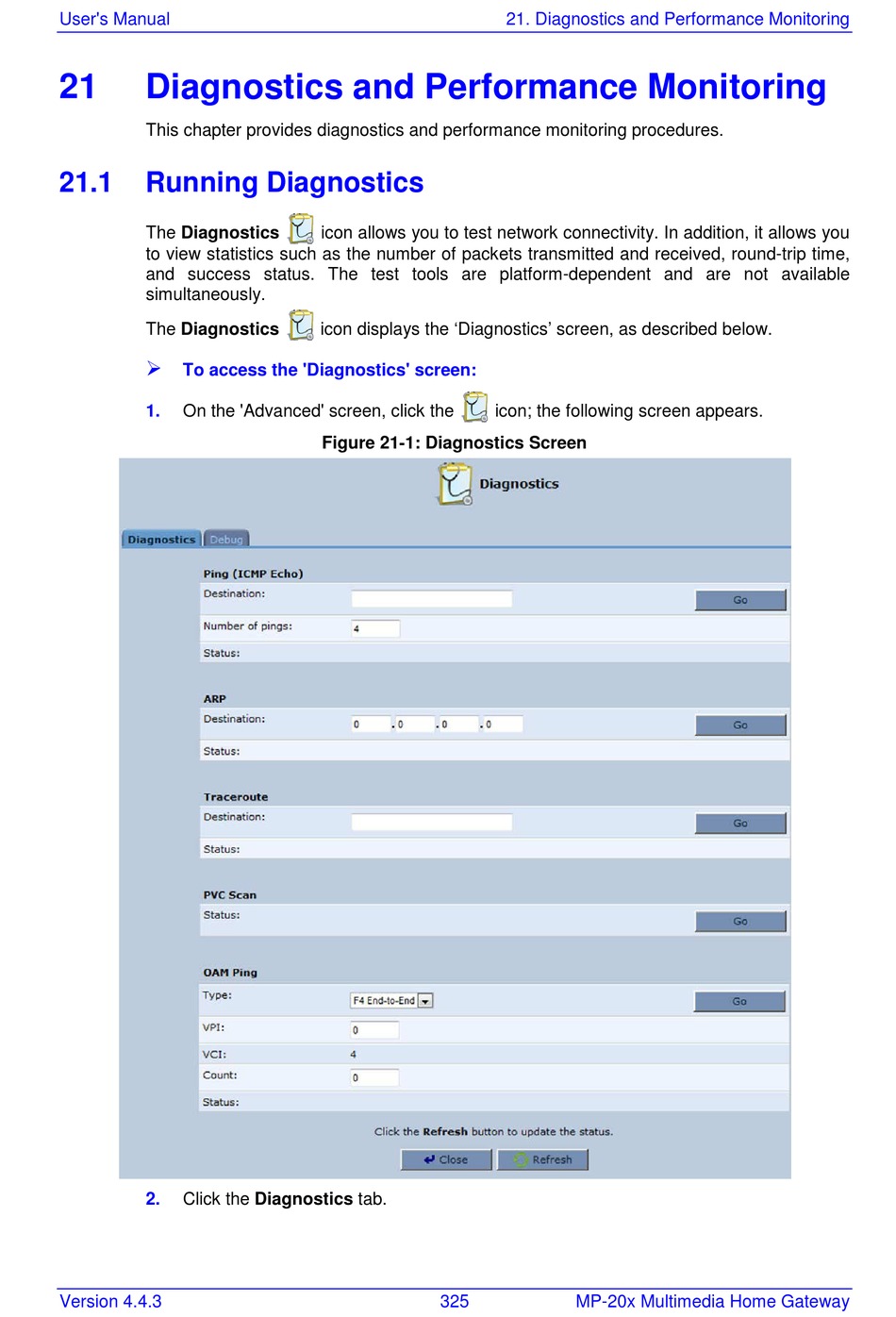

Figure 21-1: Diagnostics Screen
325
21. Diagnostics and Performance Monitoring
icon; the following screen appears.
MP-20x Multimedia Home Gateway
