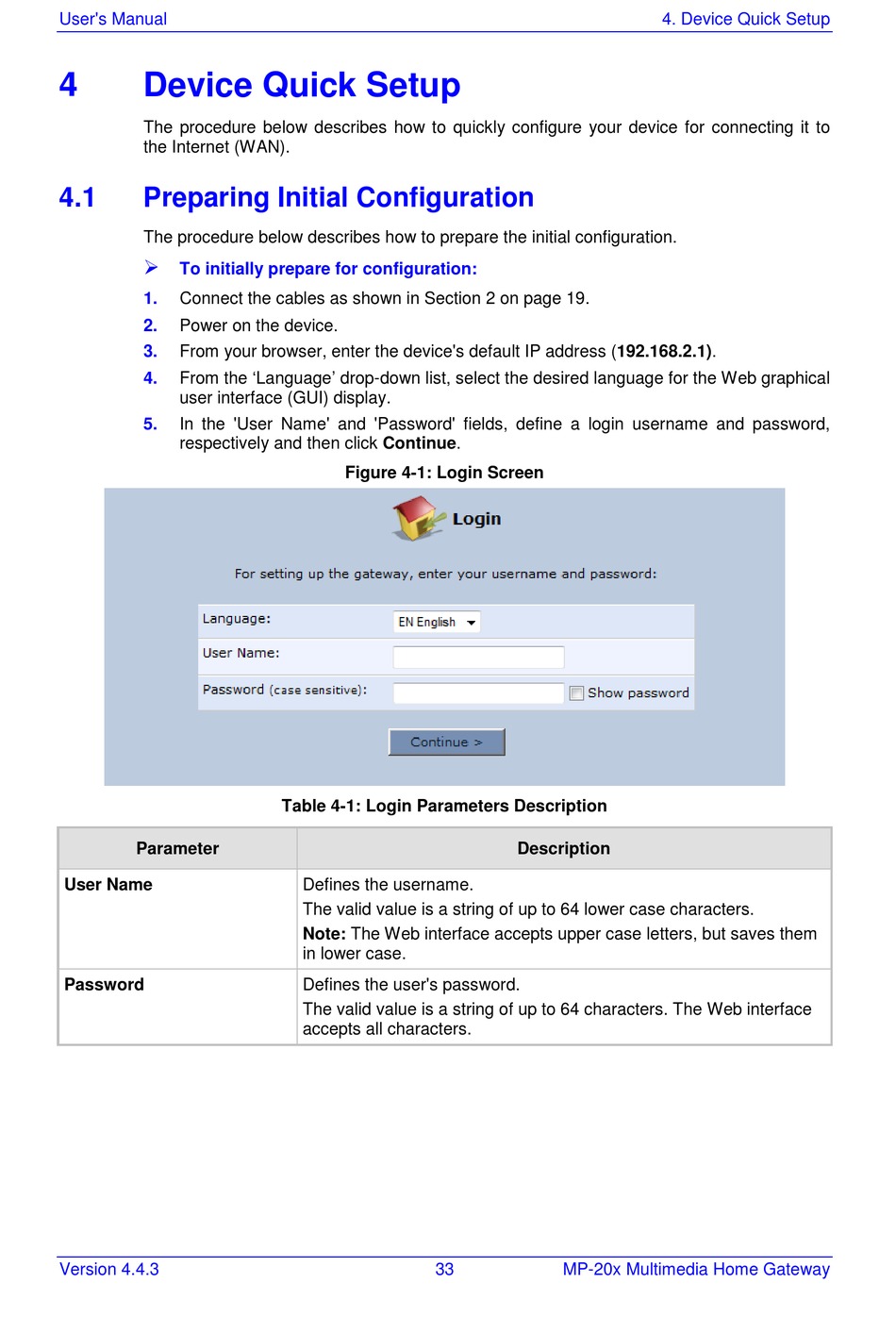

Device Quick Setup; Preparing Initial Configuration; Figure 4-1: Login Screen; Table 4-1: Login Parameters Description - AudioCodes MP-20 Series User Manual

User's Manual
4

Device Quick Setup

The procedure below describes how to quickly configure your device for connecting it to
the Internet (WAN).
4.1

Preparing Initial Configuration

The procedure below describes how to prepare the initial configuration.

To initially prepare for configuration:
1. Connect the cables as shown in Section 2 on page 19.
2. Power on the device.
3. From your browser, enter the device's default IP address (192.168.2.1).
4. From the 'Language' drop-down list, select the desired language for the Web graphical
user interface (GUI) display.
5. In the 'User Name' and 'Password' fields, define a login username and password,
respectively and then click Continue.
Parameter
User Name
Password
Version 4.4.3

Figure 4-1: Login Screen

Table 4-1: Login Parameters Description

Defines the username.
The valid value is a string of up to 64 lower case characters.
Note: The Web interface accepts upper case letters, but saves them
in lower case.
Defines the user's password.
The valid value is a string of up to 64 characters. The Web interface
accepts all characters.
33
4. Device Quick Setup
Description
MP-20x Multimedia Home Gateway
