12.2.1.1 General Tab


The General tab allows you to assign a name to this connection as well as disable or
enable the connection, by clicking the Enable or Disable buttons respectively.

12.2.1.2 Settings Tab

The Settings tab screen is displayed below:

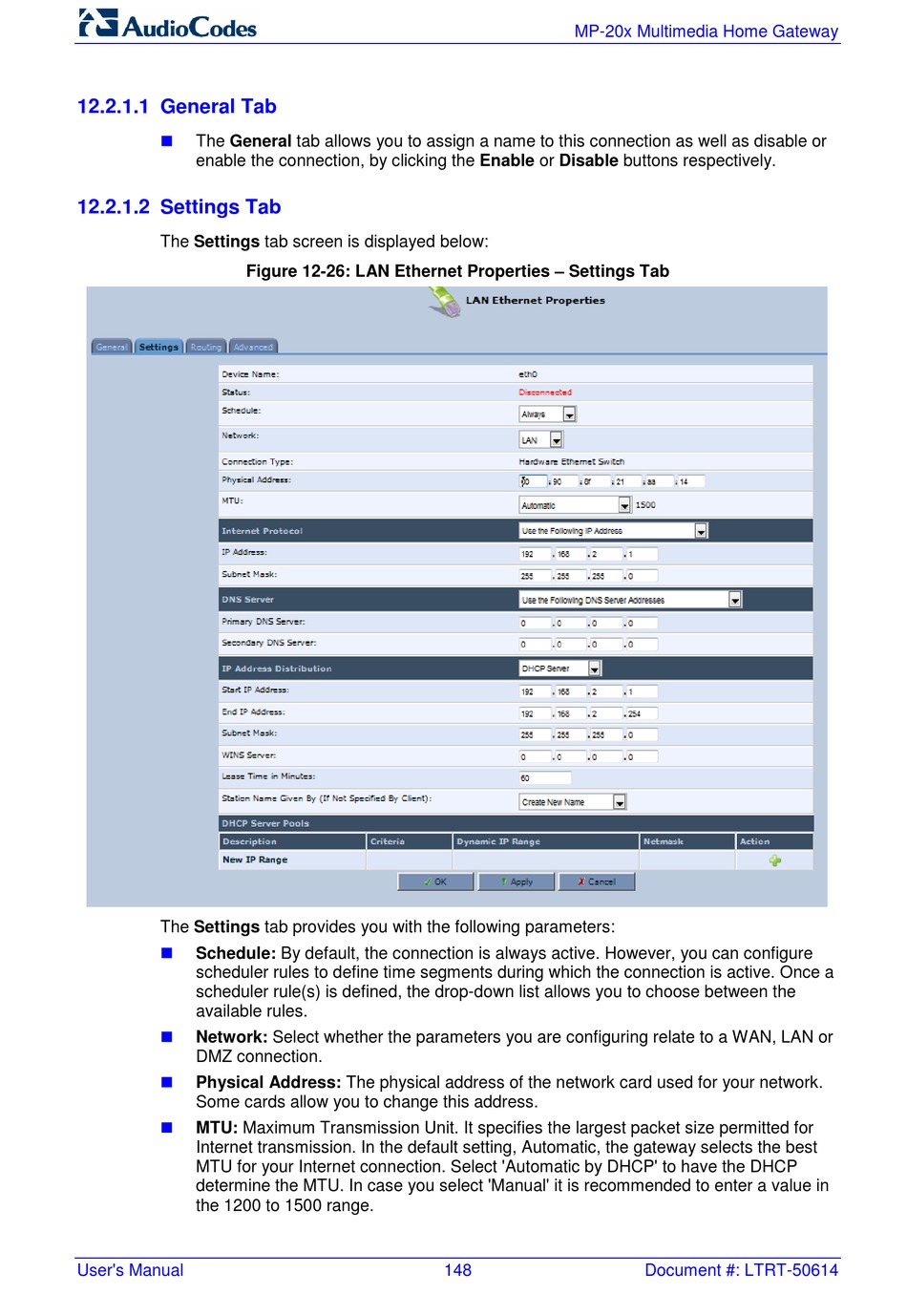

Figure 12-26: LAN Ethernet Properties – Settings Tab
The Settings tab provides you with the following parameters:

Schedule: By default, the connection is always active. However, you can configure
scheduler rules to define time segments during which the connection is active. Once a
scheduler rule(s) is defined, the drop-down list allows you to choose between the
available rules.

Network: Select whether the parameters you are configuring relate to a WAN, LAN or
DMZ connection.

Physical Address: The physical address of the network card used for your network.
Some cards allow you to change this address.

MTU: Maximum Transmission Unit. It specifies the largest packet size permitted for
Internet transmission. In the default setting, Automatic, the gateway selects the best
MTU for your Internet connection. Select 'Automatic by DHCP' to have the DHCP
determine the MTU. In case you select 'Manual' it is recommended to enter a value in
the 1200 to 1500 range.
