13.2.2.1 Internet Printing Protocol

This section describes how to connect computers to the device printers, using the IPP
protocol.
13.2.2.1.1 Setting Up an IPP Printer on Windows
The procedure below describes how to set up an IPP printer on Windows XP.

To set up an IPP printer on Windows:
1. In the 'Network Map' screen, click the printer icon to view the 'Printer' screen.
2. Copy the IPP URL to the clipboard.
3. On your Windows computer connected to the device, from the Start menu, point to
Settings, then Printers and Faxes, and then click Add Printer; the Add Printer
Wizard starts.
4. Click Next to proceed with the wizard sequence.
5. Select 'A network printer...' and then click Next.
Version 4.4.3

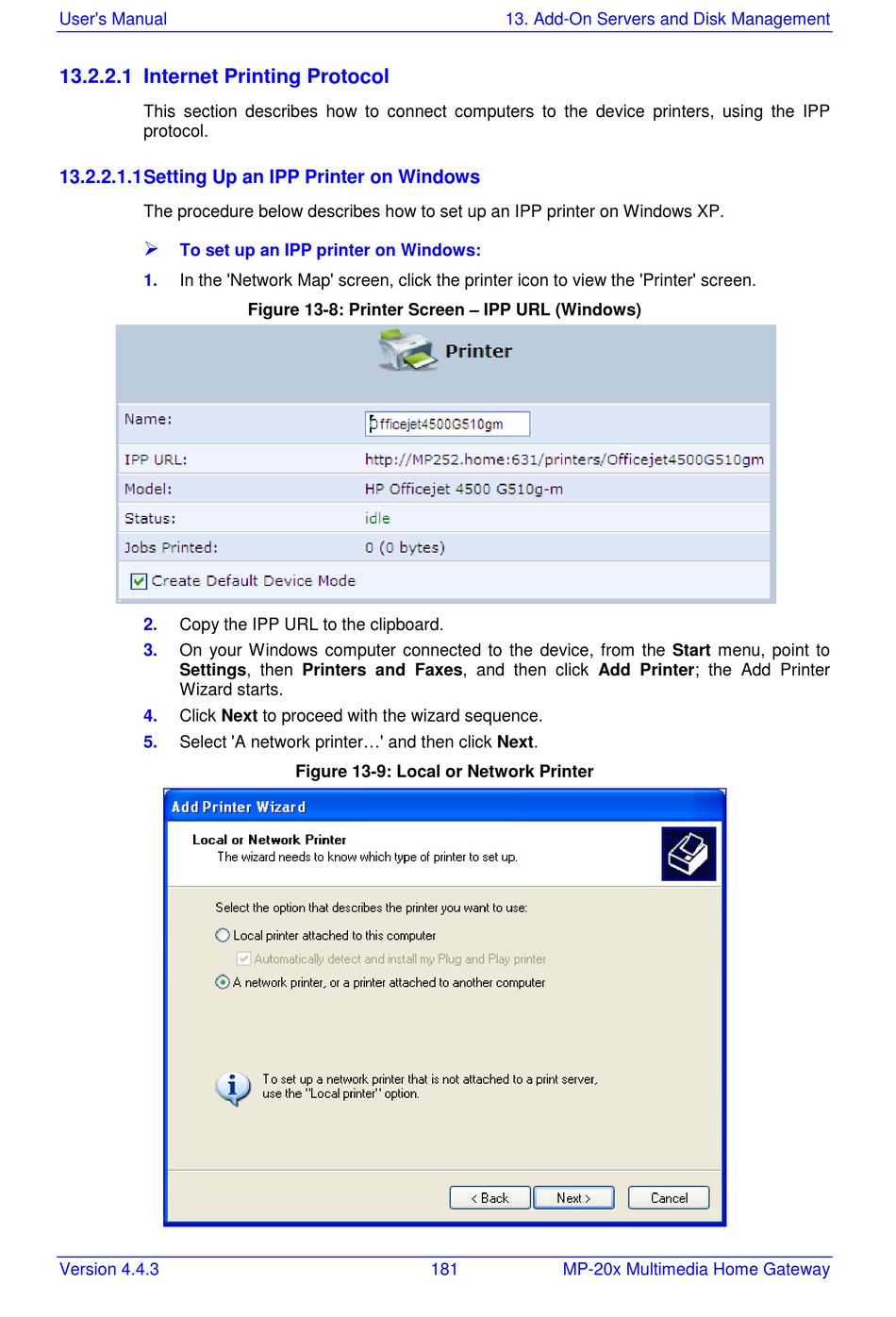

Figure 13-8: Printer Screen – IPP URL (Windows)
Figure 13-9: Local or Network Printer
