User's Manual
4.
To change the displayed name of the printer, in the 'Name' field, enter a new name.
5.
To set the printer as the default printer, select the 'Create Default Device Mode' check
box.
13.2.1 Connecting and Setting up a Printer on Windows
The procedure below describes how to set up a network printer that is connected to the
device USB port and shared by all LAN computers, running on the Windows operating
system.
Note:
to use the network printer.
To set up a printer running on Windows:
1.
Download the print driver to your computer.
2.
Access the device LAN network where the disk and printer shares available on the
device are displayed:
Version 4.4.3

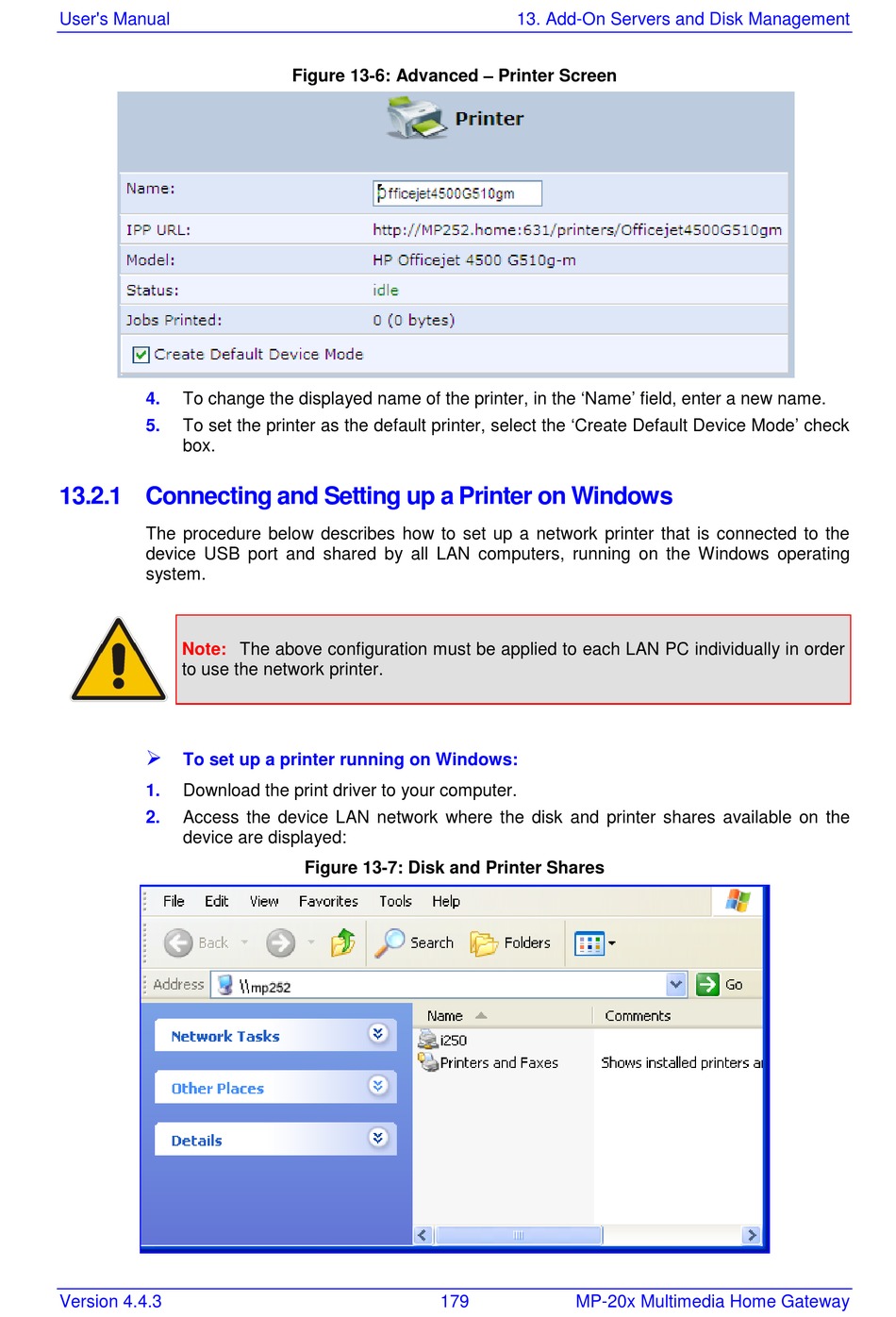

Figure 13-6: Advanced – Printer Screen
The above configuration must be applied to each LAN PC individually in order
Figure 13-7: Disk and Printer Shares
13. Add-On Servers and Disk Management
179
MP-20x Multimedia Home Gateway
