User's Manual
12.2

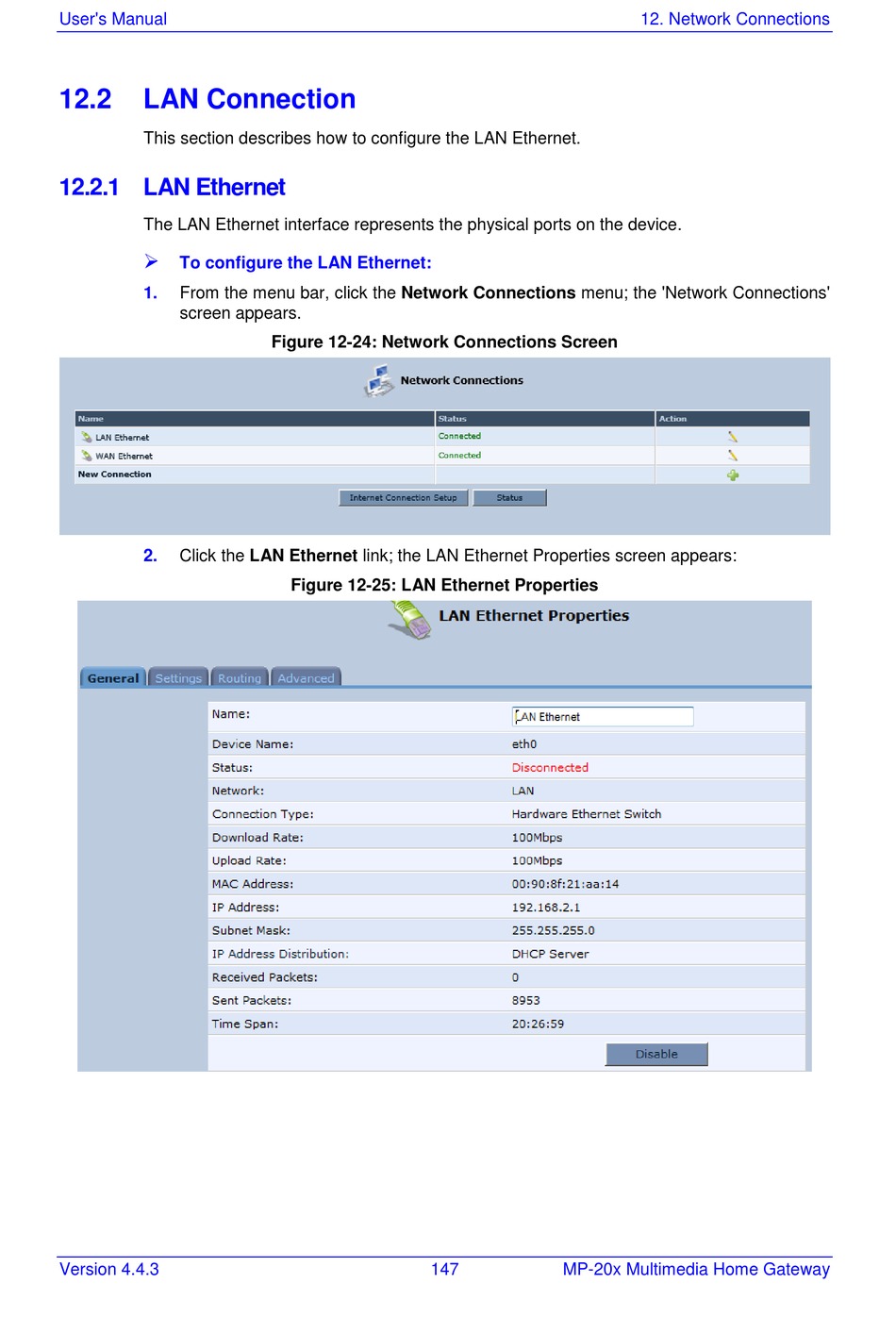

LAN Connection
This section describes how to configure the LAN Ethernet.
12.2.1 LAN Ethernet
The LAN Ethernet interface represents the physical ports on the device.
To configure the LAN Ethernet:
1.
From the menu bar, click the Network Connections menu; the 'Network Connections'
screen appears.
2.
Click the LAN Ethernet link; the LAN Ethernet Properties screen appears:
Version 4.4.3
Figure 12-24: Network Connections Screen
Figure 12-25: LAN Ethernet Properties
147
12. Network Connections
MP-20x Multimedia Home Gateway
