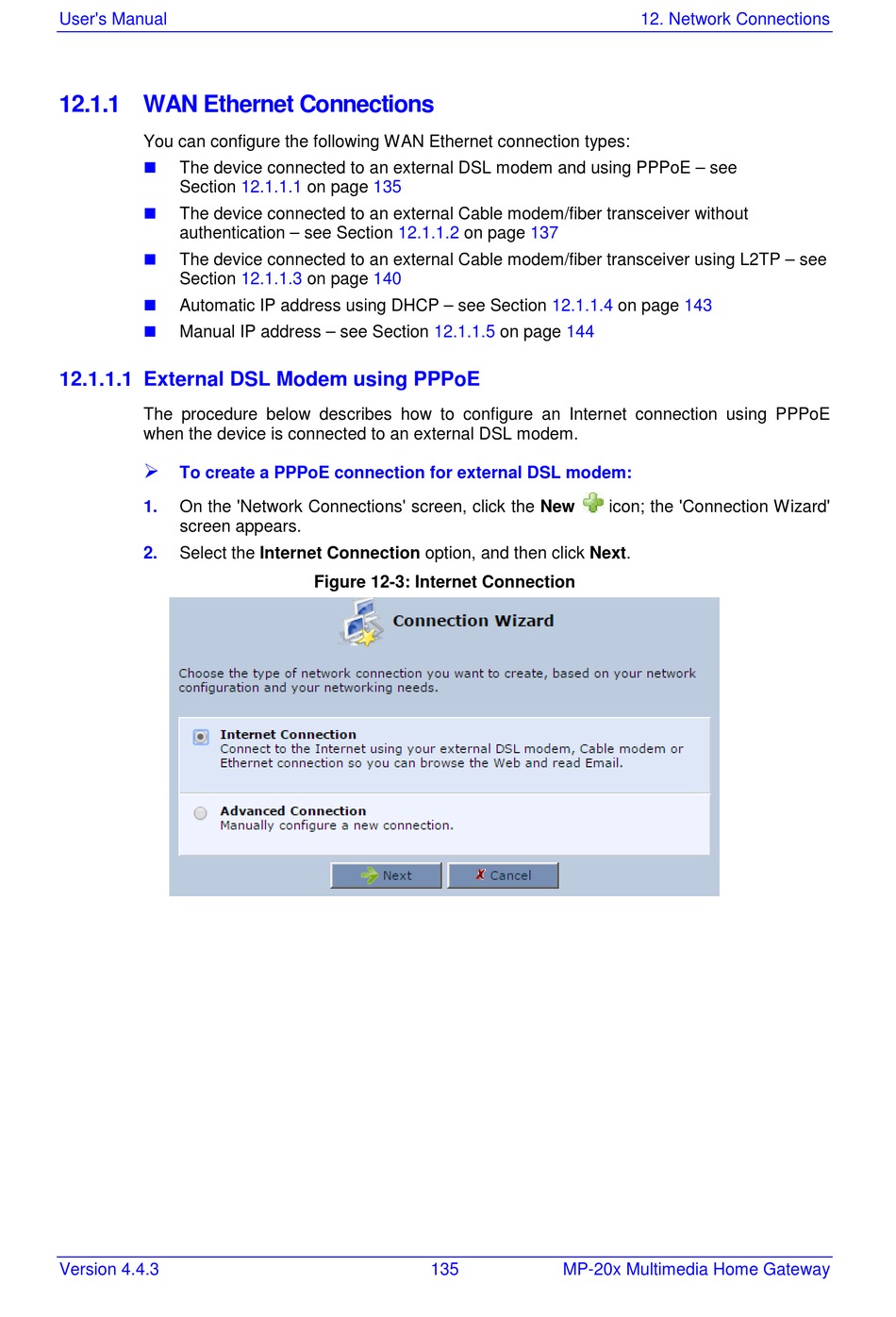

12.1.1 WAN Ethernet Connections

You can configure the following WAN Ethernet connection types:

The device connected to an external DSL modem and using PPPoE – see
Section

The device connected to an external Cable modem/fiber transceiver without
authentication – see Section

The device connected to an external Cable modem/fiber transceiver using L2TP – see
Section

Automatic IP address using DHCP – see Section

Manual IP address – see Section

12.1.1.1 External DSL Modem using PPPoE

The procedure below describes how to configure an Internet connection using PPPoE
when the device is connected to an external DSL modem.

To create a PPPoE connection for external DSL modem:
1. On the 'Network Connections' screen, click the New
screen appears.
2. Select the Internet Connection option, and then click Next.
