MP-20x provides LEDs on the front panel for indicating various operating status, as described in the
table below:
LED Color
Green
POWER
-
Green
STATUS
Red
Green
PHONE
1- 4
Red
-
Yellow
LAN /
WAN
Green
-
Green
USB
-
User's Manual

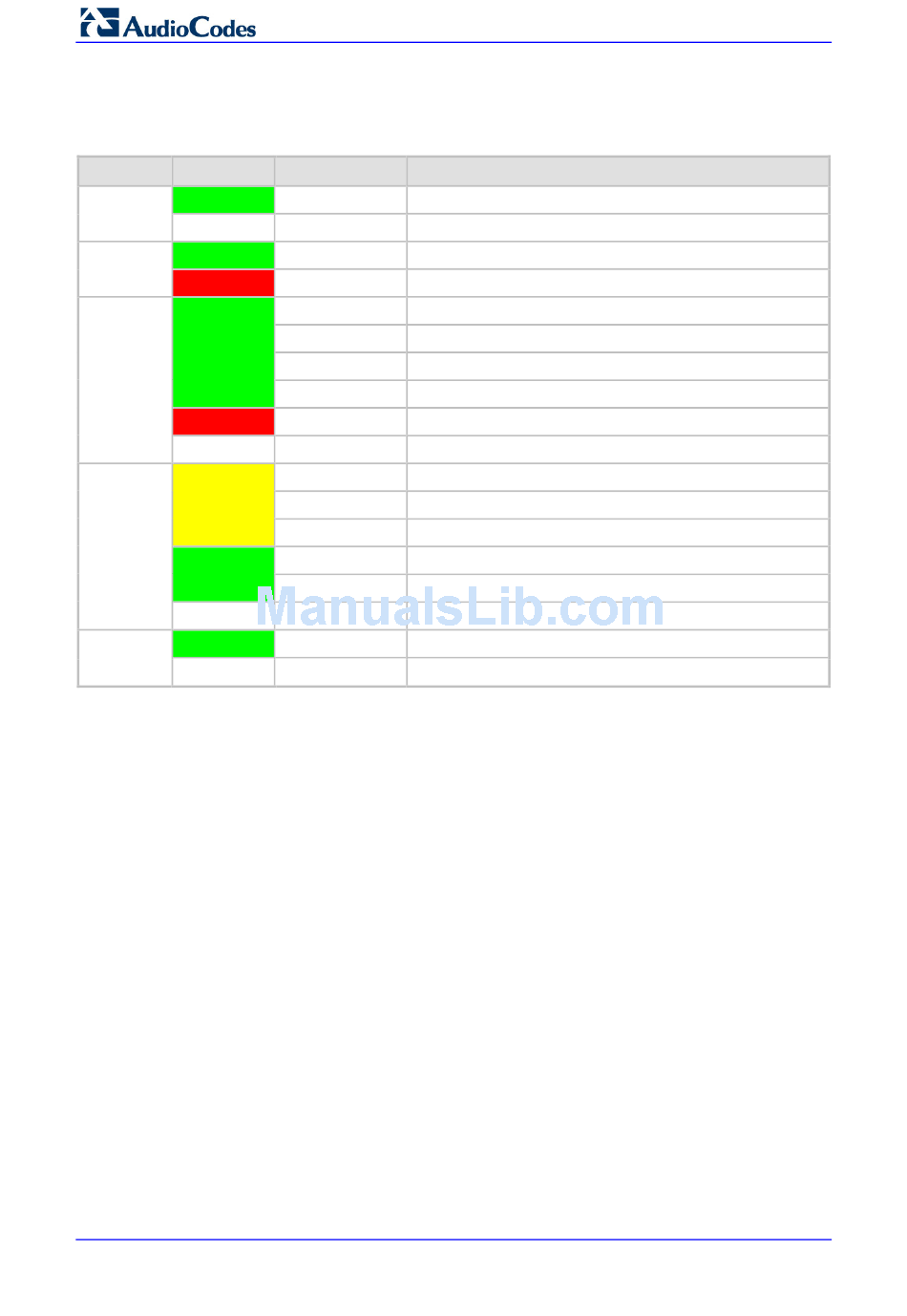

Table 2-1: MP-204B LEDs Description

State
On Power received by MP-20x
Off MP-20x has been powered off
On System start-up successful
On Reboot (automatic, by default)
Type 1 Blinking Idle Proxy register ok
On Off-hook
Type 2 Blinking Phone ringing
Type 3 Blinking Upgrade in process (all LEDs including STATUS LED)
On Idle Proxy register failed
Off On-hook and not ringing, not using Proxy
Steady On Connected at 10 Mbps
Steady On Connected at 100 Mbps
Blinking Activity - there is traffic on 10/100 Mbps
Steady On Connected at 1000 Mbps
Blinking Activity - there is traffic on 1000 Mbps
Off Disconnected
On USB device is connected
Off No USB device is connected
20
MP-20x Multimedia Home Gateway
Description
