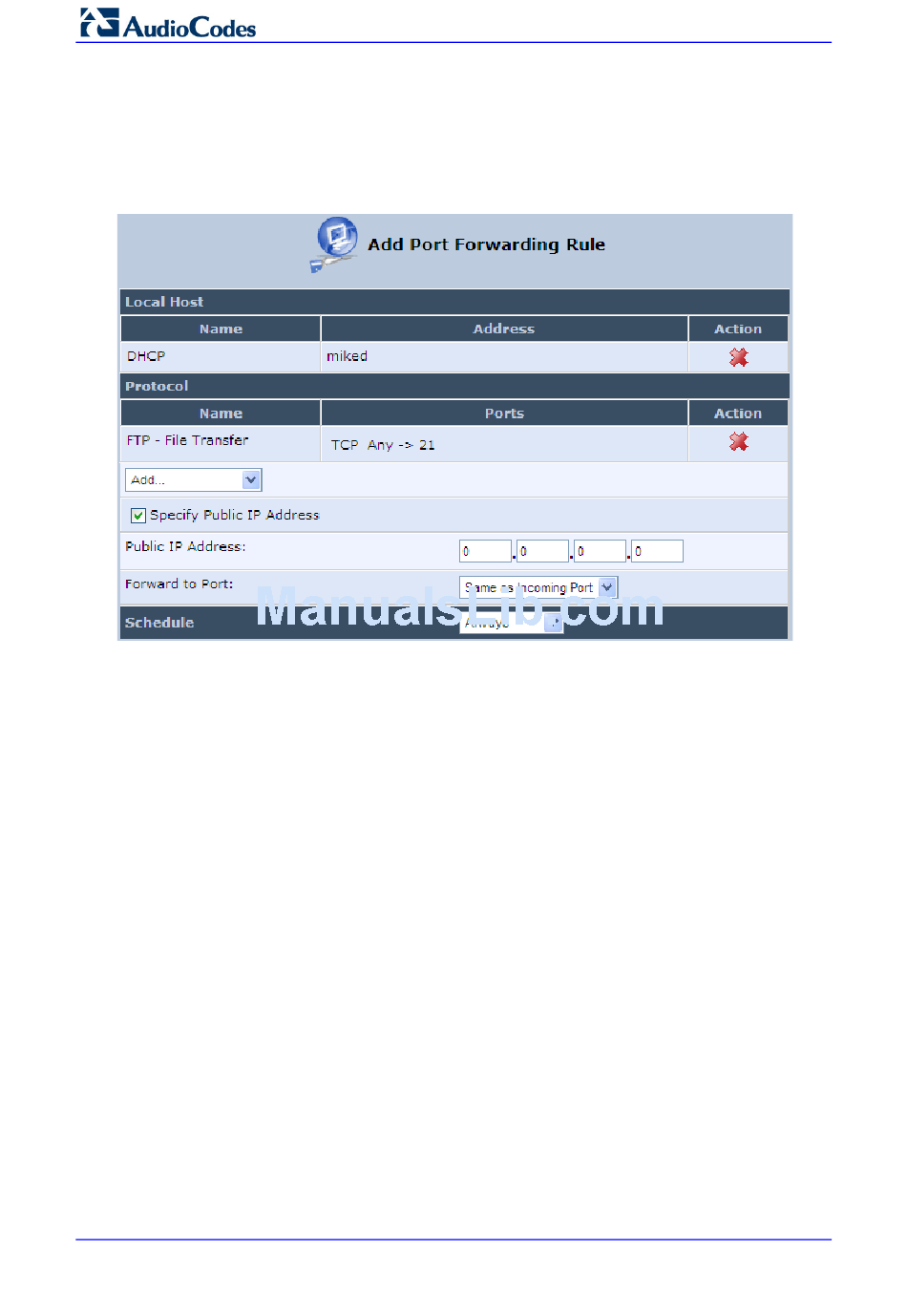

Figure 15-8: Specifying Public Ip Address - AudioCodes MP-20 Series User Manual

5. Click the Advanced button to configure advanced settings:
a. Select the 'Specify Public IP Address' check box if you want to apply this rule on
the device's non-default IP address defined in the 'NAT' screen (see Section
on page 253). Enter the additional external IP address in the 'Public IP Address'
field.
b. By default, the device forwards traffic to the same port as the incoming port. If
you wish to redirect traffic to a different port, then from the 'Forward to Port' drop-
down list, select the 'Specify', and then enter the port number in the field
provided.
c. By default, the rule is always active. However, you can select a schedule rule that
defines the time during which the rule may be active. From the 'Schedule' drop-
down list, select a defined Schedule rule (defined in Section
define a new one quickly by selecting 'User Defined'.
User's Manual

Figure 15-8: Specifying Public IP Address

244
MP-20x Multimedia Home Gateway
5.6.1 on page 55) or
Document #: LTRT-50614
15.7
