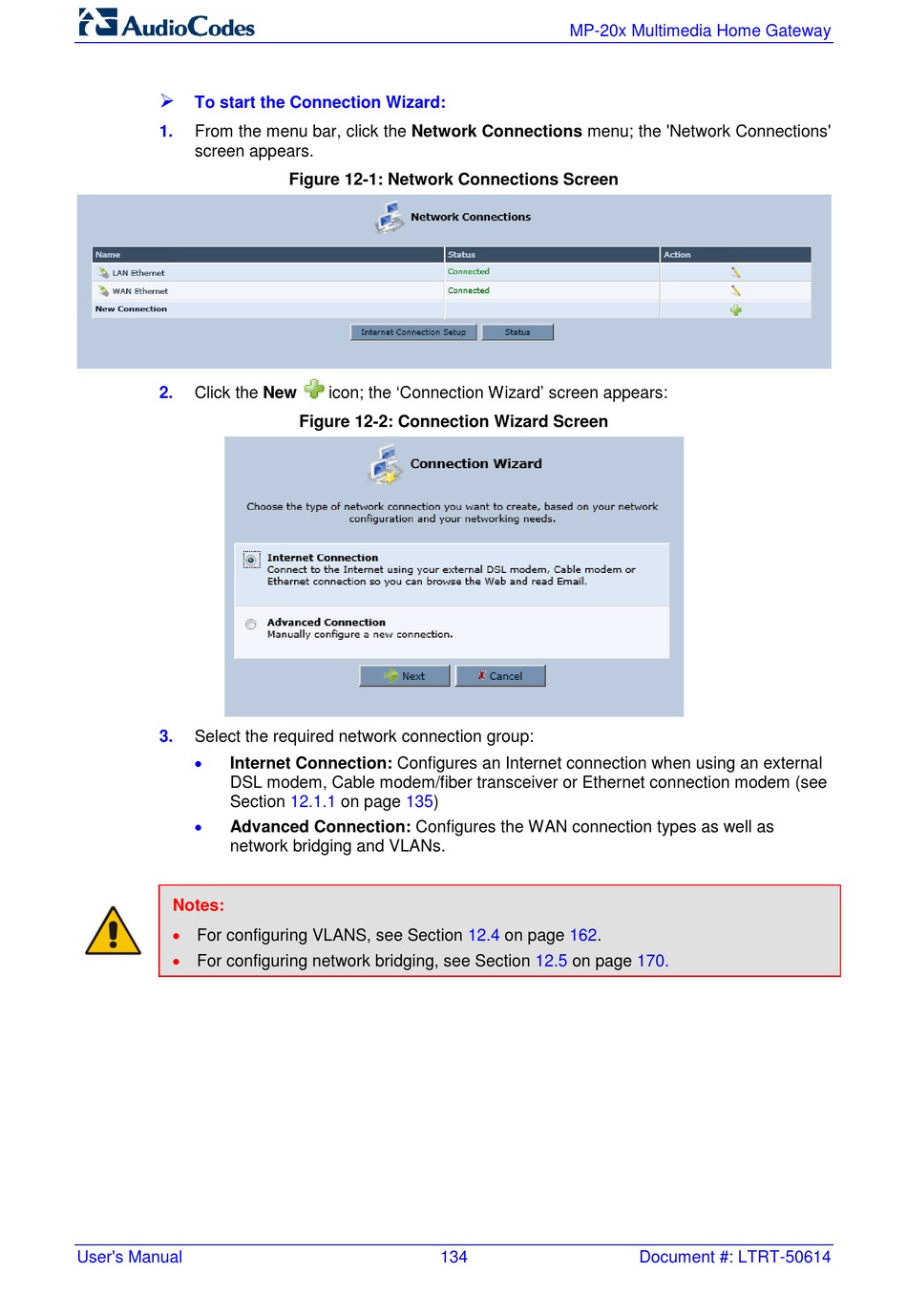

Figure 12-1: Network Connections Screen - AudioCodes MP-20 Series User Manual


To start the Connection Wizard:
1. From the menu bar, click the Network Connections menu; the 'Network Connections'
screen appears.
2. Click the New
3. Select the required network connection group:
•
Internet Connection: Configures an Internet connection when using an external
DSL modem, Cable modem/fiber transceiver or Ethernet connection modem (see
Section
•
Advanced Connection: Configures the WAN connection types as well as
network bridging and VLANs.
Notes:
•
For configuring VLANS, see Section
•
For configuring network bridging, see Section
User's Manual

Figure 12-1: Network Connections Screen

icon; the 'Connection Wizard' screen appears:
Figure 12-2: Connection Wizard Screen
12.1.1 on page 135)
134
MP-20x Multimedia Home Gateway
12.4 on page 162.
12.5 on page 170.
