4.2

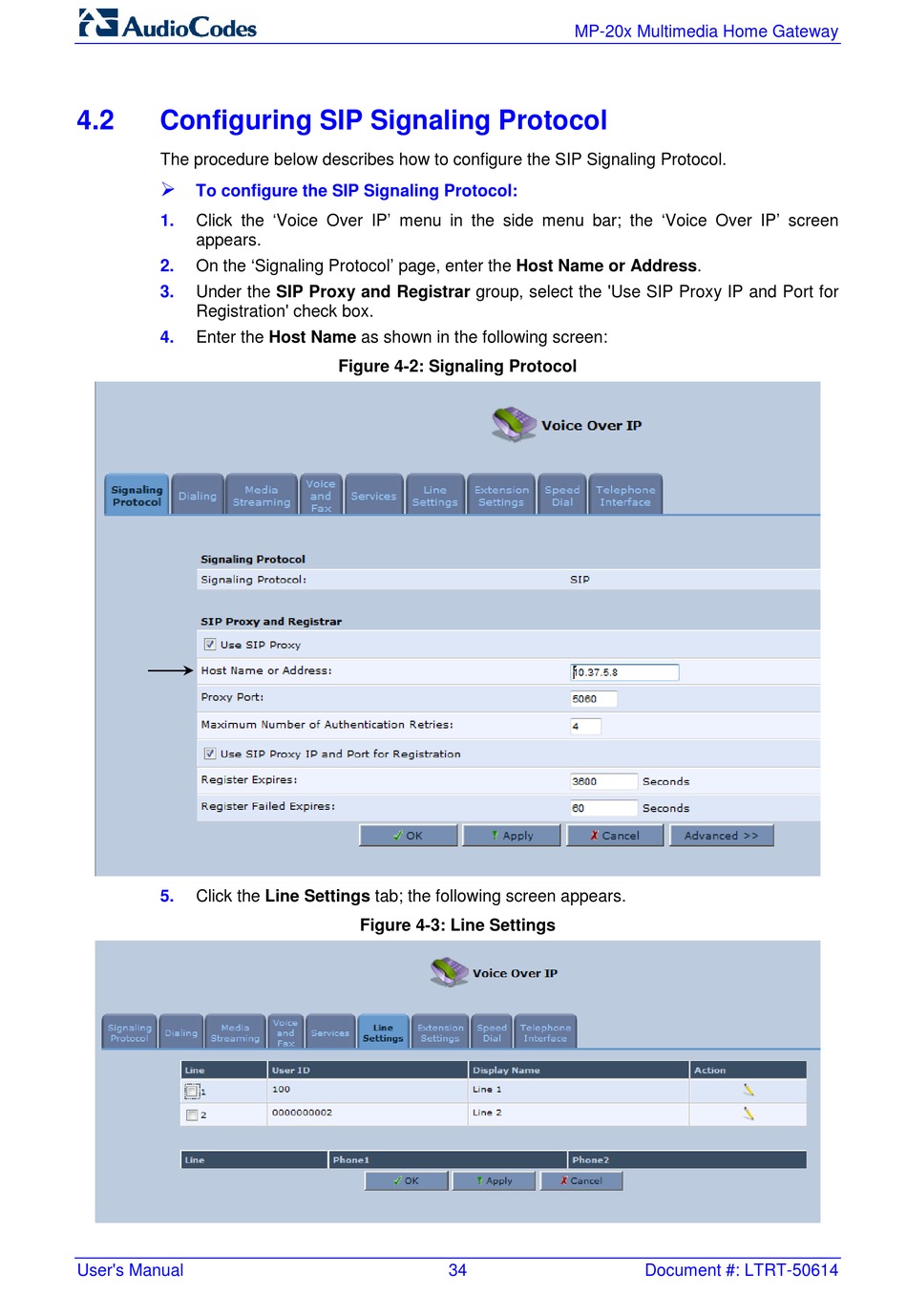

Configuring SIP Signaling Protocol
The procedure below describes how to configure the SIP Signaling Protocol.
To configure the SIP Signaling Protocol:
1.
Click the 'Voice Over IP' menu in the side menu bar; the 'Voice Over IP' screen
appears.
2.
On the 'Signaling Protocol' page, enter the Host Name or Address.
3.
Under the SIP Proxy and Registrar group, select the 'Use SIP Proxy IP and Port for
Registration' check box.
4.
Enter the Host Name as shown in the following screen:
5.
Click the Line Settings tab; the following screen appears.
User's Manual
Figure 4-2: Signaling Protocol
Figure 4-3: Line Settings
34
MP-20x Multimedia Home Gateway
Document #: LTRT-50614
