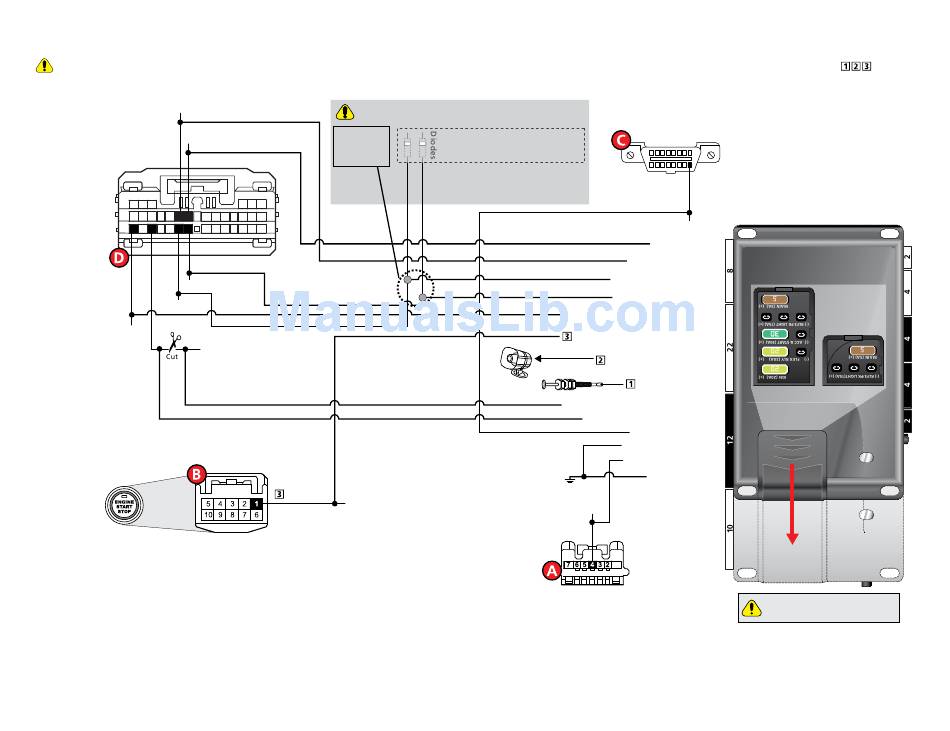

Type 6 - Directed DS4+ Installation Manual

Type 6

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
HS CAN High: Pin 14
HS CAN Low: Pin 13
Body ECU 6 5 4
(White connector
18 17 16 15 14 13 11
12
at dash fuse box)
30 30 29 28
27 26 25 24 23
BTX: Pin 25
BRX: Pin 26
(-) Parking Lights:
pin 30
(-) Autolights:
Pin 28
Push-To-Start
(Black connector at PTS switch)
20
Solder onto a diode, cut away the unneeded
portion, and then insert into empty pin as shown.
Solder the
wire to secure
it on the metal
pin.
3 2 1
10 9 8 7
21 20 19
22
(-) PTS: Pin 1
This part can be removed because
only the metal pin is needed to
secure the contact in the empty pin.
HS CAN High: Tan/Black: 2
Immo. Data 2: Orange/Black: 7
Immo. Data 1: Yellow/Black: 8
(-) Parking Lights Output: Lt.Green/Black: 1
(-) Push-to-Start Output: Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
Autolight Interrupt (veh.side): Blue/White: 1
Autolight Interrupt (conn.side): Blue: 3
(+) 12V Input: Red: 6 &12
(-) Ground: Lt.Green/Red: 7
(-) SLP Output: Lt. Green: 8
(-) SLP:
Pin 4
Steering Lock
(Black connector under steering column)
Diagnostic Connector OBDII
1 8
(connector side view)
9 16
(+) 12V: Pin 16
HS CAN Low: Tan: 1
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(-) Ground: Black: 10
Slide
to open
It is important to check that the
fuses are positioned correctly.
