Directed DS4+ Installation Manual page 28

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Prius V (Smart Key) 2017
PTS
12V
Parking Lights
BRX
BTX
HS CAN High
HS CAN Low
28
Color Pin Polarity
White 5 (-)
White 1 (+)
Yellow 30 (-)
Violet 25 Data
Green 26 Data
Lt. Blue 14 Data
White 13 Data

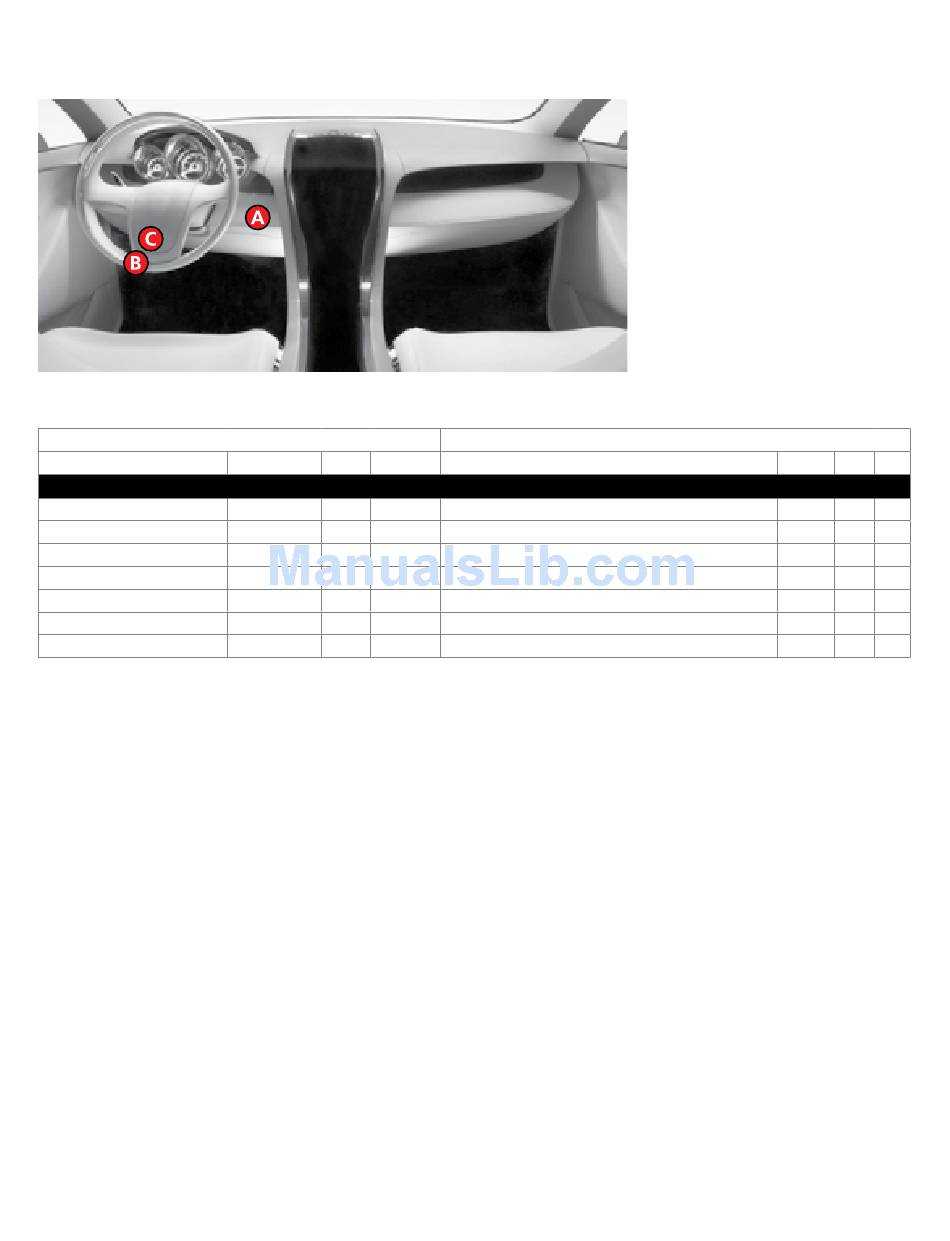

Connector Information
Location
PTS (Push-to-Start) switch.
Main Body ECU.
Main Body ECU.
Main Body ECU.
Main Body ECU.
Main Body ECU.
Main Body ECU.
Color Pins Ref.
Black 10 A
White 1 B
White 30 C
White 30 C
White 30 C
White 30 C
White 30 C
DS4+ TL6
