Directed DS4+ Installation Manual page 12

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Lexus GS 350 (Smart Key) 2013-2015
SLP
PTS
12V
Lock
Unlock
Trunk Release
HS CAN High
HS CAN Low
BTX
BRX
Parking Lights
Autolights
Lexus GS 450h (Smart key) 2013-2015
SLP
PTS
12V
Lock
Unlock
Trunk Release
HS CAN High 1
HS CAN Low 1
BTX
BRX
Parking Lights
Autolights
12
Color Pin Polarity
Blue 4 (-)
Green 1 (-)
Yellow 16 (+)
Gray 16 (-)
Violet 24 (-)
Yellow 8 (-)
Pink or White 14 Data
Violet 13 Data
Black 25 Data
White or Green 26 Data
Black 30 (-)
Red 28 Cut
Blue 4 (-)
Green 1 (-)
Yellow 16 (+)
Gray 16 (-)
Violet 24 (-)
Yellow 8 (-)
Pink or White 14 Data
Violet 13 Data
Black 25 Data
White or Green 26 Data
Black 30 (-)
Red 28 Cut

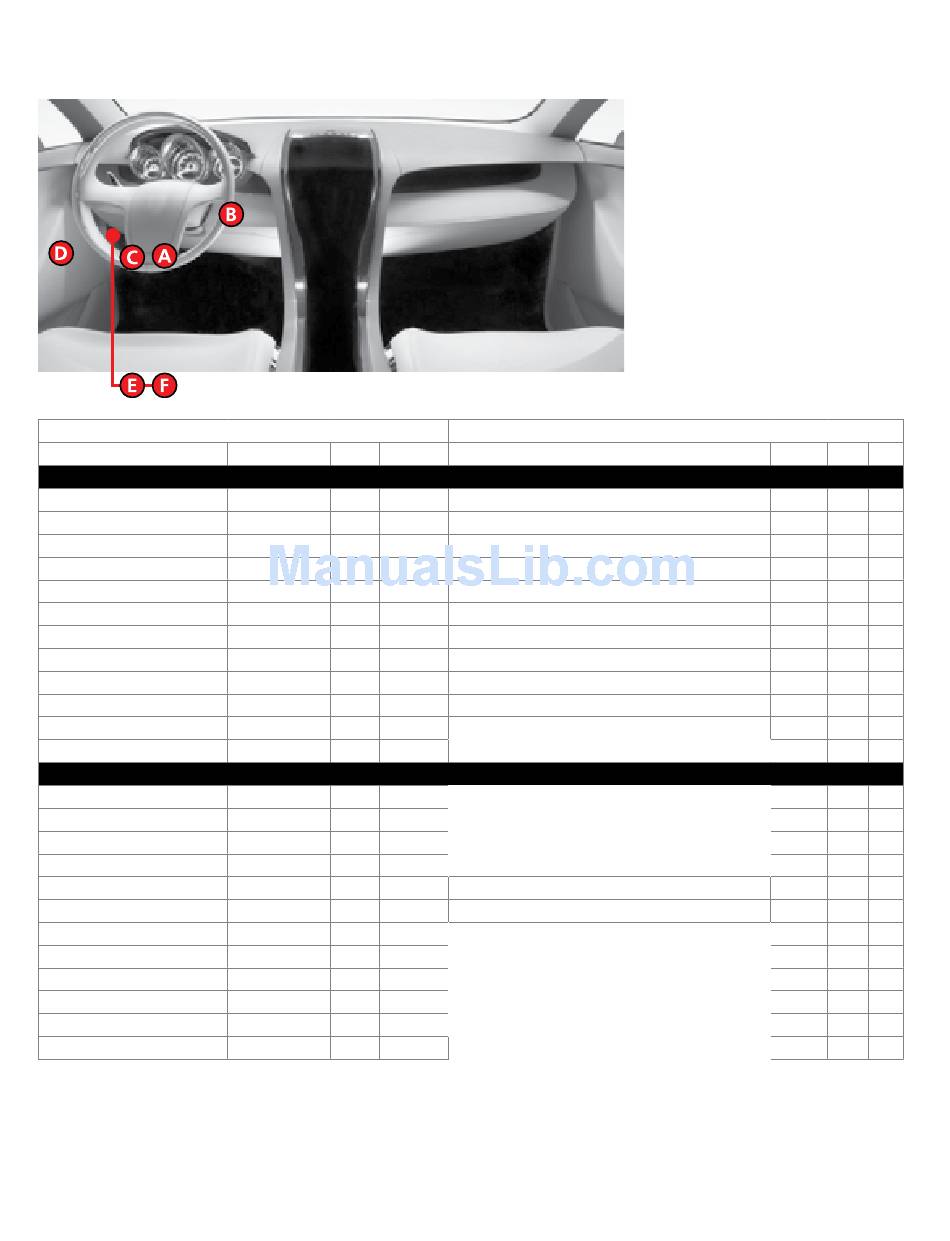

Connector Information
Location
Steering lock under steering column.
PTS (Push-to-Start) switch.
OBDII.
DDM (Driver Door Module).
DDM (Driver Door Module).
Body ECU on dash fuse box. Bottom connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Steering lock under steering column.
PTS (Push-to-Start) switch.
OBDII.
DDM (Driver Door Module).
DDM (Driver Door Module).
Body ECU on dash fuse box. Bottom connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Color Pins Ref.
Black 7 A
Black 10 B
Black 16 C
White 24 D
White 24 D
White 28 E
White 30 F
White 30 F
White 30 F
White 30 F
White 30 F
White 30 F
Black 7 A
Black 10 B
Black 16 C
White 24 D
White 24 D
White 28 E
White 30 F
White 30 F
White 30 F
White 30 F
White 30 F
White 30 F
DS4+ TL6
