Type 4 - Directed DS4+ Installation Manual

Type 4

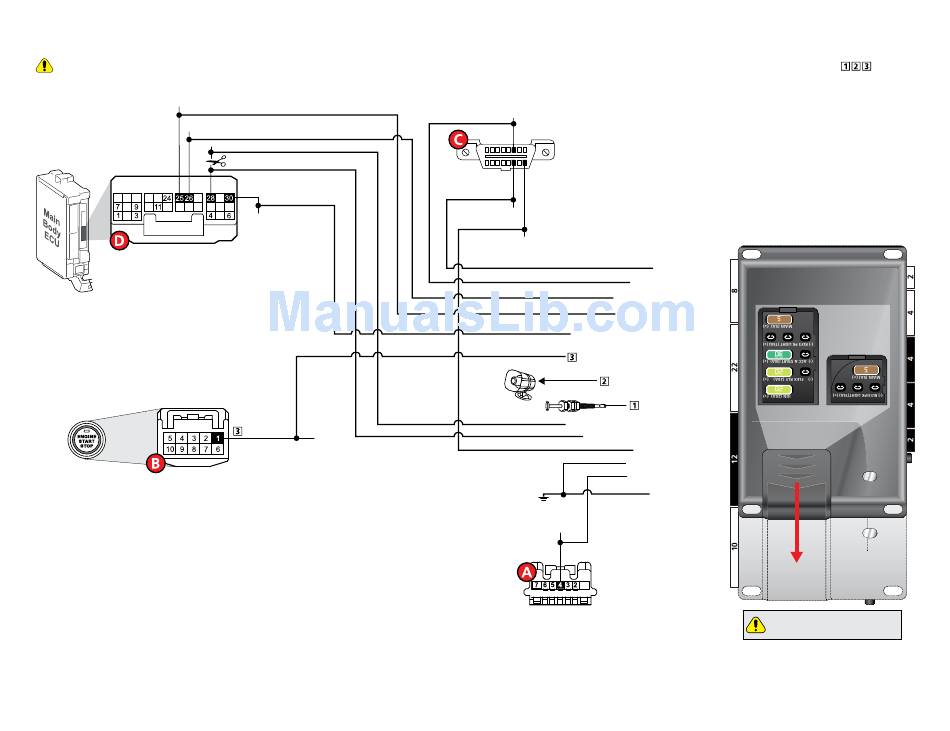

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
BTX: Pin 25
BRX: Pin 26
Body ECU
(White connector
at dash fuse box)
19 20 21 22 23 27
8 10 12 13 14 15 16 17
2
Black
Connector
Push-To-Start
(Black connector at PTS switch)
15
(-) Autolights: Pin 28
Cut
29
(-) Parking Lights: Pin 30
18
5
(-) PTS: Pin 1
HS CAN High: Pin 6
Diagnostic Connector OBDII
1 8
(connector side view)
9 16
(+) 12V: Pin 16
HS CAN Low:
White, pin 14
HS CAN High: Tan/Black: 2
Immo. Data 2: Orange/Black: 7
Immo. Data 1: Yellow/Black: 8
(-) Parking Lights Output: Lt.Green/Black: 1
(-) Push-to-Start Output: Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren Hood Pin
(-) Hood Input: Gray: 21
Autolight Interrupt (veh. side): Blue/White: 1
Autolight Interrupt (conn. side): Blue: 3
(+) 12V Input: Red: 6 &12
(-) Ground: Lt.Green/Red: 7
(-) SLP Output: Lt. Green: 8
(-) SLP:
Pin 4
Steering Lock
(Black connector under steering column)
HS CAN Low: Tan: 1
DS4+
Proper Fuse
Positioning
(-) Ground: Black: 10
Slide
to open
It is important to check that the
fuses are positioned correctly.
