Directed DS4+ Installation Manual page 14

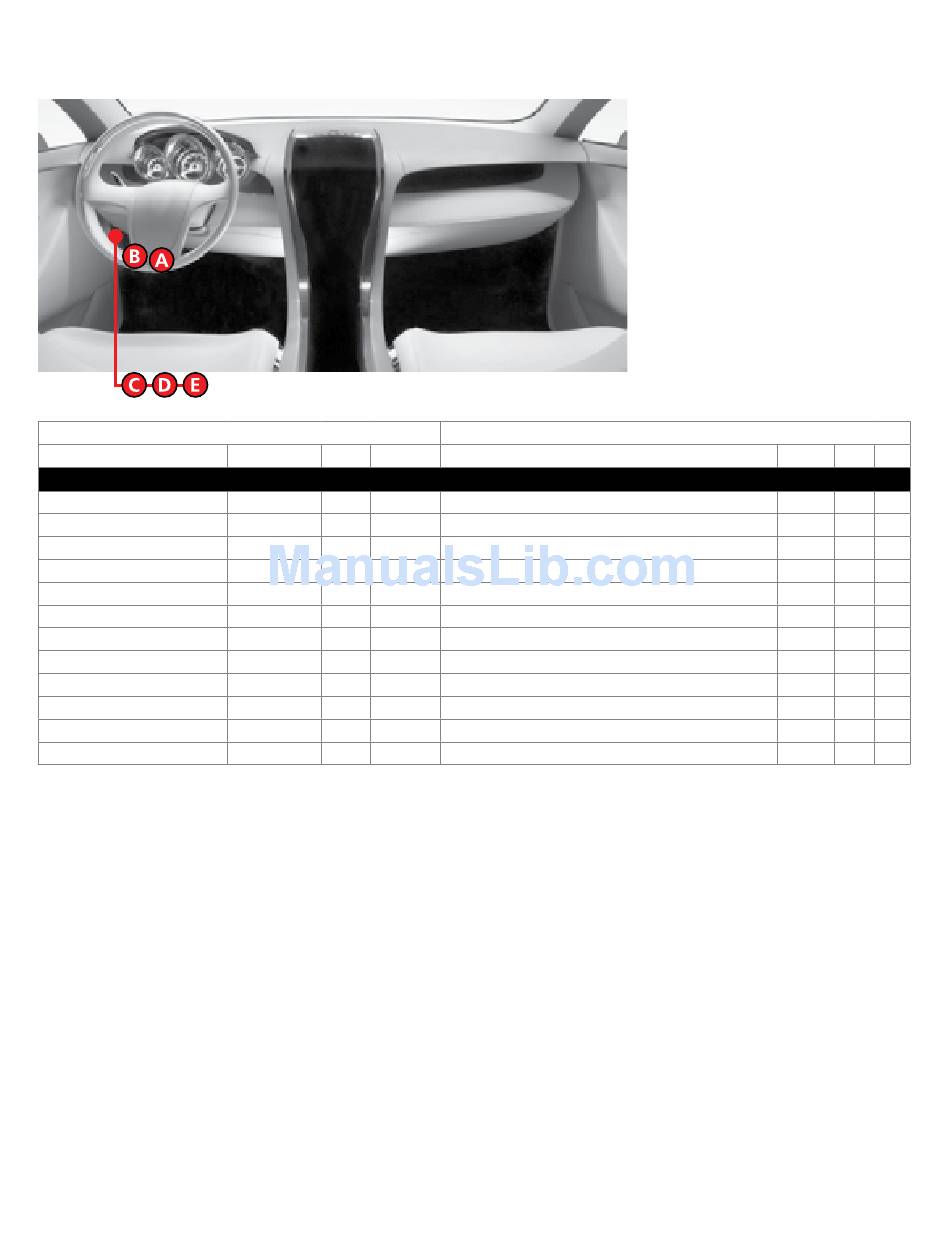

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Lexus ES 300h (Smart Key) 2013-2015
SLP
HS CAN High
HS CAN Low
12V
Trunk Release
BTX
BRX
Parking Lights
Autolights
Lock
Unlock
PTS
14
Color Pin Polarity
Pink 4 (-)
Blue 6 Data
White 14 Data
Blue 16 (+)
Red 5 (-)
Blue 25 Data
Red 26 Data
White 30 (-)
Green 28 Cut
Red 11 (-)
Gray 24 (-)
Violet 17 (-)
Connector Information
Location
Steering lock under steering column.
OBDII.
OBDII.
OBDII.
Body ECU on dash fuse box. Bottom connector.
Body ECU on dash fuse box. Middle connector.
Body ECU on dash fuse box. Middle connector.
Body ECU on dash fuse box. Middle connector.
Body ECU on dash fuse box. Middle connector.
Body ECU on dash fuse box. Middle connector.
Body ECU on dash fuse box. Middle connector.
Power management ECU left of dash fuse box.
Color Pins Ref.
Black 7 A
Black 16 B
Black 16 B
Black 16 B
White 28 C
White 30 D
White 30 D
White 30 D
White 30 D
White 30 D
White 30 D
Gray 31 E
DS4+ TL6
