Directed DS4+ Installation Manual page 19

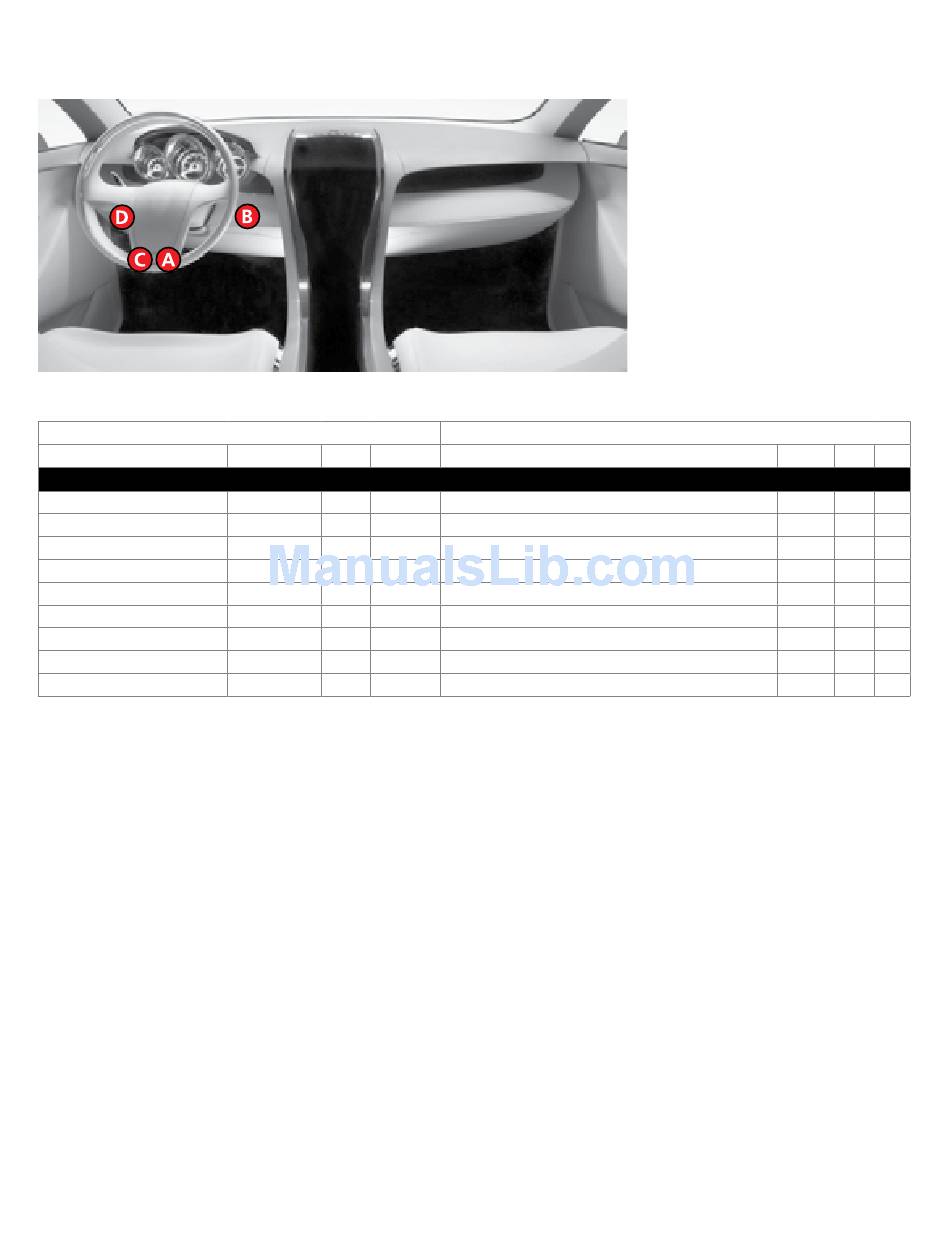

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Toyota Corolla (Smart Key) 2014-2016
SLP
PTS
HS CAN High
HS CAN Low
12V
BTX
BRX
Parking Lights
Autolight
19
Color Pin Polarity
Green 4 (-)
Black 1 (-)
Red 6 Data
White 14 Data
Green 16 (+)
Empty 25 Data
Empty 26 Data
White 30 (-)
Violet 28 cut
Connector Information
Location
Steering lock under steering column.
PTS (Push-to-Start) switch.
OBDII.
OBDII.
OBDII.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Body ECU on dash fusebox. Middle connector.
Color Pins Ref.
Black 7 A
Black 10 B
Black 16 C
Black 16 C
Black 16 C
White 30 D
White 30 D
White 30 D
White 30 D
DS4+ TL6
