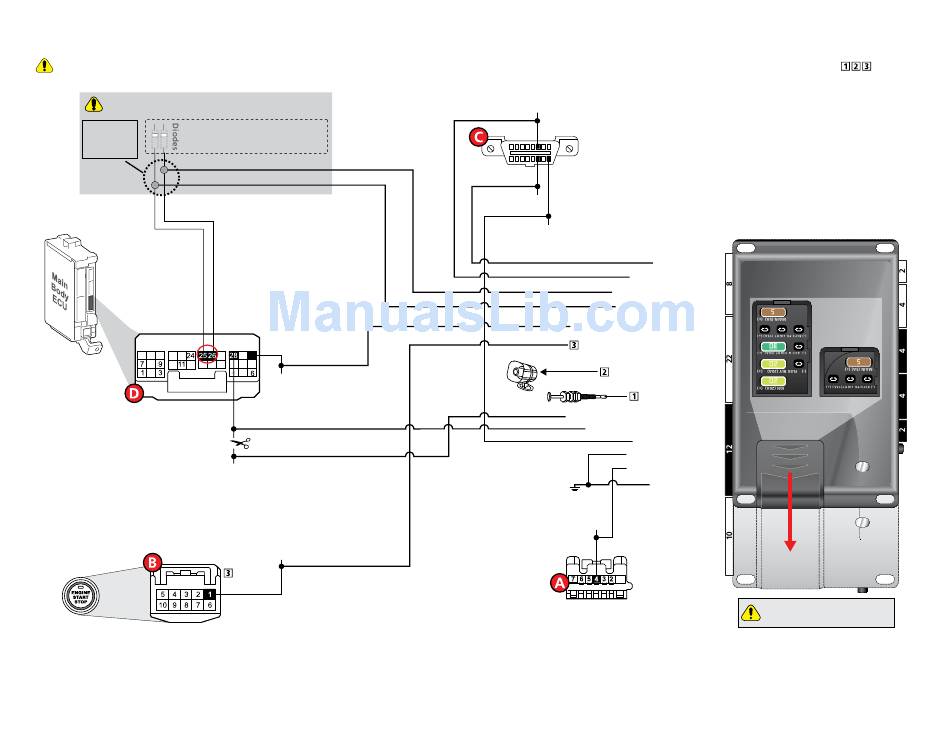

Type 5 - Directed DS4+ Installation Manual

Type 5

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
Solder onto a diode, cut away the unneeded
portion, and then insert into empty pin as shown.
Solder the
This part can be removed because
wire to secure
only the metal pin is needed to
it on the metal
secure the contact in the empty pin.
pin.
BTX:
Empty, pin 25
19 20 21 22 23
8 10 12 13 14 15
2
Body ECU
(White connector
at dash fuse box)
Black
Connector
Push-To-Start
(Black connector at PTS switch)
18
BRX:
Empty, pin 26
(-) Parking Lights:
White, pin 30
27 29 30
16 17 18
5
(-) Autolights: Violet, pin 28
Cut
(-) PTS: Black,
pin 1
HS CAN High: Red, pin 6
Diagnostic Connector OBDII
1 8
(connector side view)
9 16
HS CAN Low:
White, pin 14
(+) 12V:
Green, pin 16
Immo. Data 2: Orange/Black: 7
Immo. Data 1: Yellow/Black: 8
(-) Parking Lights Output: Lt.Green/Black: 1
(-) Push-to-Start Output: Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren Hood Pin
Autolight Interrupt (veh. side): Blue/White: 1
Autolight Interrupt (conn. side): Blue: 3
(-) Ground: Lt.Green/Red: 7
(-) SLP:
Green, pin 4
Steering Lock
(Black connector under steering column)
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(+) 12V Input : Red: 6 &12
(-) SLP Output: Lt. Green: 8
(-) Ground: Black: 10
Slide
to open
It is important to check that the
fuses are positioned correctly.
© 2017-10-03 Directed. All rights reserved.
).
