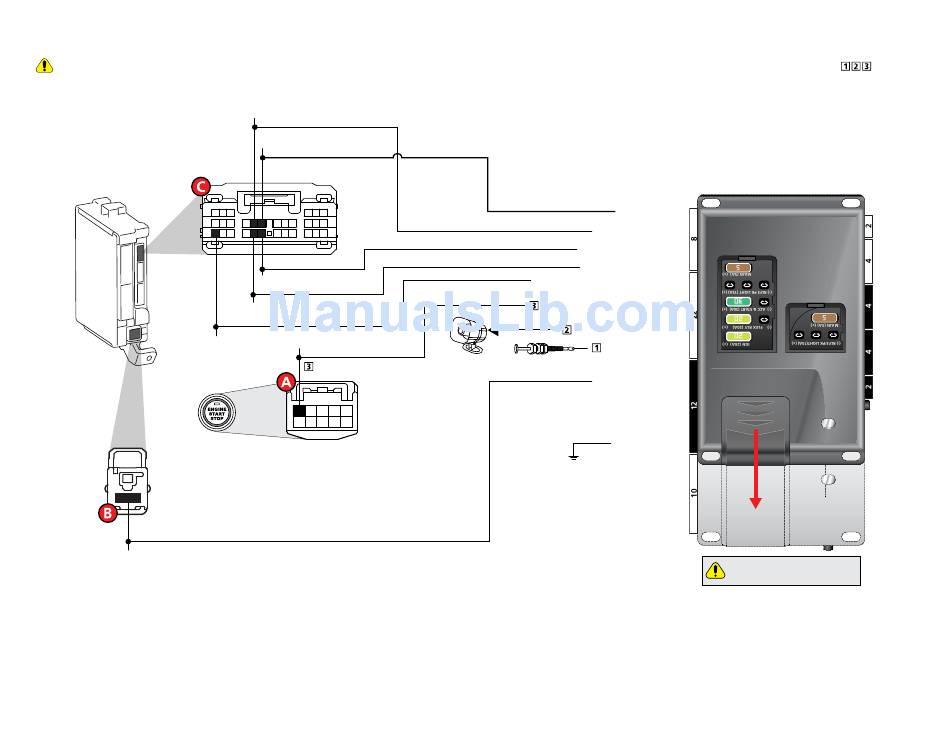

Type 9 - Directed DS4+ Installation Manual

Type 9

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
(White 30-pin connector)
6
18
30
Main Body
ECU
(Back)
Body ECU
(white conn.)
1
(+) 12V:
White, pin 1
27
Body ECU
HS CAN High:
Lt. Blue, pin 14
HS CAN Low:
White , pin 13
5 4 3 2 1
17 16 15 14 13 12 11 10 9 8 7
29 28 27 26 25 24 23 22 21 2019
BRX: Violet, Pin 25
BTX: Green, Pin 26
(-) Parking Lights:
Yellow, Pin 30
(-) Push-To-Start:
White, pin 5
5 4
3 2 1
10 9 8 7 6
Push-To-Start
(Black connector at PTS switch)
HS CAN Low: Tan: 1
HS CAN High: Tan/Black: 2
Immo Data 2: Orange/Black: 7
Immo Data 1: Yellow/Black: 8
(-) Parking Lights Output: Lt. Green/Black: 1
(-) Push-to-Start Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
(-) Hood Input: Gray: 21
Hood Pin
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
).
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ TL6
