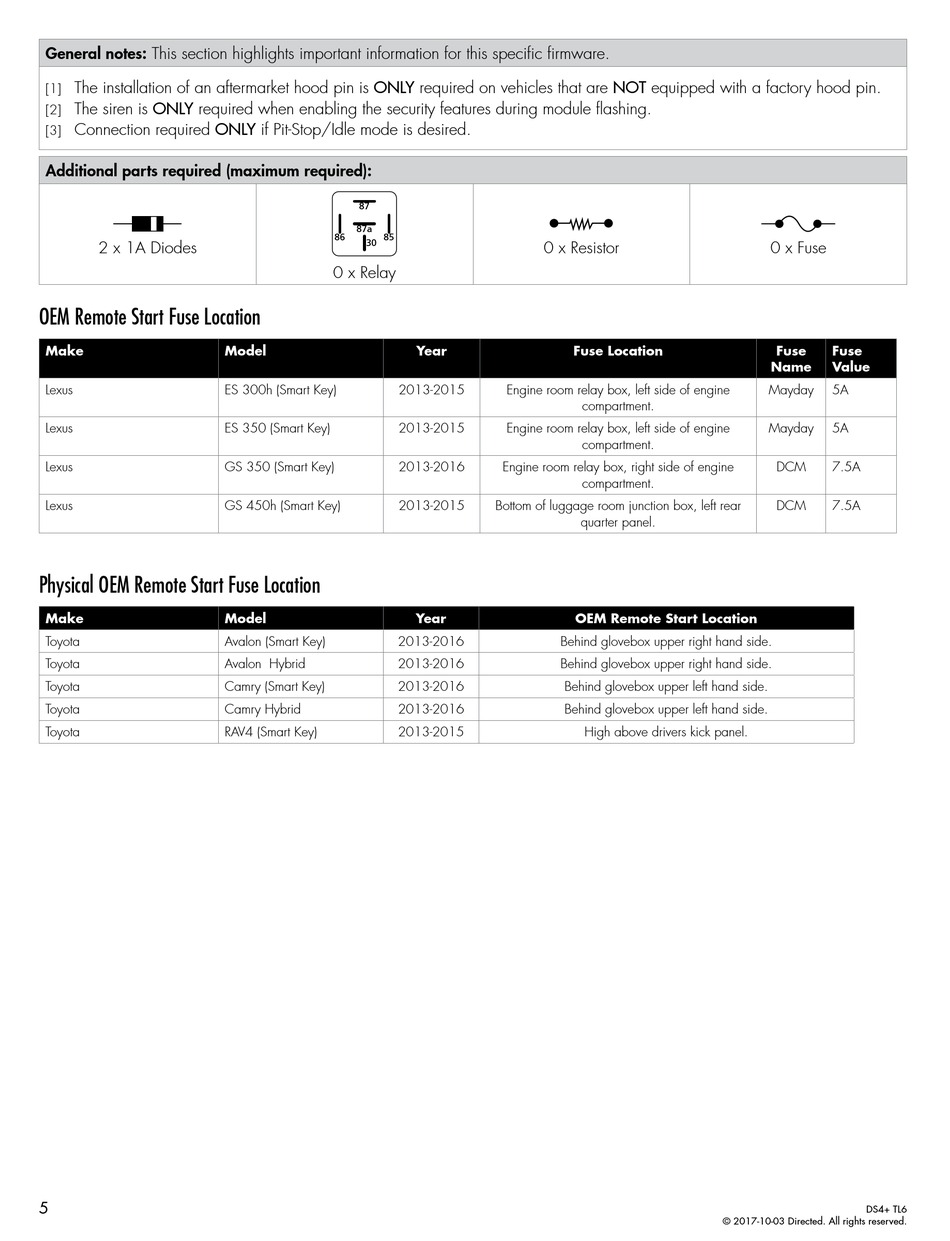

General notes: This section highlights important information for this specific firmware.
The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[1]
The siren is ONLY required when enabling the security features during module flashing.
[2]
Connection required ONLY if Pit-Stop/Idle mode is desired.
[3]
Additional parts required (maximum required):
Diode 6A
2 x 1A Diodes

OEM Remote Start Fuse Location

Make
Lexus
Lexus
Lexus
Lexus

Physical OEM Remote Start Fuse Location

Make
Toyota
Toyota
Toyota
Toyota
Toyota
5
87
87a
86 85
30
0 x Relay
Model
ES 300h (Smart Key) 2013-2015
ES 350 (Smart Key) 2013-2015
GS 350 (Smart Key) 2013-2016
GS 450h (Smart Key) 2013-2015
Model
Avalon (Smart Key) 2013-2016
Avalon Hybrid 2013-2016
Camry (Smart Key) 2013-2016
Camry Hybrid 2013-2016
RAV4 (Smart Key) 2013-2015
Resistor 100Ω
0 x Resistor
Year Fuse Location
Engine room relay box, left side of engine
compartment.
Engine room relay box, left side of engine
compartment.
Engine room relay box, right side of engine
compartment.
Bottom of luggage room junction box, left rear
quarter panel.
Year OEM Remote Start Location
Behind glovebox upper right hand side.
Behind glovebox upper right hand side.
Behind glovebox upper left hand side.
Behind glovebox upper left hand side.
High above drivers kick panel.
Fuse 7.5A
0 x Fuse
Fuse Fuse
Name Value
Mayday 5A
Mayday 5A
DCM 7.5A
DCM 7.5A
DS4+ TL6
