IP Core Generation

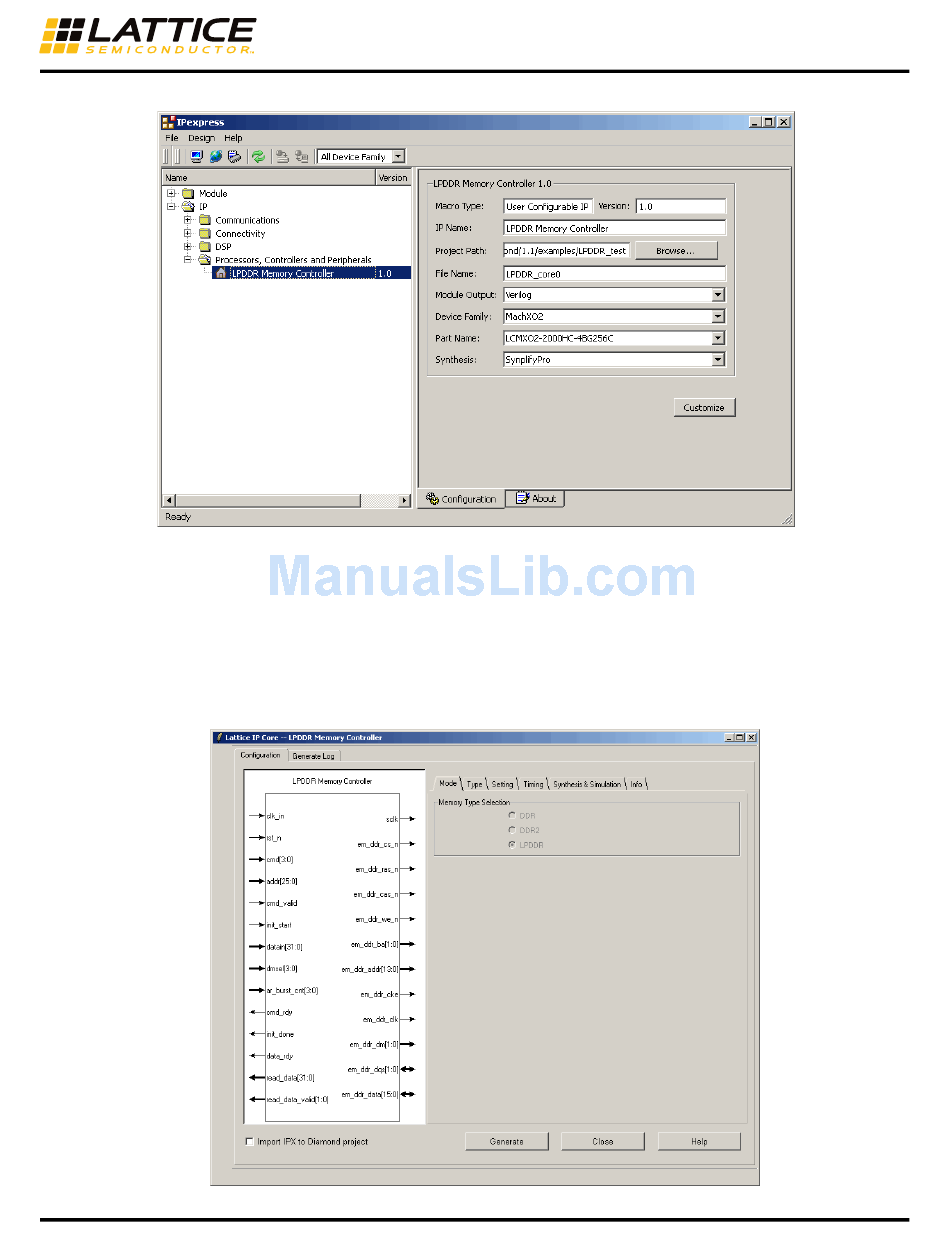

Figure 4-1. IPexpress Dialog Box
Note that if the IPexpress tool is called from within an existing project, Project Path, Design Entry, Device Family
and Part Name default to the specified project parameters. Refer to the IPexpress tool online help for further infor-
mation.
To create a custom configuration, the user clicks the Customize button in the IPexpress tool dialog box to display
the LPDDR SDRAM IP core Configuration GUI, as shown in Figure 4-2. From this dialog box, the user can select
the IP parameter options specific to their application
Figure 4-2. LPDDR SDRAM IP Configuration GUI
