Working basis

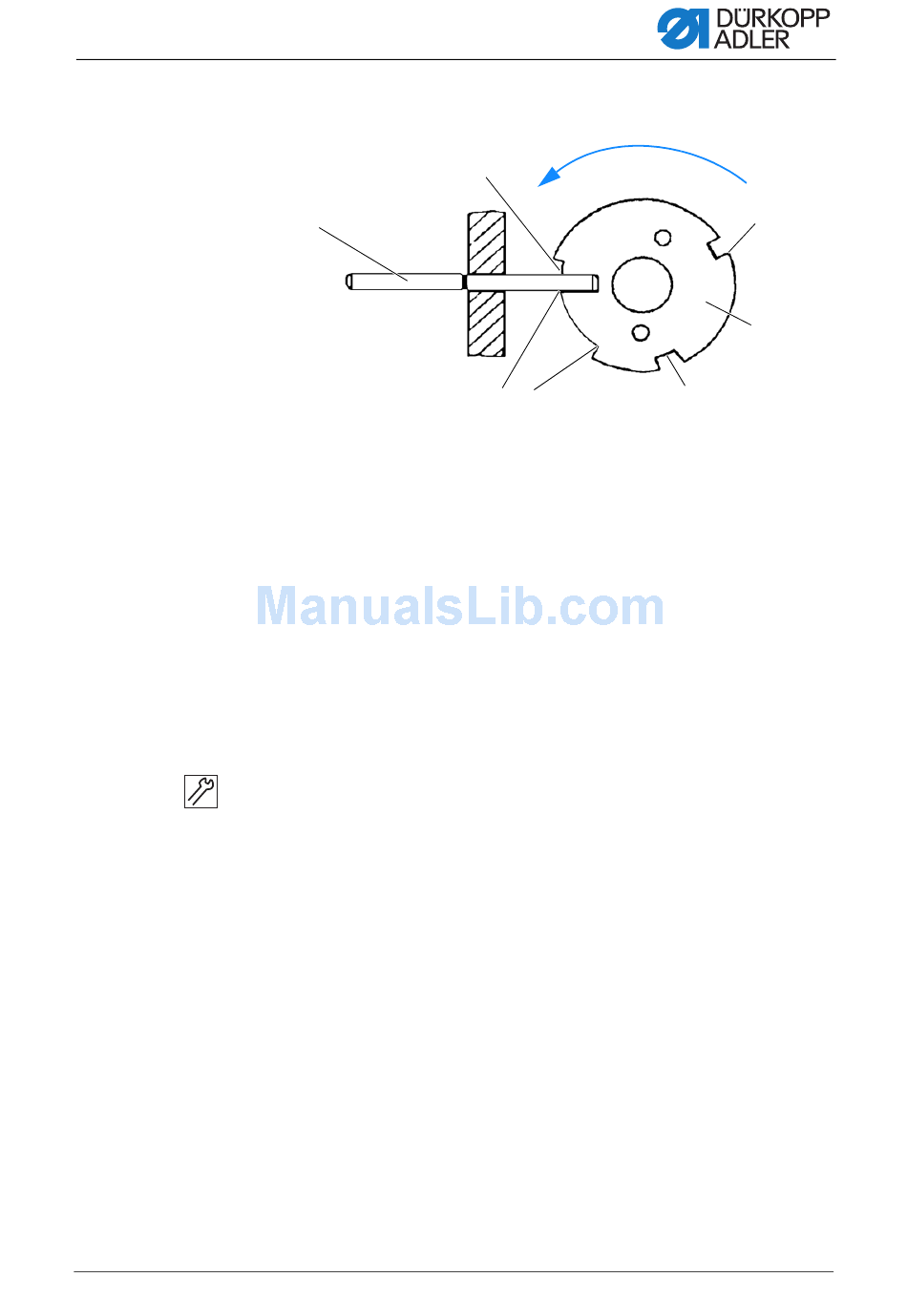

Fig. 4: Locking the machine in place (2)
(1) - Locking peg
(4) - Position F
(5) - Position A
(6) - Position E
The machine head is equipped with adjustment aids that allow for a quick
and accurate setting of all elements.
These adjustment aids include the handwheel (3), which is labeled with
the letters A, B, D, E and F, and a built-in adjusting disk (8) that has five
different holes.
You use a locking peg (1) to set the individual setting positions. The locking
peg (1) is included with the machine as a standard tool in the accessory
pack.
Locking the machine in place
To lock the machine in place:
1. Turn the handwheel (3) to the position described for the setting.
2. Insert the locking peg (1) into the locking opening (2).
3. Turn the handwheel (3) slightly forward or backward until the peg
Service Instructions 195 - 00.0 - 12/2017
①
engages in the corresponding hole.
Position A of the adjusting disk (8) has the deepest slot.
Positions B, D, E and F have the same depths.
Rotational direction of the machine
R
④
⑤⑥
(7) - Position D
(8) - Adjusting disk
(9) - Position B
⑨
⑧
⑦
17
