Design and function
Access control
5.2.4

Menus and sub-menus on the machine control

5.2.4.1 Direct menus (direct access to parameters)
Functions, parameters and their values can be accessed directly, e.g. can be selected by pressing a
button once.
5.2.4.2 Expert menu
The Expert menu has adjustable parameters stored that don't require regular setting. The number of
parameters shown may be limited, e.g. if a function is deactivated.
Display
5.3 Access control
To prevent people from unauthorised or inadvertent changing of the welding parameters at the machine,
entering values on the control can be blocked by using the key switch.
Key position 1 =
Key position 0 =
38
ENTER
4s
Setting/selection
WIRE RETURN speed
Setting range 1 m/min to 15 m/min
Tapping time
Setting range: 0.0 s to 0.6 s (0.1 s increments).
Gas post-flow time
Setting range: 0.0 s to 40.0 s (0.1 s increments).
Wire stop with manual latched operation
•
on = wire stops in the 3rd cycle
•
off = wire stops in the 4th cycle (ex works)
All parameters can be set
The following controls/functions cannot be changed:
•
Push-button for switching the wire feed speed display
•
Parameter value " hot wire current " can be displayed but not changed
•
Parameter value "forward/backward motion" can be displayed but not
changed
•
Parameter values in the functional sequence can be displayed but not
changed

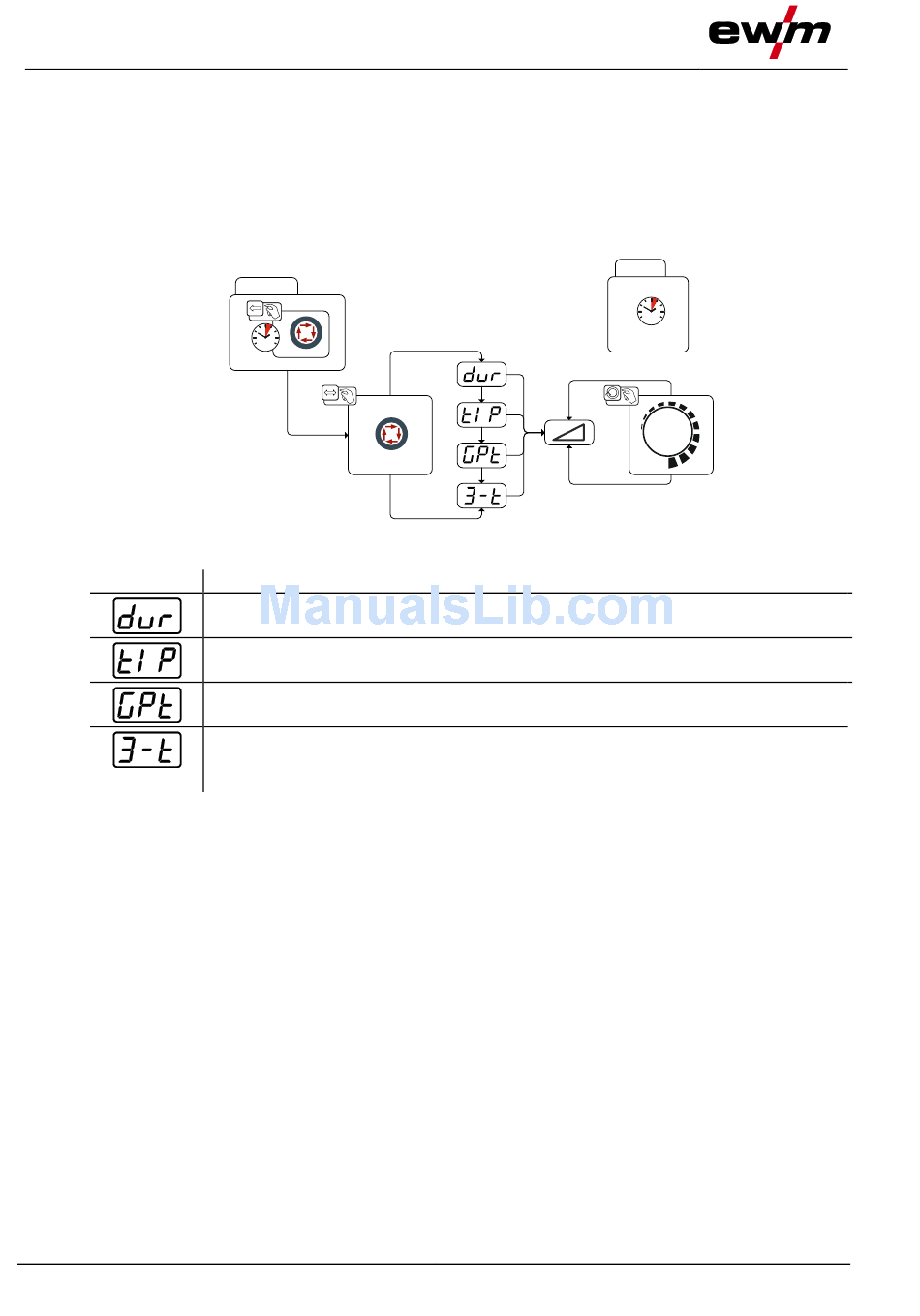

Figure 5-27
EXIT
4s
