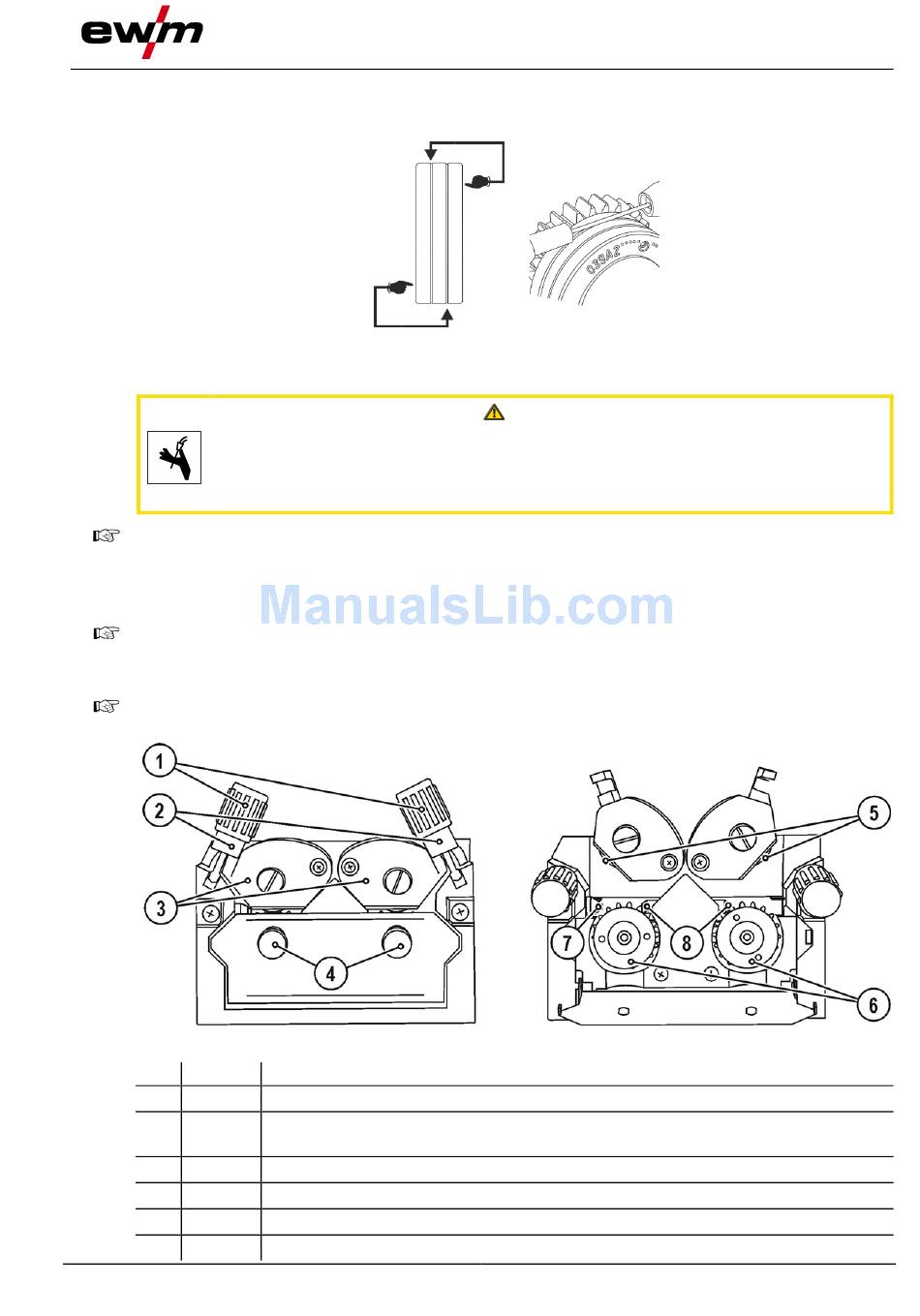

Inching The Wire Electrode - EWM TIGSPEED OSCILLATION DRIVE 45 COLDWIRE Operating Instructions Manual

•
Slide new drive rollers into place so that the diameter of the wire used is visible on the drive roller.
•
Screw the drive rollers in place with knurled screws.

5.1.11.4 Inching the wire electrode

Risk of injury due to welding wire escaping from the welding torch!
The welding wire can escape from the welding torch at high speed and cause bodily
injury including injuries to the face and eyes!
•
Never direct the welding torch towards your own body or towards other persons!
Incorrect contact pressure will cause extensive wear of the wire feed rollers!
•
With the adjusting nuts of the pressure units set the contact pressure so that the wire
electrode is conveyed but will still slip through if the wire spool jams.
•
Set the contact pressure of the front rollers (in wire feed direction) to a higher value!
The inching speed is infinitely adjustable by simultaneously pressing the wire inching push-
button and turning the wire speed rotary knob. The left display shows the wire feed speed
selected, the right display shows the current motor current of the wire feed mechanism.
The push-button of the welding torch can be used as well to inch and reverse inch the
wire. > see 5.2 chapter
Item Symbol
1
2
3
4
5
6
099-000181-EW501
30.06.2017
Description 0
Adjusting nut
Feed roll tensioner
Fixing the clamping unit and setting the pressure.
Clamping unit
Knurled screw
Pressure roller
Drive roller
Design and function
Figure 5-13
CAUTION
Figure 5-14
Transport and installation
25
