Machine description – quick overview
4
4.1 Front view
Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
099-000181-EW501
30.06.2017
Machine description – quick overview
Description 0
Transport bar
Carrying handle
Protective cap
Cover for the wire feed mechanism and other operating elements.
Depending on the machine series, additional stickers with information on the
replacement parts and JOB lists will be located on the inside.
Wire spool inspection window
Check wire supply
Slide latch, lock for the protective cap
Machine feet
Torch holder
Protective cap > see 5.1.1 chapter
Key switch for protection against unauthorised use > see 5.3 chapter
1 ---------- changes possible,G front drive-4x-EX
0 ---------- changes not possible.
Machine control > see 4.3 chapter
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply

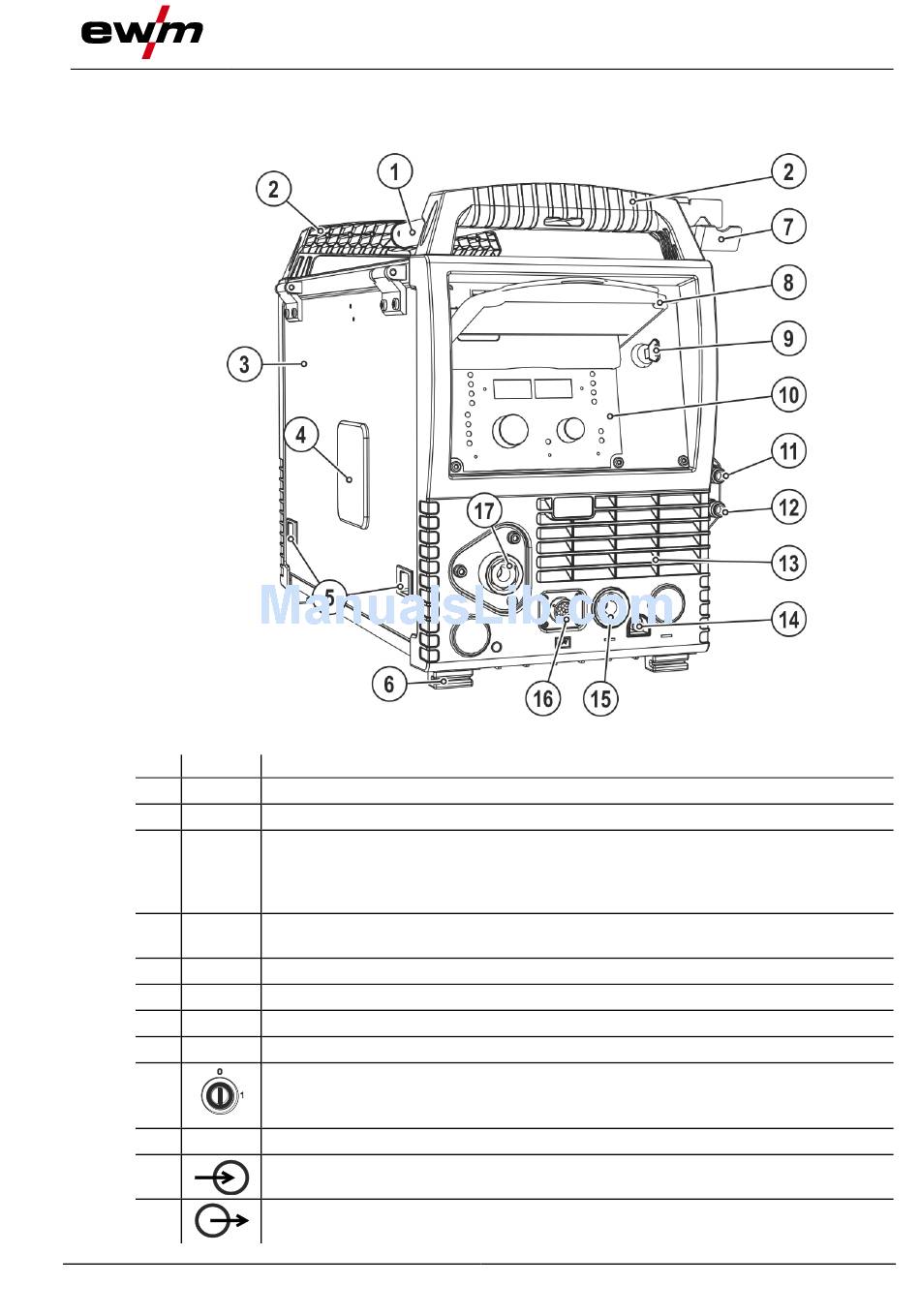

Figure 4-1
