Mains Connection - EWM TIGSPEED OSCILLATION DRIVE 45 COLDWIRE Operating Instructions Manual

Control cable, cold wire (5-pole signal input)
Control cable, cold wire (5-pole signal input)
hotwire
Supply voltage connection (1-phase)
1~
AC
Supply voltage connection (3-phase)
3~
AC
Welding torch control cable connection (12-pole)
Welding torch control cable (12-pole)
Wire feeding
5.1.7

Mains connection

Hazards caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
•
Only operate machine using a socket that has correctly fitted protective earth.
•
The mains voltage indicated on the rating plate must match the supply voltage.
•
If a new mains plug must be fitted, only an electrician may do so as per the relevant
national legislation or regulations.
•
Mains plug, socket and lead must be checked by an electrician on a regular basis.
•
When operating the generator, always ensure it is earthed as stipulated in the operating
instructions. The network created must be suitable for operating machines according to
protection class I.

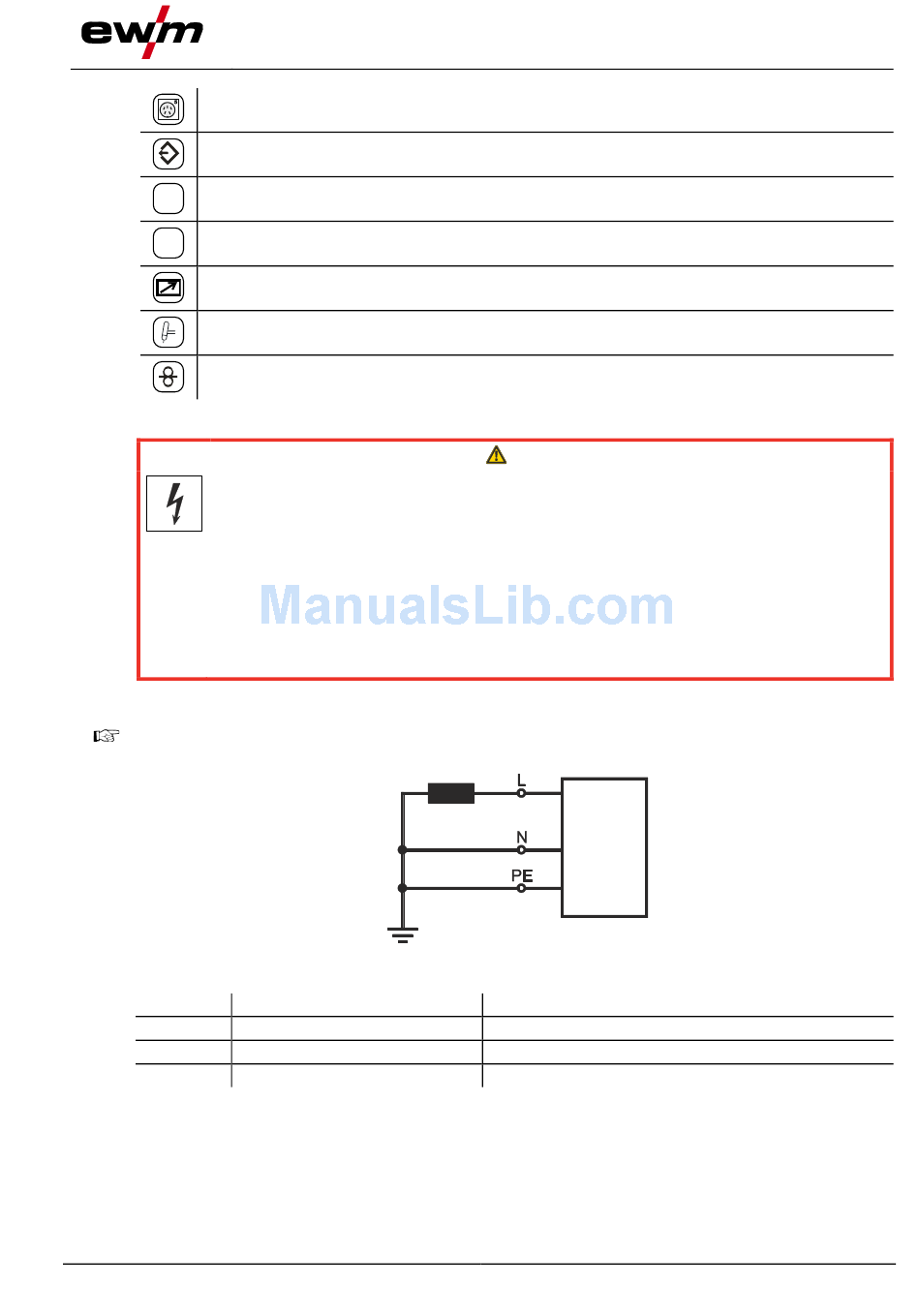

5.1.7.1 Mains configuration
The machine may only be connected to a one-phase system with two conductors and an earthed
neutral conductor.
Legend
Item Designation
L Outer conductor
N Neutral conductor
PE Protective conductor
•
Insert mains plug of the switched-off machine into the appropriate socket.
099-000181-EW501
30.06.2017
Design and function
DANGER
Figure 5-7
Colour code
brown
blue
green-yellow
Transport and installation
19
