Design and function
Configuring the welding machine for mechanical arc fusion welding
5.2.3

Operating modes (functional sequences)

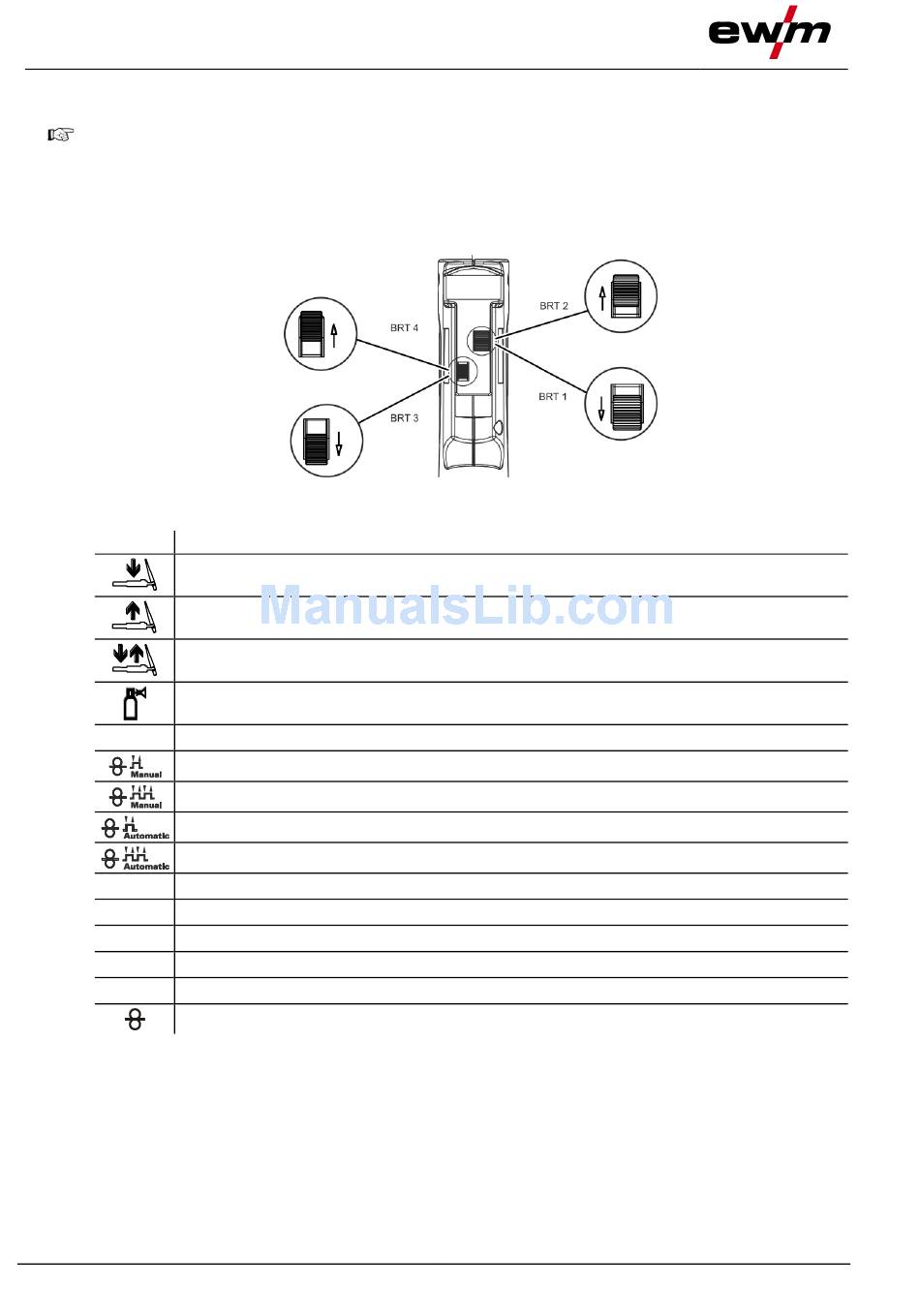

Torch trigger 1 (BRT 1) switches the welding current on or off.
Torch trigger 2 (BRT 2) switches the wire feeding on or off.
In addition, you can inch the wire by pressing torch trigger 2 (BRT 2) or reverse inch the wire by
tapping it.
You can choose between four operating modes (see the following functional sequences). Wire
feeding is infinitely adjustable by means of torch triggers 3 and 4 (BRT 3 and BRT 4).
5.2.3.1 Explanation of symbols
Symbol Meaning
Press torch trigger
Release torch trigger
Tap torch trigger (quick pressing and releasing)
Shielding gas flowing
Welding performance
I
Non-latched, manual
Latched, manual
Non-latched automatic
Latched automatic
t Time
P Start program
START
P Main program
A
P Reduced main program
B
P End program
END
Wire feeding
32
Figure 5-21
