Welding torch holder

The item described in the following is part of the machine´s scope of delivery.
Item Symbol
1
2
3
4
•
Use the mounting screws to screw the torch holder onto the crossmember of the transport handle.
•
Insert the welding torch into the welding torch holder as shown.
099-000181-EW501
30.06.2017
Description 0
Crossmember of the transport handle
Torch holder
Fan-type lock washers
Fixing screws (x 4)
Design and function

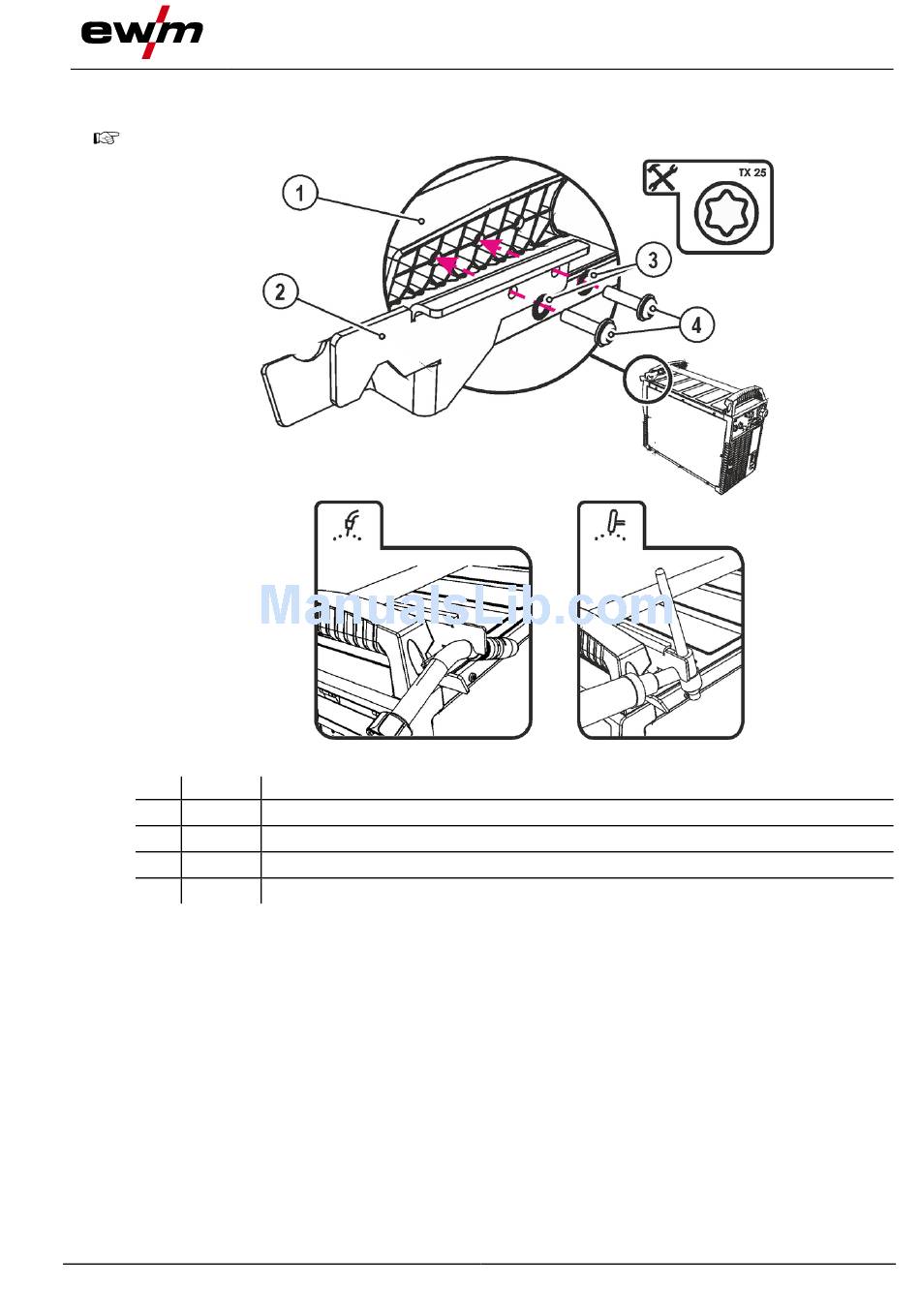

Figure 5-28
Welding torch holder
