5.1.11.1 Open the protective flap of the wire feeder

To perform the following steps, the protective flap of the wire feeder needs to be opened. Make
sure to close the protective flap again before starting to work.
•
Unlock and open protective flap.
5.1.11.2 Inserting the wire spool
Risk of injury due to incorrectly secured wire spool.
If the wire spool is not secured properly, it may come loose from the wire spool support
and fall to the ground, causing damage to the machine and injuries.
•
Make sure to correctly fasten the wire spool to the wire spool support.
•
Before you start working, always check the wire spool is securely fastened.
Standard D300 wire spool holder can be used. Adapters are required when using standardised
basket coils (DIN 8559) > see 9 chapter.
Item Symbol
1
2
•
Loosen knurled nut from spool holder.
•
Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
•
Fasten wire spool using knurled nut.
5.1.11.3 Changing the wire feed rollers
Unsatisfactory welding results due to faulty wire feeding! Wire feed rollers must be suitable for
the diameter of the wire and the material.
•
Check the roller label to verify that the rollers are suitable for the wire diameter.
Turn or change if necessary!
•
use V-groove rollers with for steel wires and other hard wires,
•
use U-groove rollers for aluminium wires and other soft, alloyed wires.
24
Description 0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
CAUTION

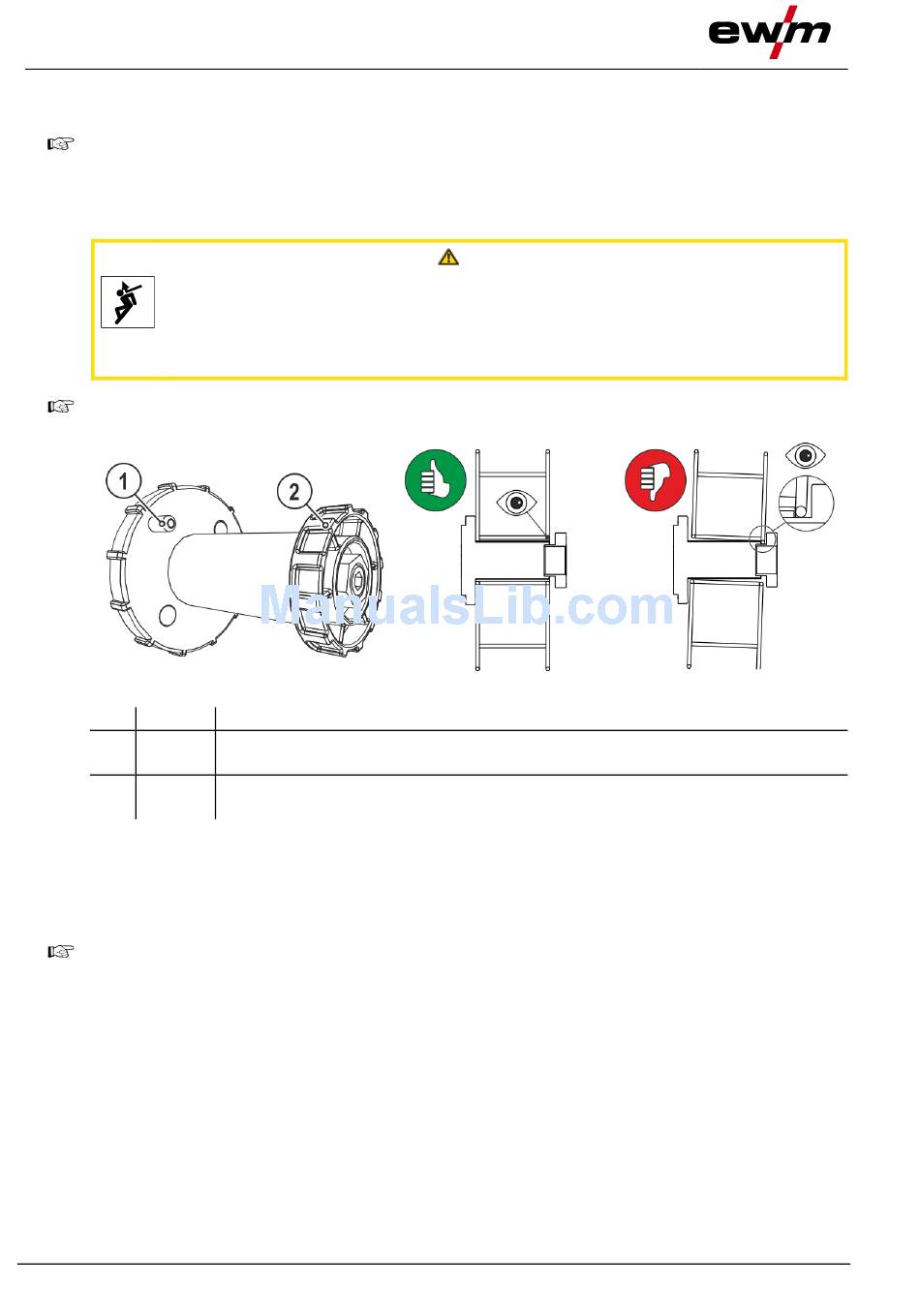

Figure 5-12
099-000181-EW501
30.06.2017
