Design and function

Transport and installation
Design and function
5
Risk of injury from electric shock!
Contact with live parts, e.g. welding current sockets, is potentially fatal!
•
Follow safety instructions on the opening pages of the operating instructions.
•
Commissioning may only be carried out by persons who have the relevant expertise of
working with arc welding machines!
•
Connection and welding leads (e.g. electrode holder, welding torch, workpiece lead,
interfaces) may only be connected when the machine is switched off!
5.1 Transport and installation
Risk of accident due to improper transport of machines that must not be lifted!
Do not lift or suspend the machine! The machine can drop and cause injuries! The
handles, straps or brackets are suitable for transport by hand only!
•
The machine must not be suspended or lifted using a crane.
5.1.1 Protective flap, welding machine control
Item Symbol
1
2
3
•
Push the right-hand bracket of the protective cap to the right and remove the protective cap.
5.1.2 Ambient conditions
T he machine must not be operated in the open air and must only be set up and operated on a
suitable, stable and level base!
•
The operator must ensure that the ground is non-slip and level, and provide sufficient lighting
for the place of work.
•
Safe operation of the machine must be guaranteed at all times.
Unusually high quantities of dust, acid, corrosive gases or substances may damage the
equipment.
•
Avoid high volumes of smoke, vapour, oil vapour and grinding dust!
•
Avoid ambient air containing salt (sea air)!
14
Description 0
Protective cap
Lid
Bracket, protective cap
WARNING
WARNING

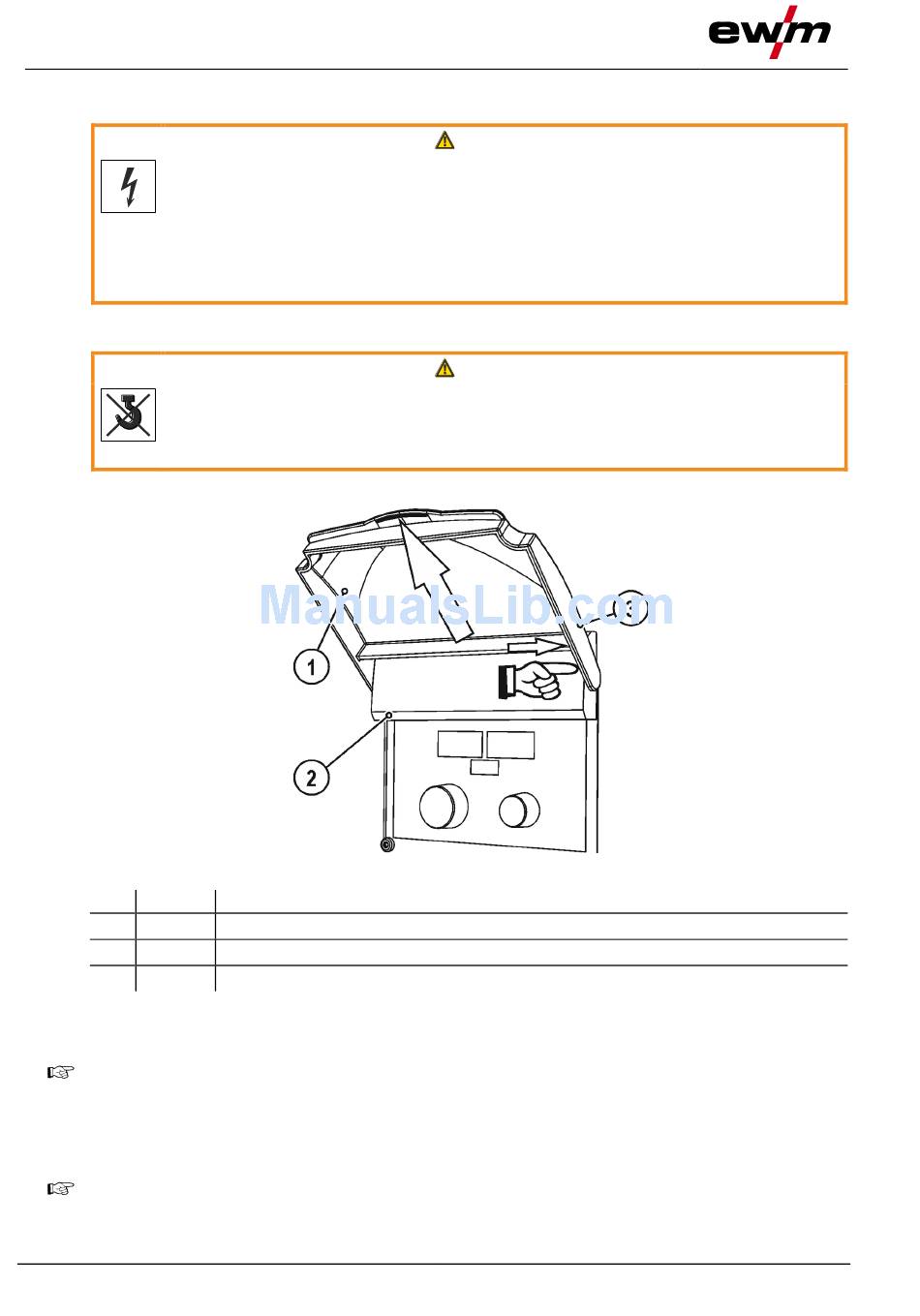

Figure 5-1
099-000181-EW501
