Control Cable Pin Configuration - EWM TIGSPEED OSCILLATION DRIVE 45 COLDWIRE Operating Instructions Manual

Item Symbol
6
7
8
•
Extend and lay out the torch hose package.
•
Insert the wire feed plug of the welding torch into the wire electrode connector and lock by turning to
the right.
•
Push the cable plug for the welding current (TIG) into the connector socket (TIG) and lock by turning
to the right.
•
Insert shielding gas rapid-action closure nipple in the quick connect coupling and engage.
•
Insert welding torch control lead into the 12-pole connection socket and secure with the crown nut.
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).

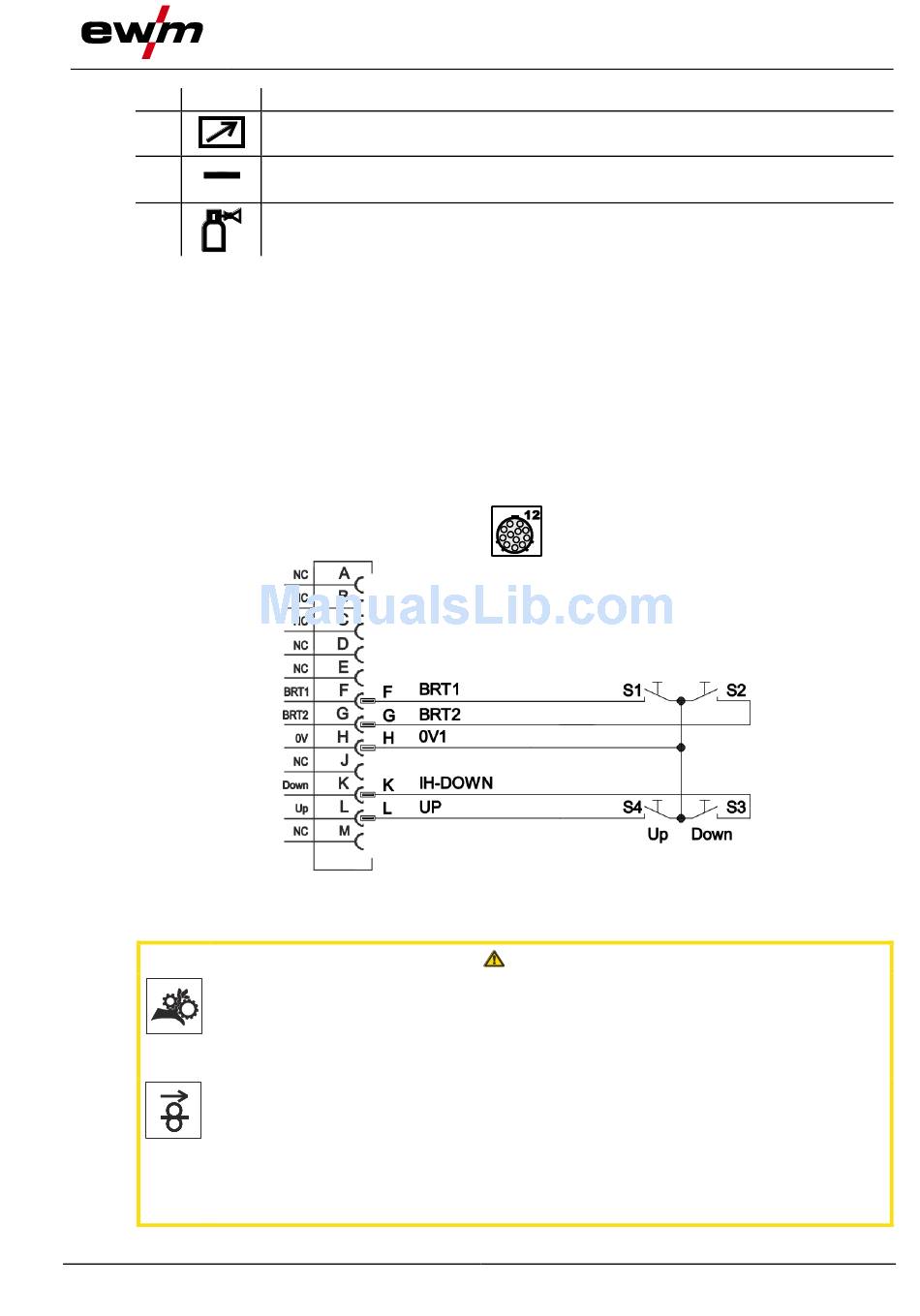

5.1.10.1 Control cable pin configuration

5.1.11 Wire feed
Risk of injury due to moving parts!
The wire feeders are equipped with moving parts, which can trap hands, hair, clothing
or tools and thus injure persons!
•
Do not reach into rotating or moving parts or drive components!
•
Keep casing covers or protective caps closed during operation!
Risk of injury due to welding wire escaping in an unpredictable manner!
Welding wire can be conveyed at very high speeds and, if conveyed incorrectly, may
escape in an uncontrolled manner and injure persons!
•
Before mains connection, set up the complete wire guide system from the wire spool to the
welding torch!
•
Check wire guide at regular intervals!
•
Keep all casing covers or protective caps closed during operation!
099-000181-EW501
30.06.2017
Description 0
Connection socket (12-pole)
Welding torch control lead
Connection socket (TIG)
Welding current, minus potential
Quick connect coupling
Shielding gas
Design and function
Figure 5-11
CAUTION
Transport and installation
23
