5.1.9

Intermediate hose package connection

With this machine series, the earth cable on the intermediate hose package must not be
connected to the welding machine or wire feeder! Remove the earth cable or push back into the
hose package!
Item Symbol
1
2
3
4
5
6
7
•
Push the cable socket for the welding current (TIG) onto the connector plug (TIG) and lock by turnng
to the right.
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
•
Insert the control cable plug into the connection socket (5-pole) and secure (the plug can only be
inserted into the connection socket in one position).
•
Screw the crown nut on the shielding gas lead gastight to the connecting thread (G¼").
099-000181-EW501
30.06.2017
Description 0
Power source
Intermediate hose package
Connector plug (TIG)
Welding current, minus potential
Connector plug, 5-pole
Control lead
Connecting nipple G¼, shielding gas connection
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Design and function

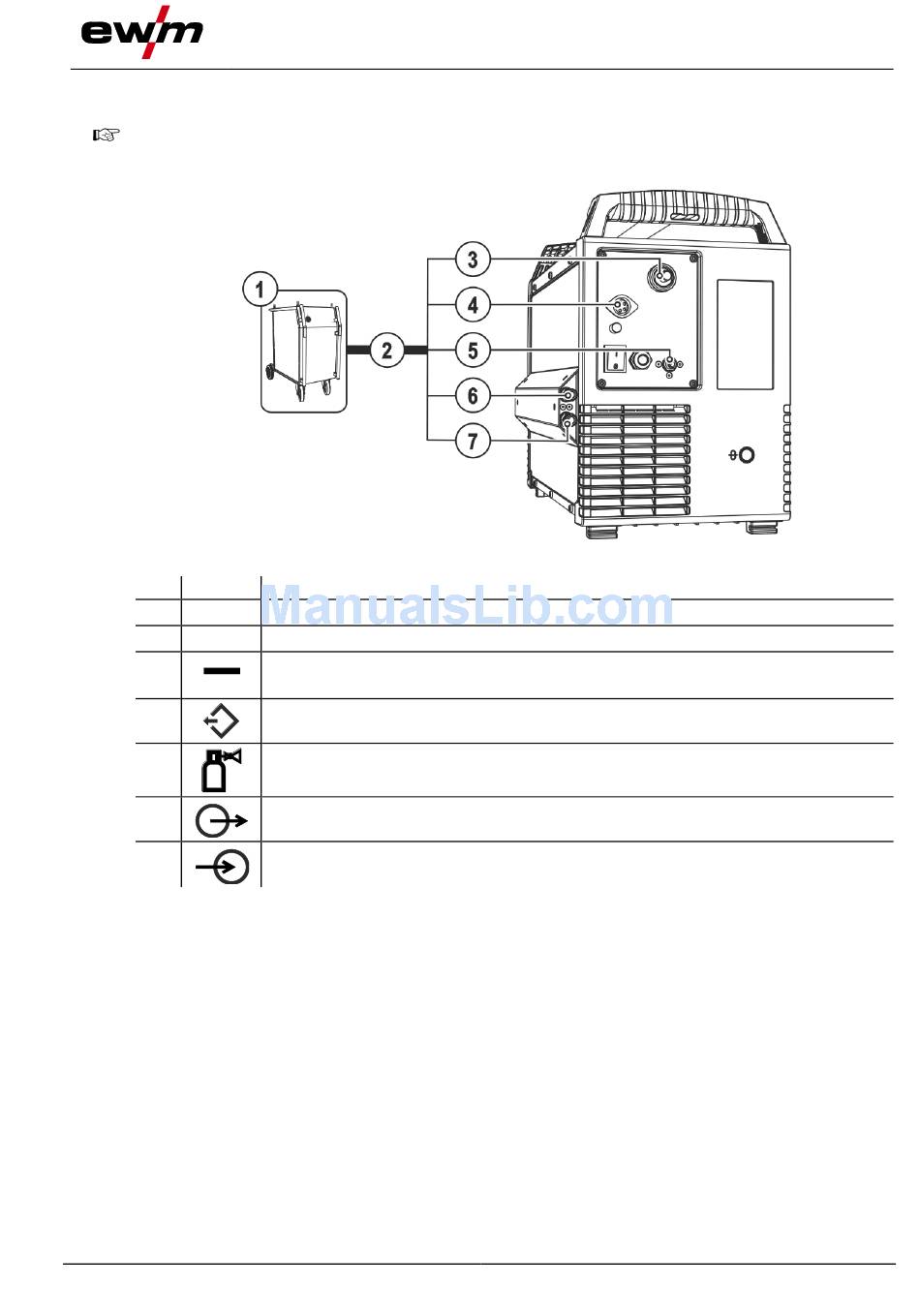

Figure 5-8
Transport and installation
21
