Intermediate Hose Package Connection - EWM Drive XQ IC D200 Operating Instructions Manual

5.2

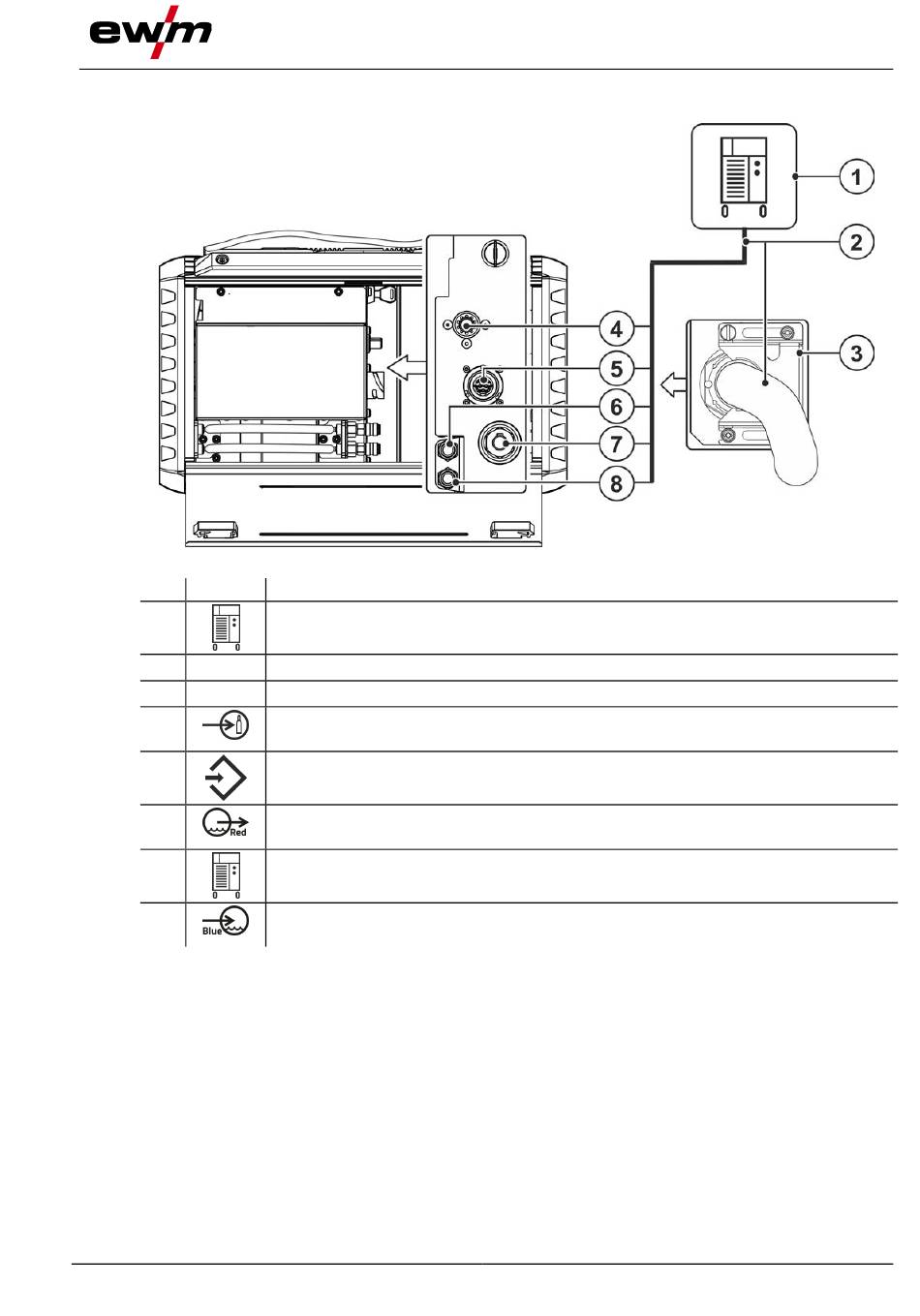

Intermediate hose package connection

Item Symbol
1
2
3
4
5
6
7
8
• Secure hose package end with the strain relief > see 5.2.1 chapter.
• Push the welding current cable socket onto the "welding current connecting plug" and lock by turning
to the right.
• Screw the gas hose connection to the shielding gas connection (inlet) on the machine gas-tight.
• Insert the control cable plug into the connection socket (14-pole) and secure with crown nut (the plug
can only be inserted into the connection socket in one position).
Where applicable:
• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
099-005637-EW501
27.04.2021
Description 0
Power source
Intermediate hose package
Intermediate hose package strain relief > see 5.2.1 chapter
Connection thread - G¼"
Shielding gas connection (inlet)
14-pole connection socket
Wire feeder control cable
Quick connect coupling (red)
coolant return
Power source welding current connector plug
Welding current connection between power source and wire feeder
Quick connect coupling (blue)
coolant supply
Design and function
Intermediate hose package connection
Figure 5-2
21
